Brake Control System (Service Information)
›
Brake Actuator
›
Components
›
Illustration
Brake Actuator: Components: Illustration

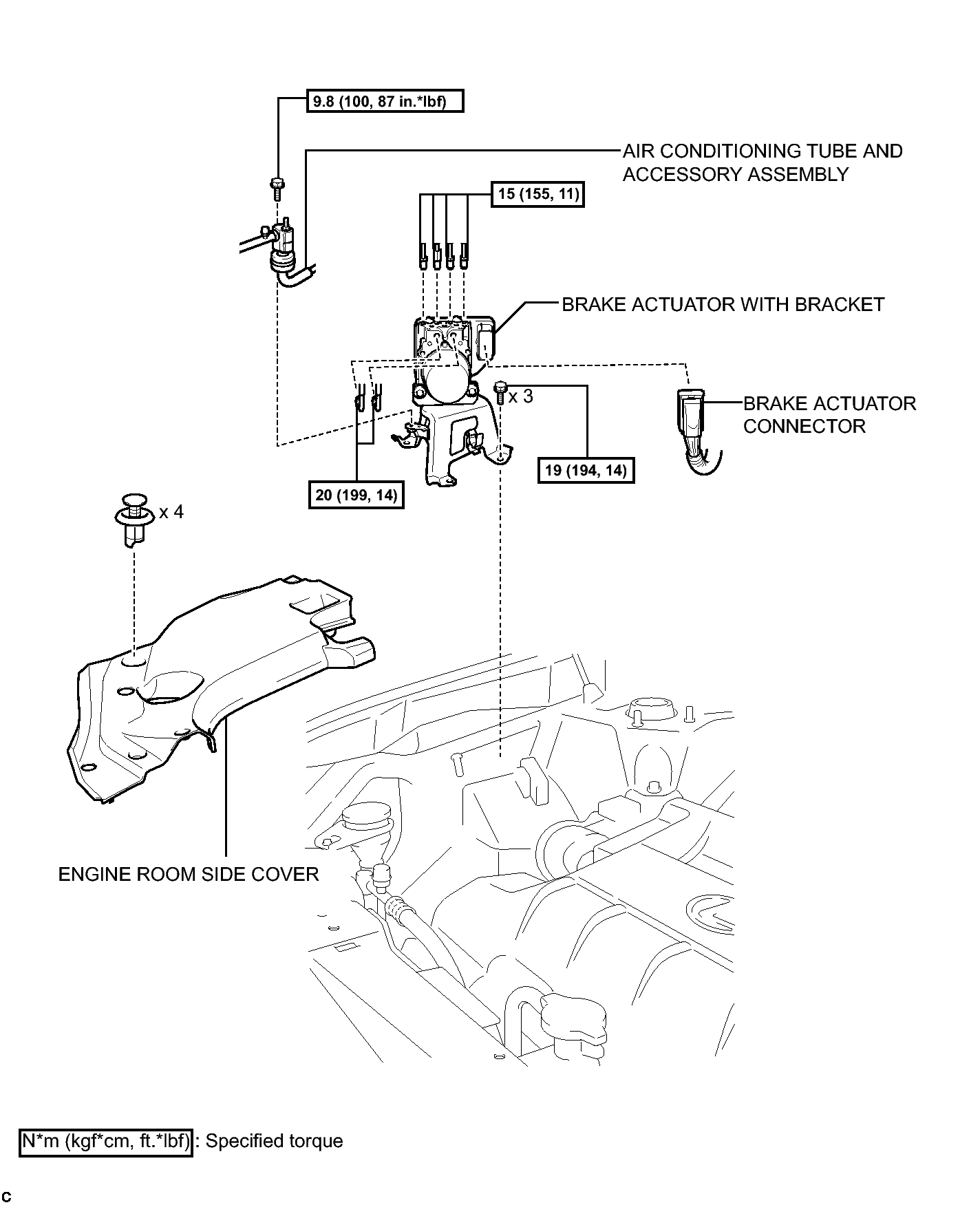

Fig 1: Identifying Brake Actuator Replacement Components With Torque Specifications (1 of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

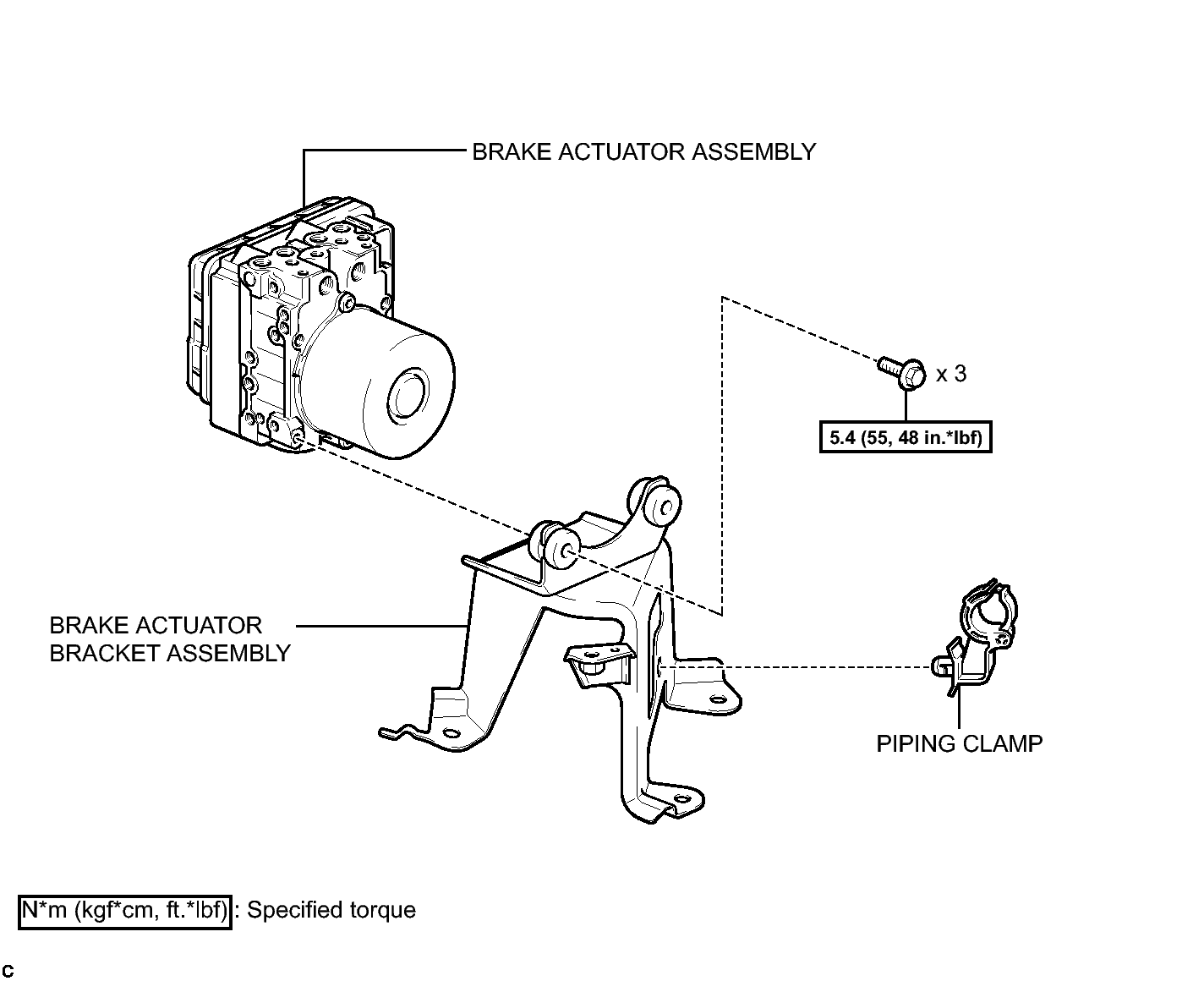

Fig 1: Identifying Brake Actuator Replacement Components With Torque Specifications (2 of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
