REAR SPEED SENSOR (For AWD): Components: Illustration

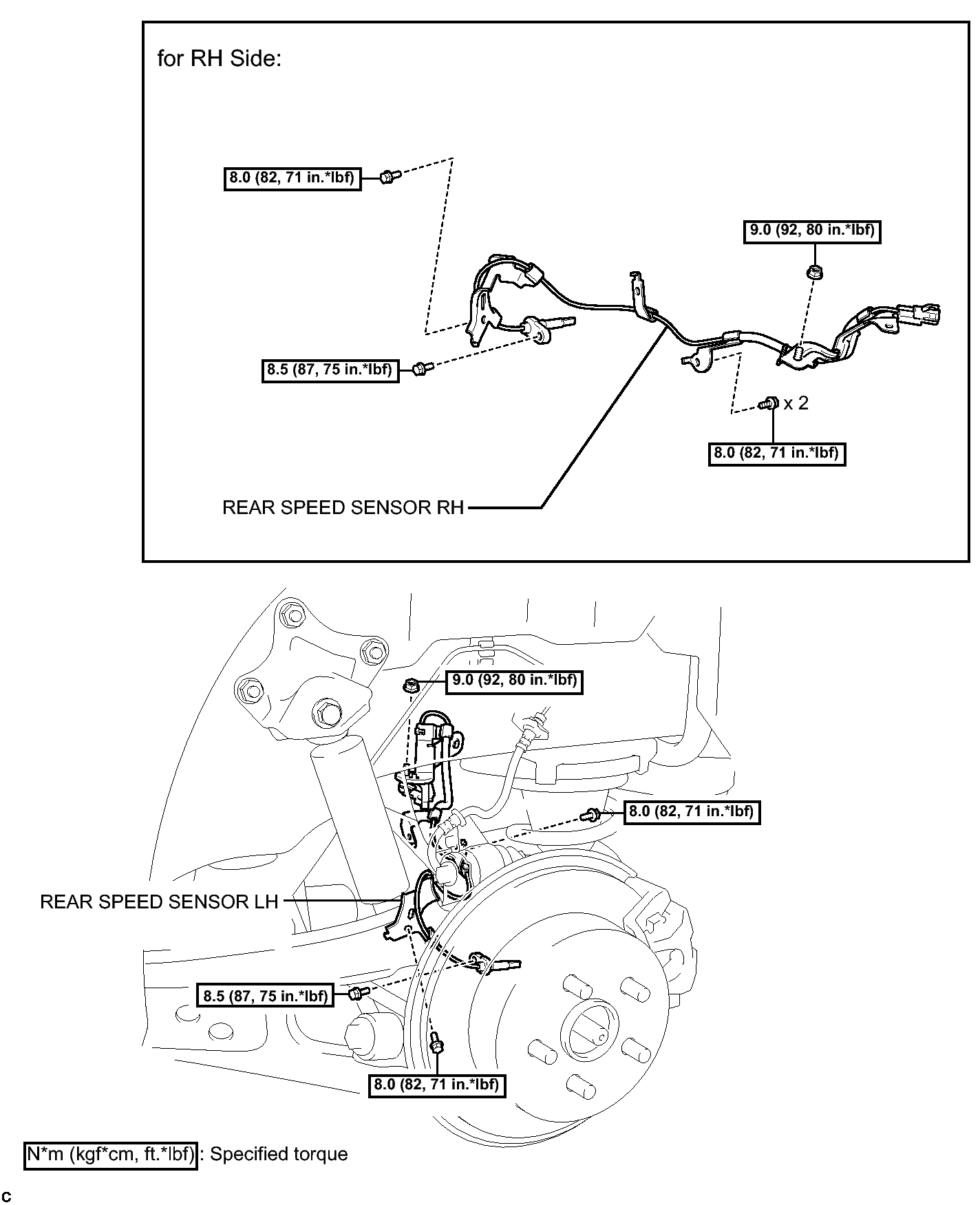

Fig 1: Identifying Rear Speed Sensor (For AWD) Replacement Components With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
