Occupant Detection Sensor: Components: Illustration

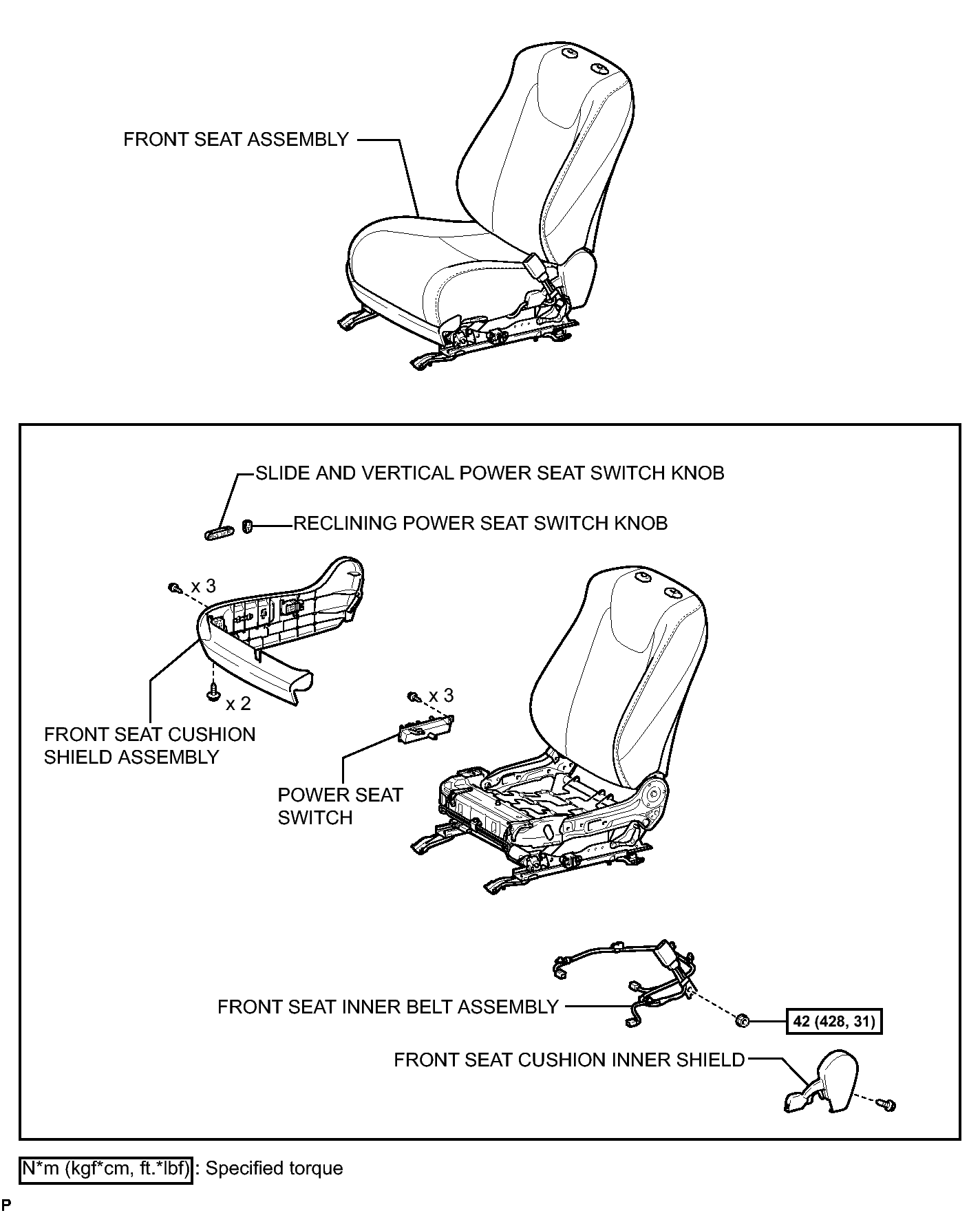

Fig 1: Identifying Occupant Detection Sensor Replacement Components With Torque Specifications (1 of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

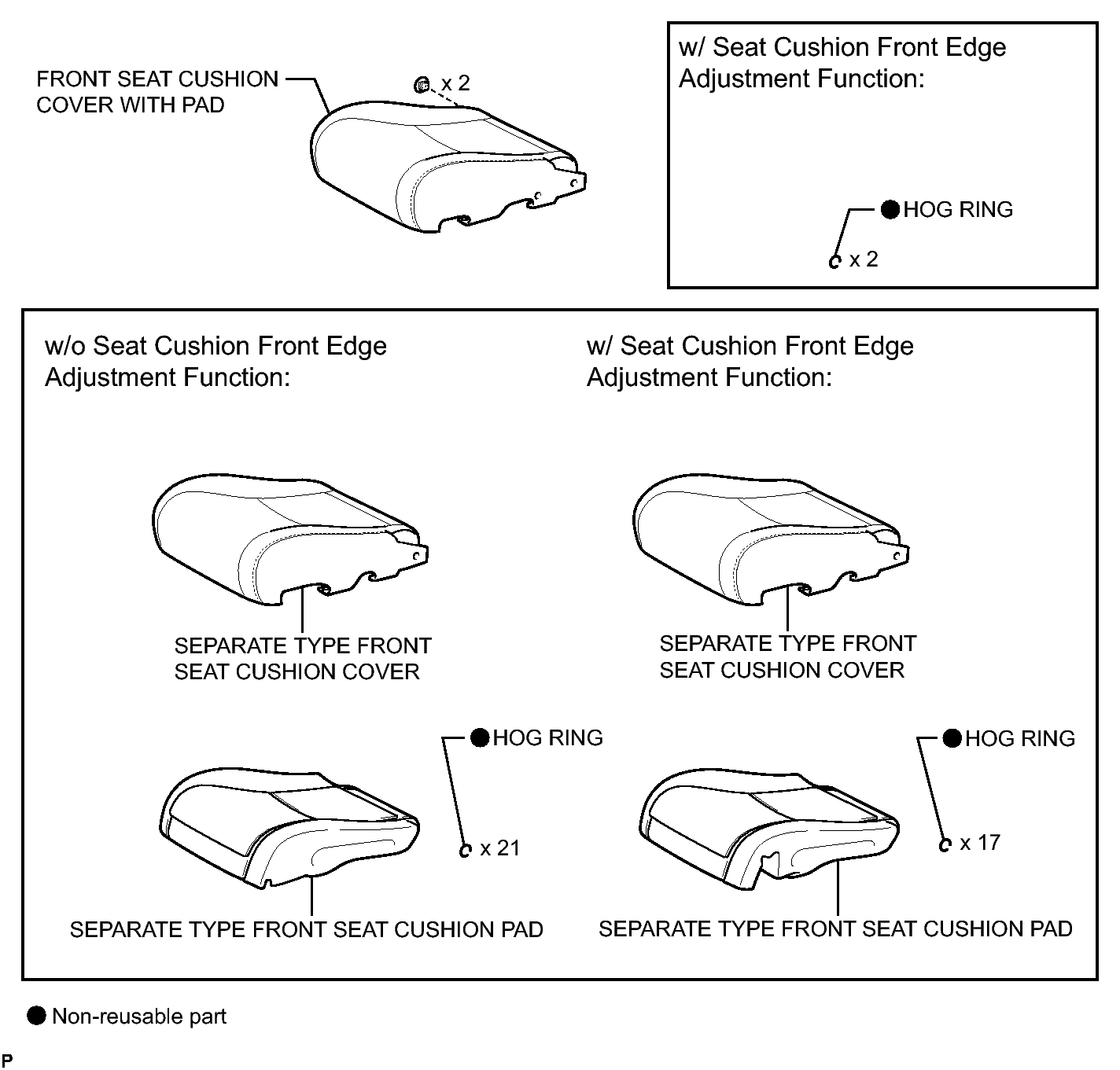

Fig 1: Identifying Occupant Detection Sensor Replacement Components (2 of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
