System Diagram

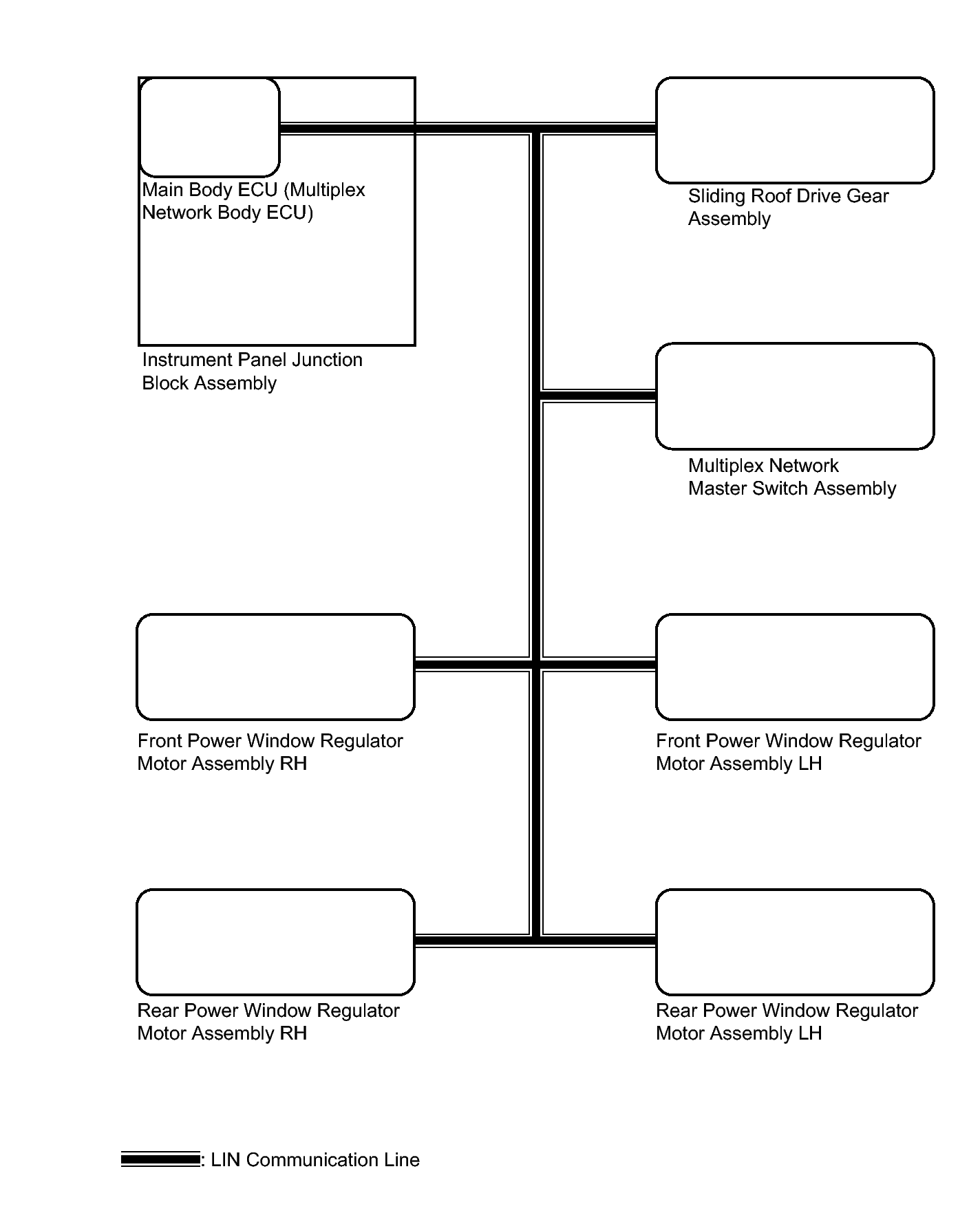

  1. DOOR BUS LINES
    Fig 1: Identifying LIN Communication System Diagram (1 of 5)
    GTY260033Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

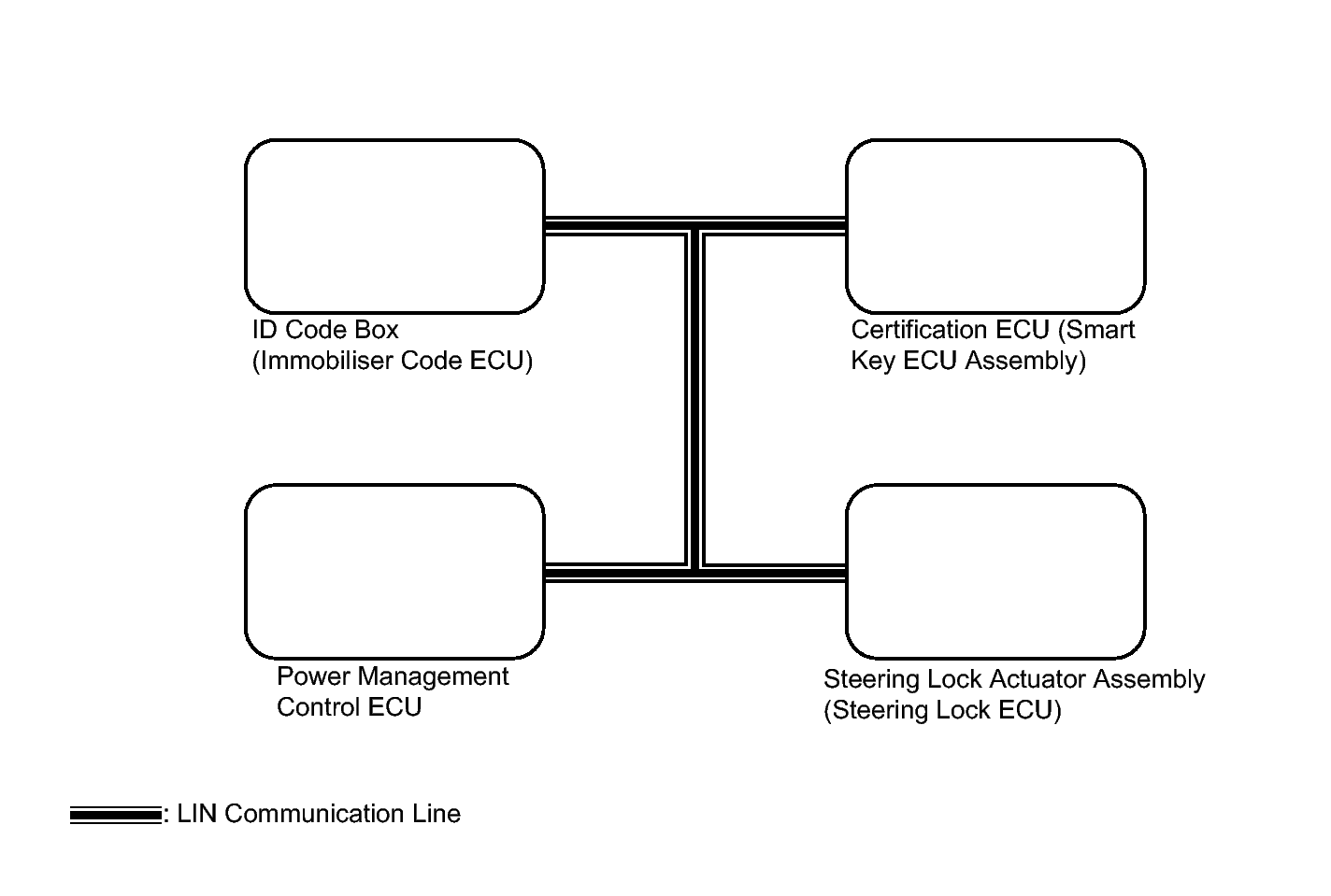

  2. CERTIFICATION BUS LINES
    Fig 2: Identifying LIN Communication System Diagram (2 of 5)
    GTY265636Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

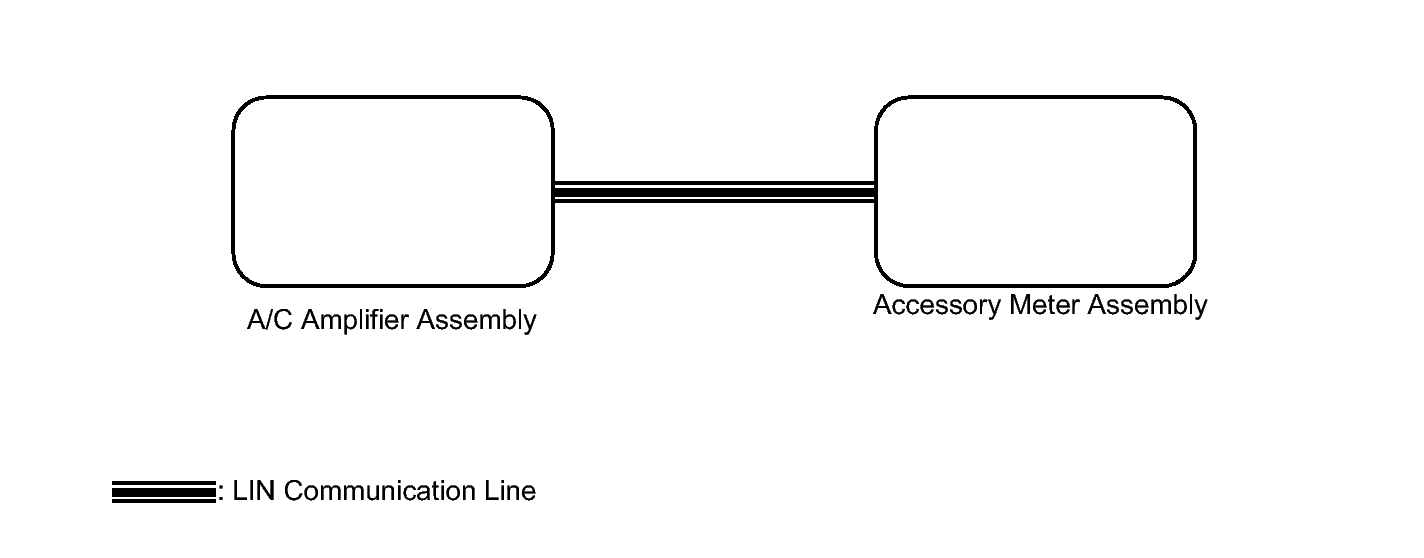

  3. AIR CONDITIONING BUS LINES (w/o Navigation System)
    Fig 3: Identifying LIN Communication System Diagram (3 of 5)
    GTY285709Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

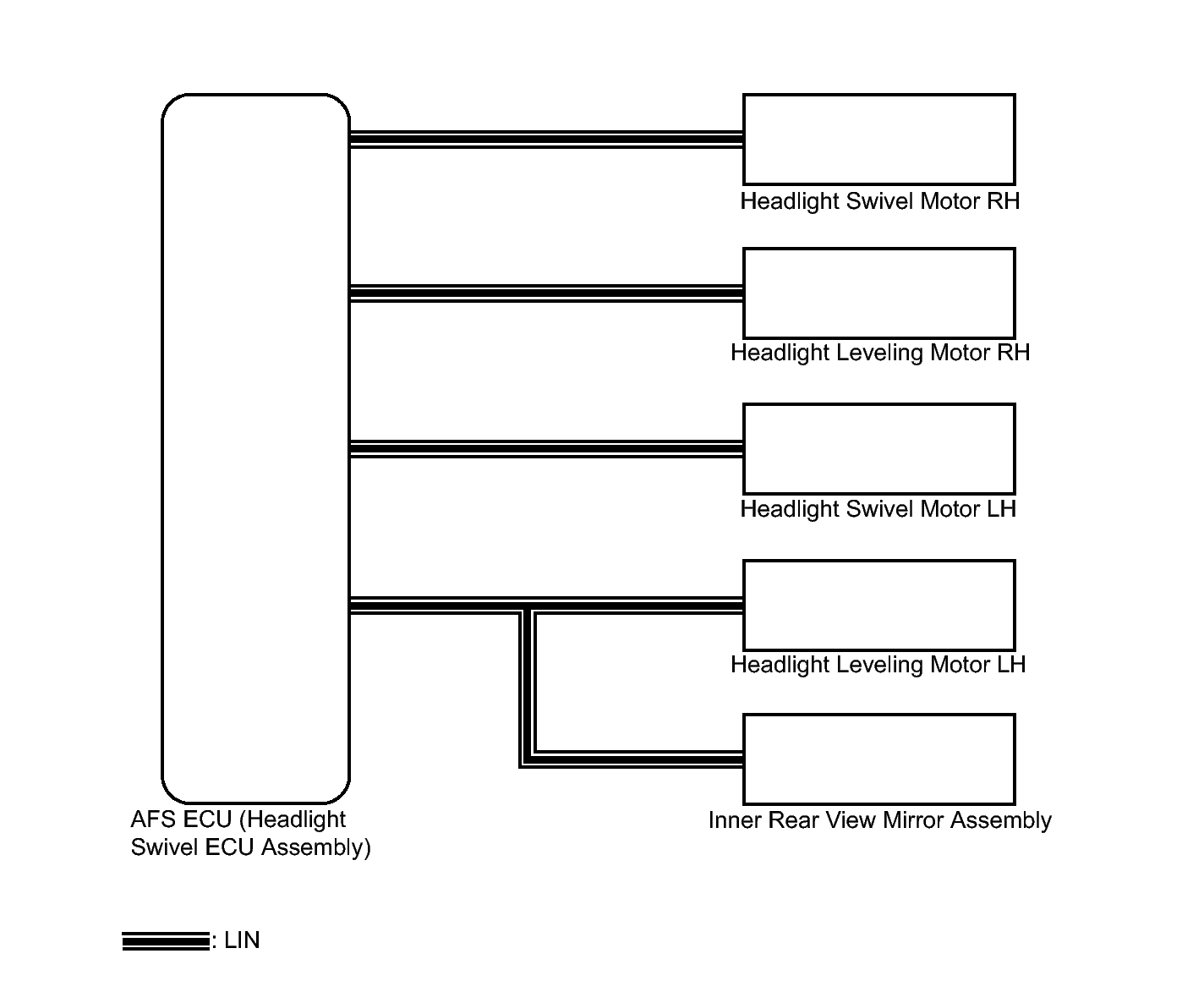

  4. LIGHTING BUS LINES
    Fig 4: Identifying LIN Communication System Diagram (4 of 5)
    GTY276181Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

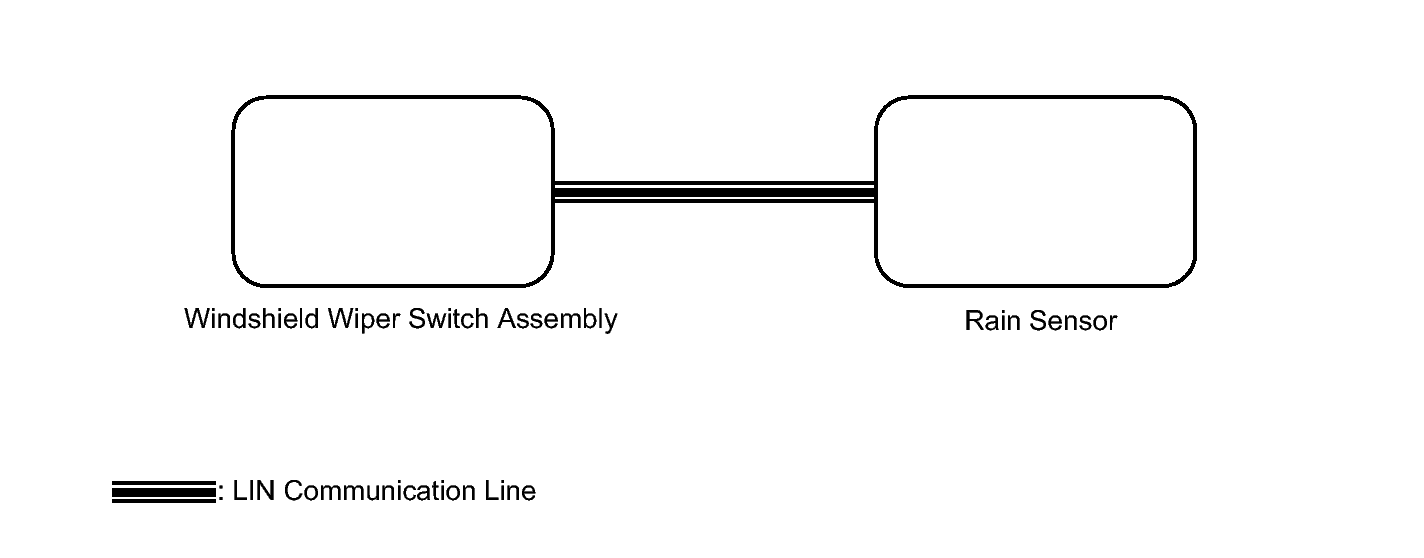

  5. WINDSHIELD WIPER BUS LINES
    Fig 5: Identifying LIN Communication System Diagram (5 of 5)
    GTY272177Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
