OEM System Circuits: EPS: Notes

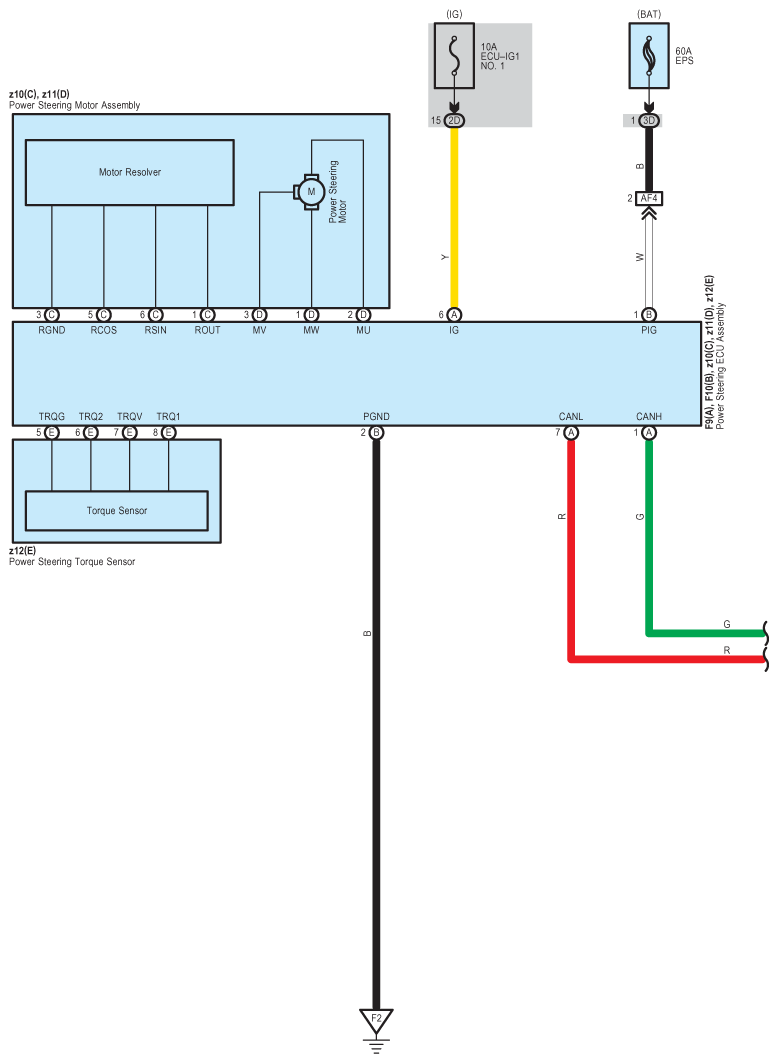

Fig 1: EPS - Wiring Diagram (1 Of 3)

G08938319

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

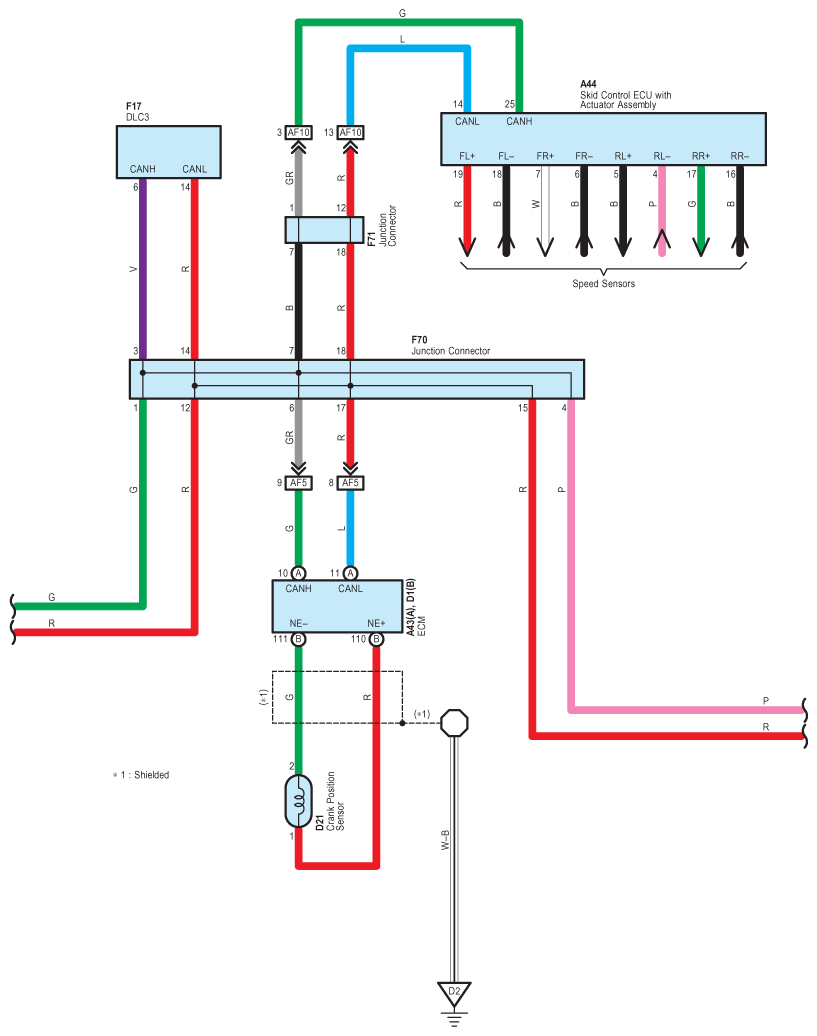

Fig 2: EPS - Wiring Diagram (2 Of 3)

G08938320

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

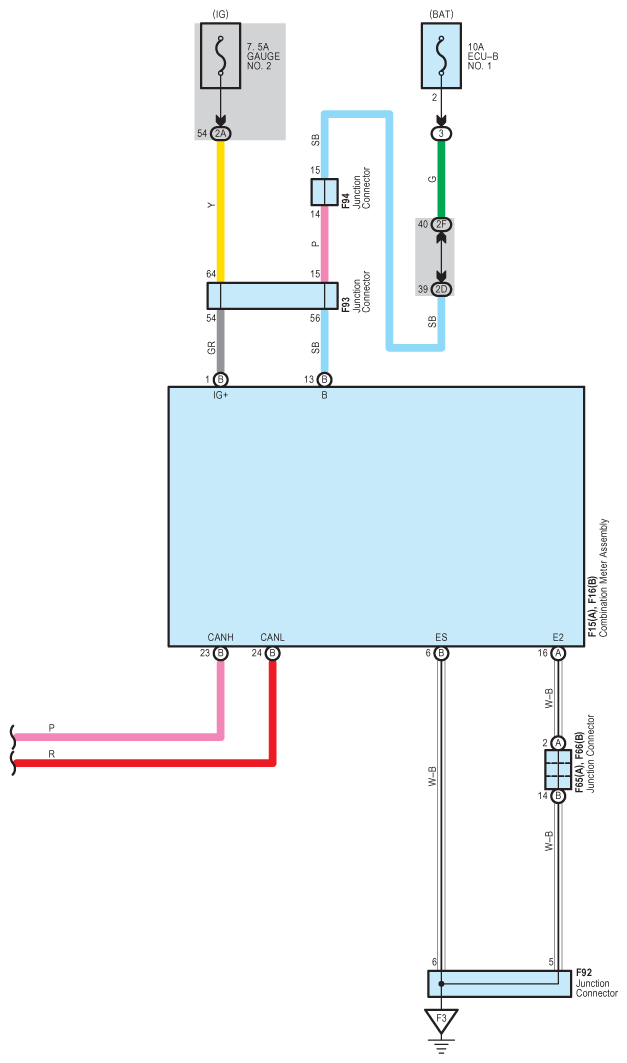

Fig 3: EPS - Wiring Diagram (3 Of 3)

G08938321

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
