Front Window Deicer: Notes

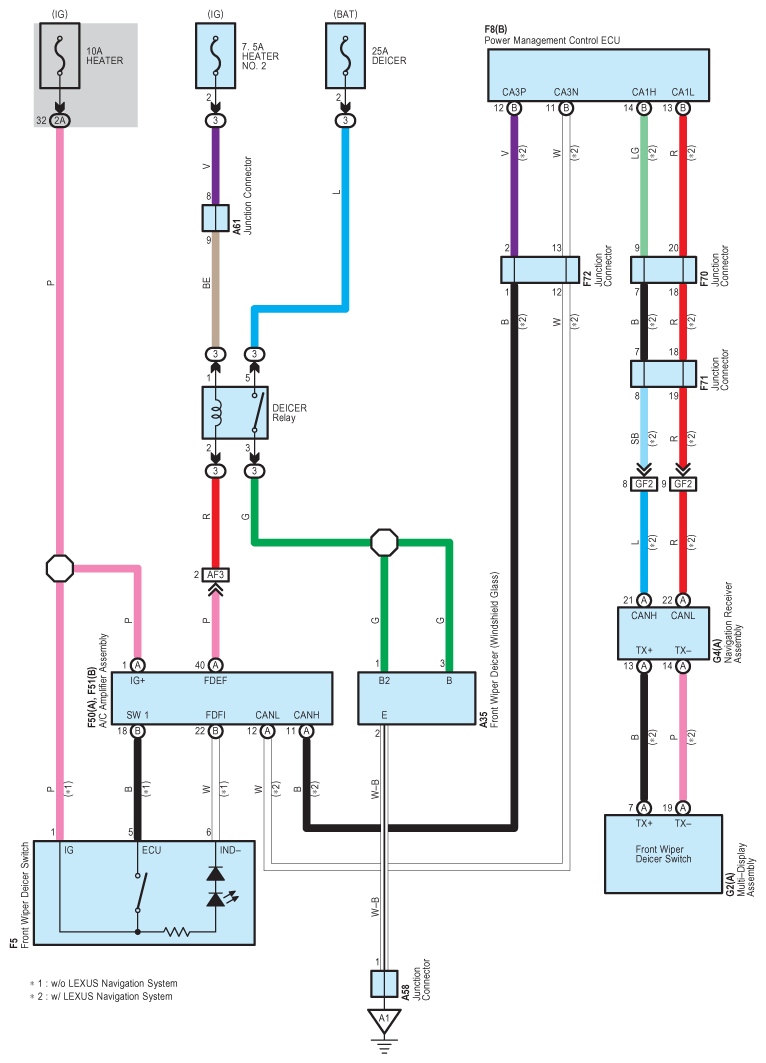

Fig 1: Front Window Deicer - Wiring Diagram

G08938393

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
