OEM System Circuits
›
Power Outlet
›
Notes
Power Outlet: Notes

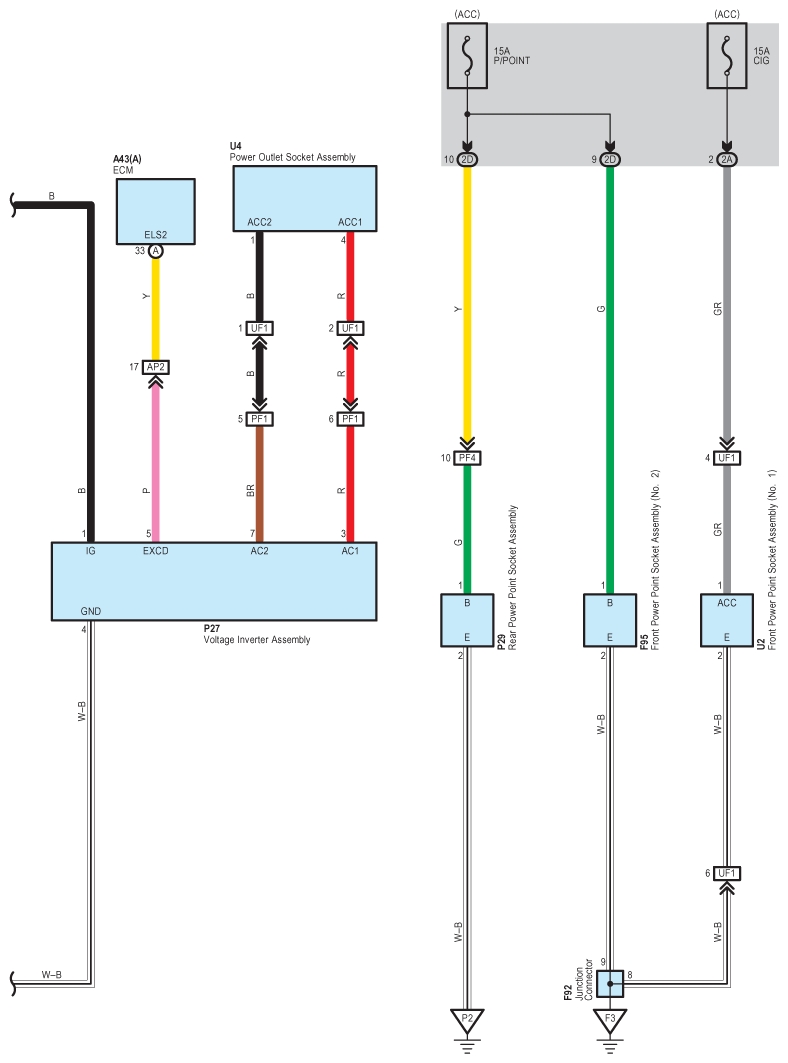

Fig 1: Power Outlet - Wiring Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

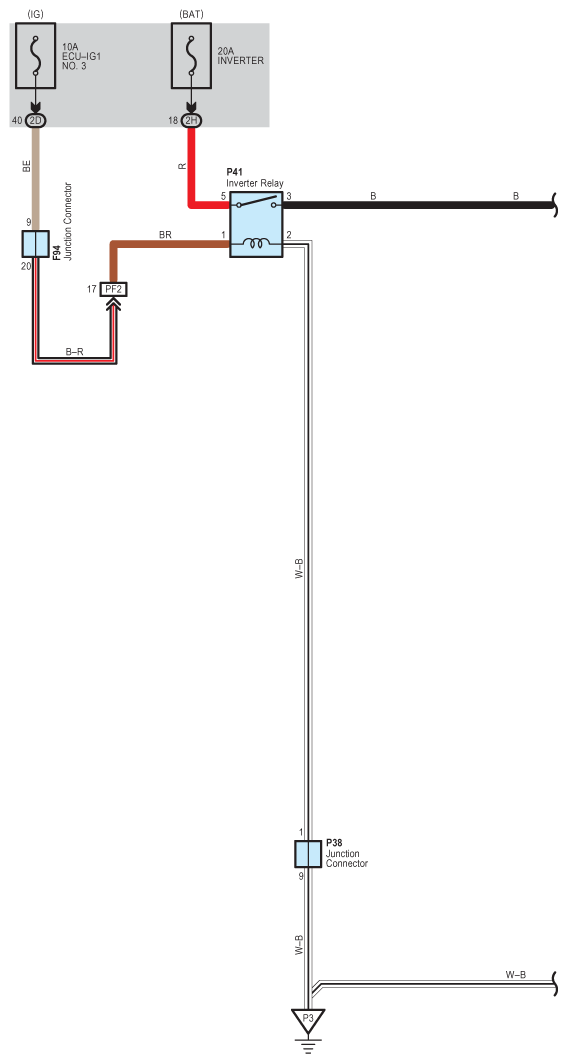

Fig 2: Power Outlet - Wiring Diagram (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
