Combination Meter: Notes

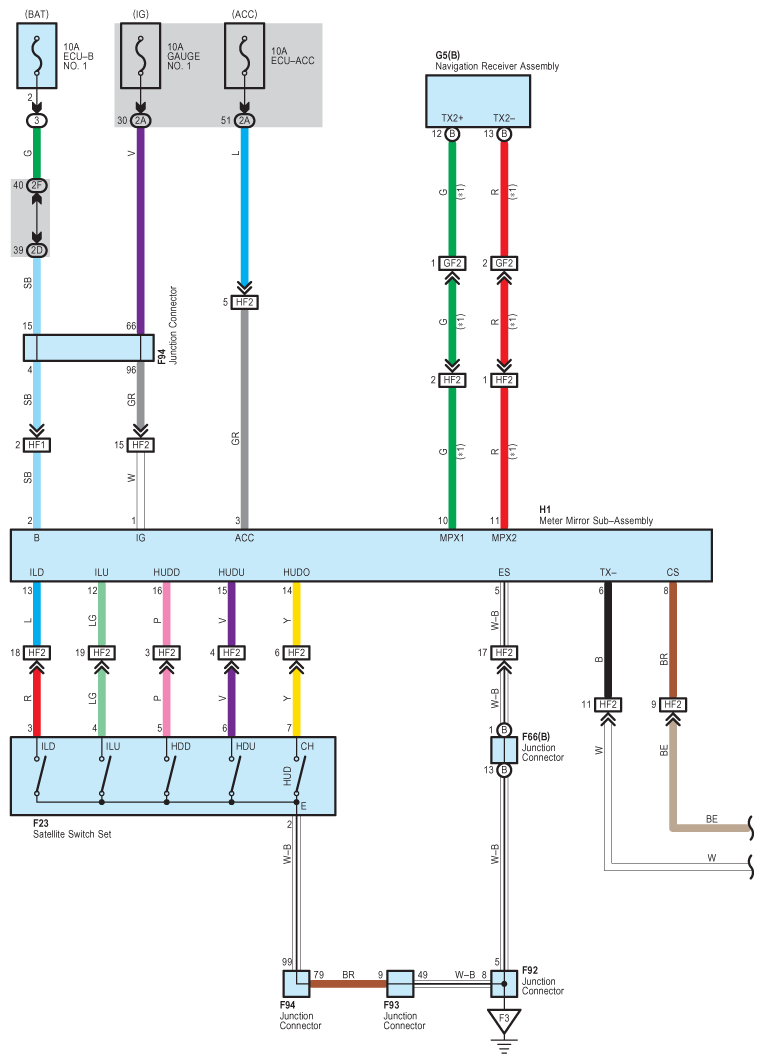

Fig 1: Combination Meter - Wiring Diagram (1 Of 11)
G08942875Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

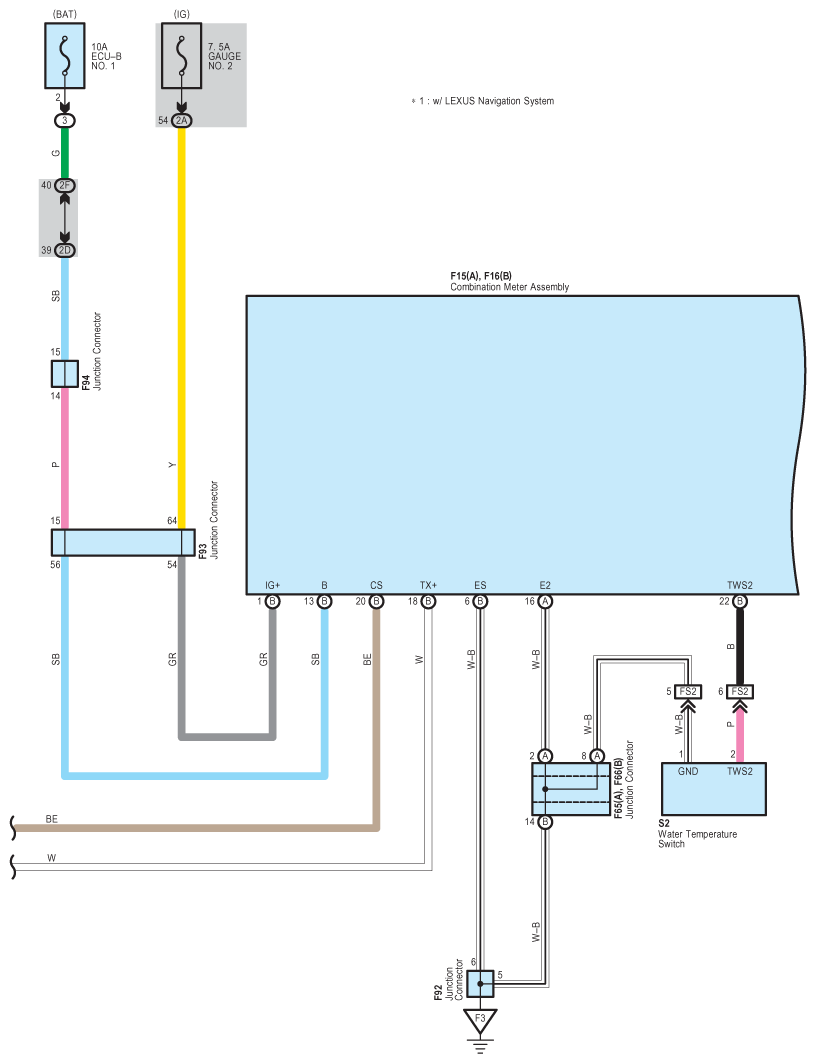

Fig 2: Combination Meter - Wiring Diagram (2 Of 11)
G08942876Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

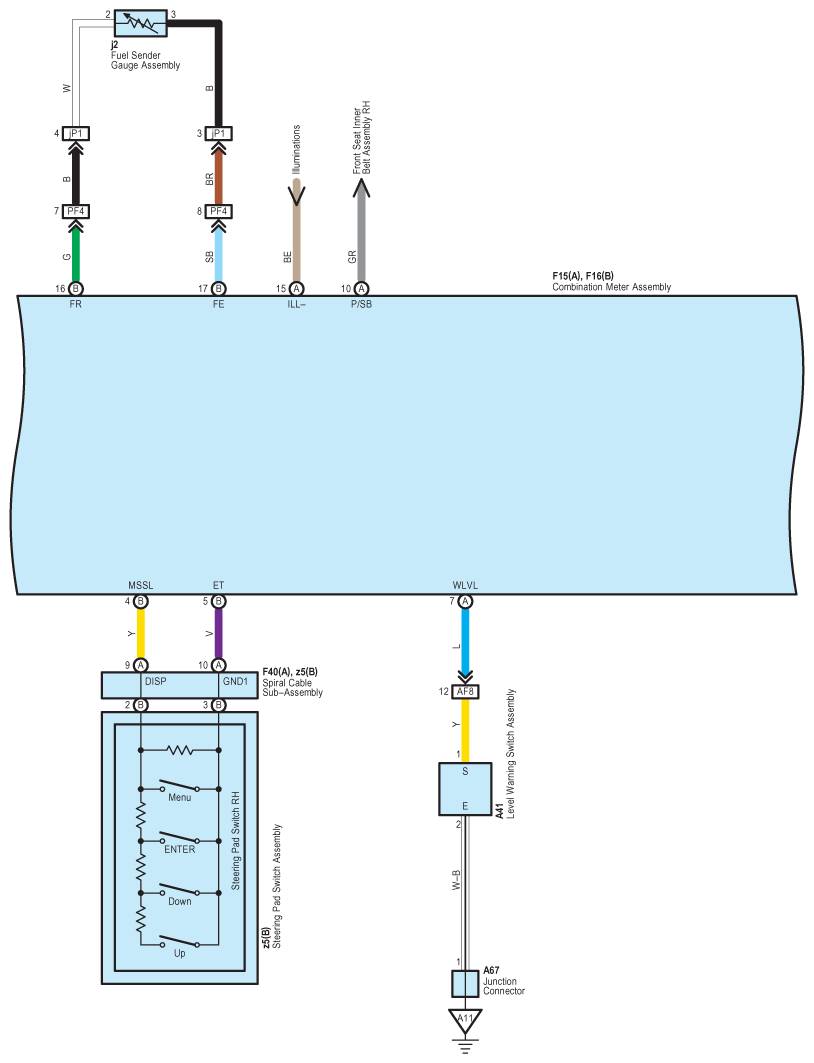

Fig 3: Combination Meter - Wiring Diagram (3 Of 11)
G08942877Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

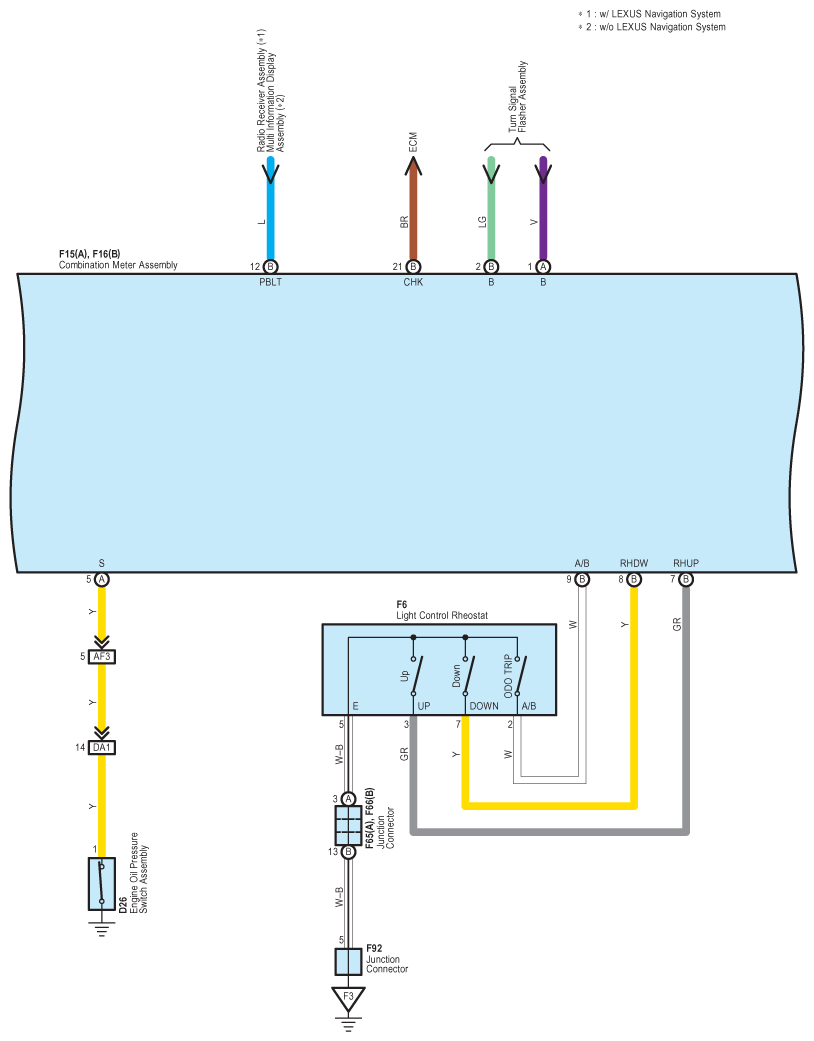

Fig 4: Combination Meter - Wiring Diagram (4 Of 11)
G08942878Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

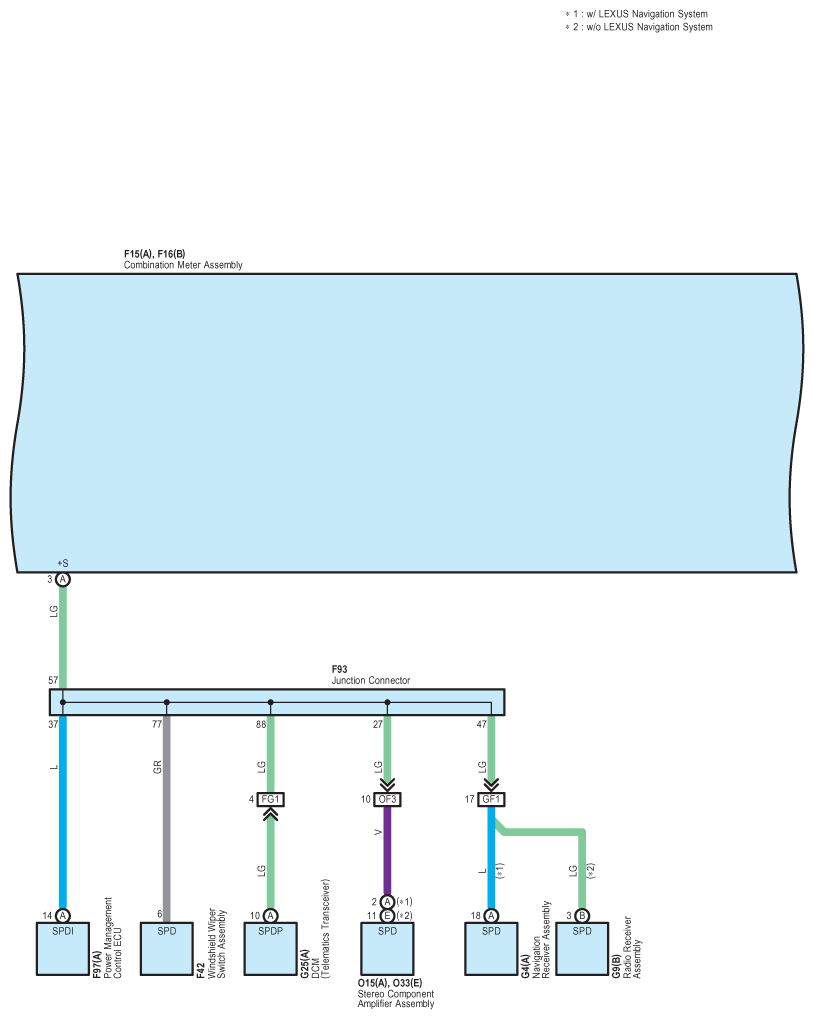

Fig 5: Combination Meter - Wiring Diagram (5 Of 11)
G08942879Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

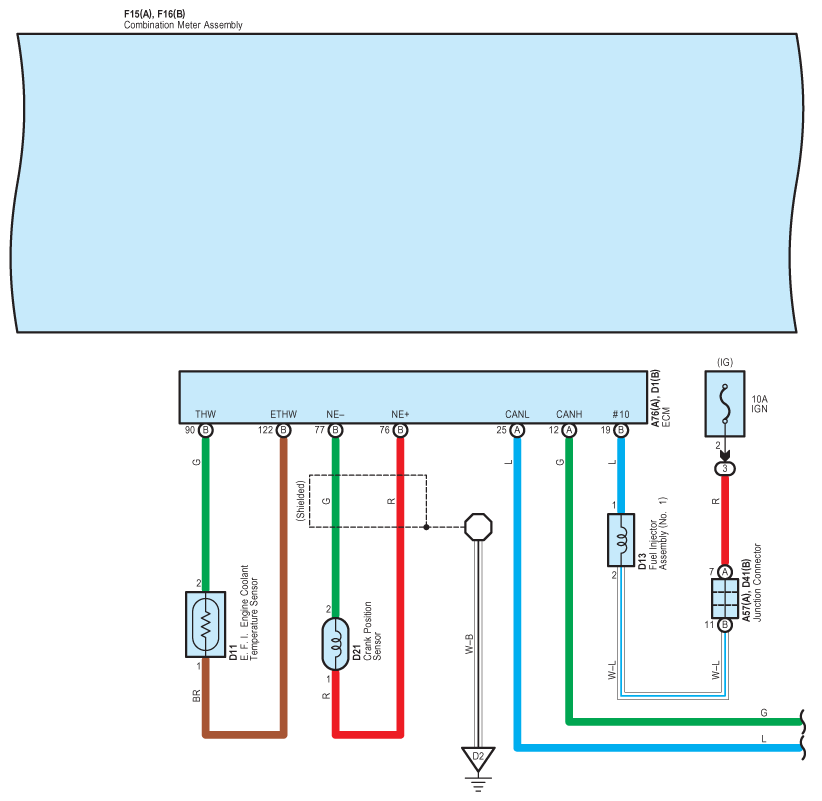

Fig 6: Combination Meter - Wiring Diagram (6 Of 11)
G08942880Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

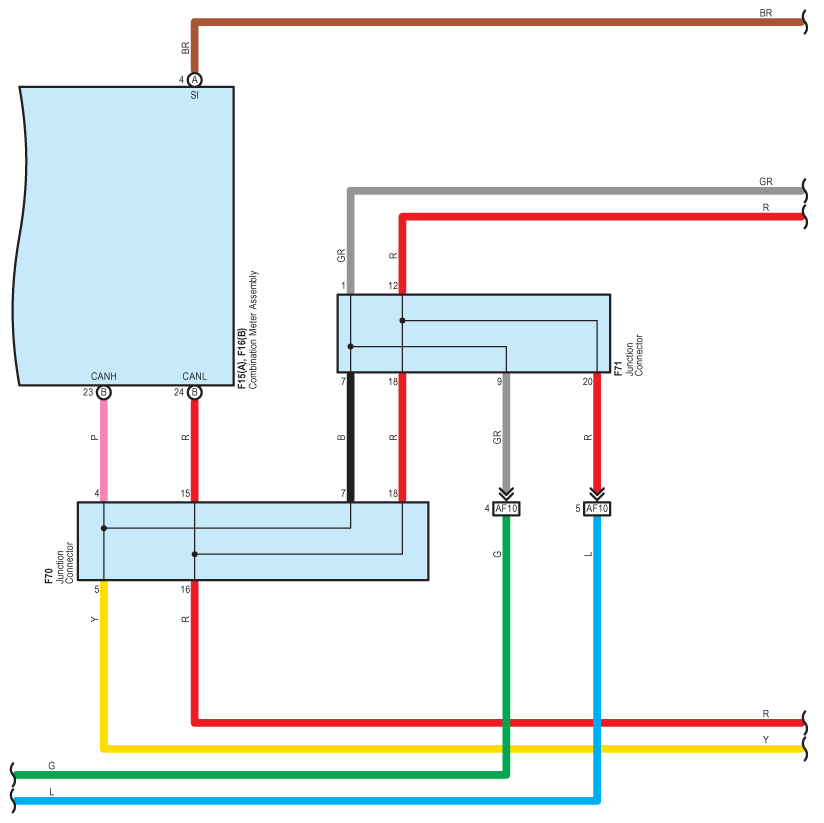

Fig 7: Combination Meter - Wiring Diagram (7 Of 11)
G08942881Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

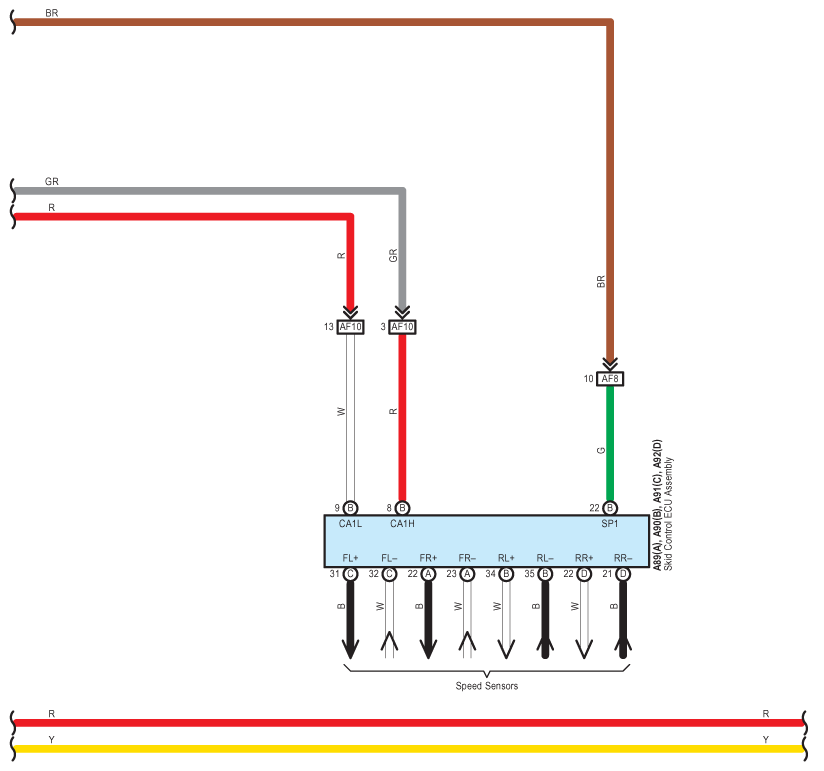

Fig 8: Combination Meter - Wiring Diagram (8 Of 11)
G08942882Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

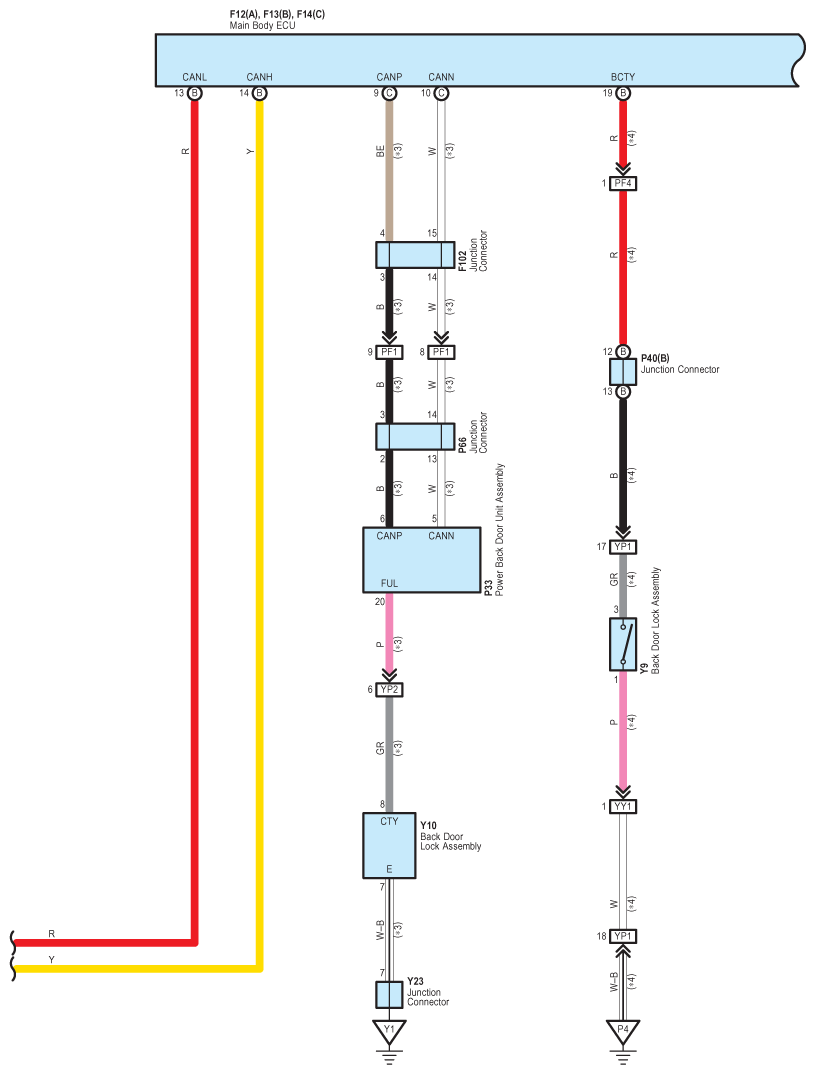

Fig 9: Combination Meter - Wiring Diagram (9 Of 11)
G08942883Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

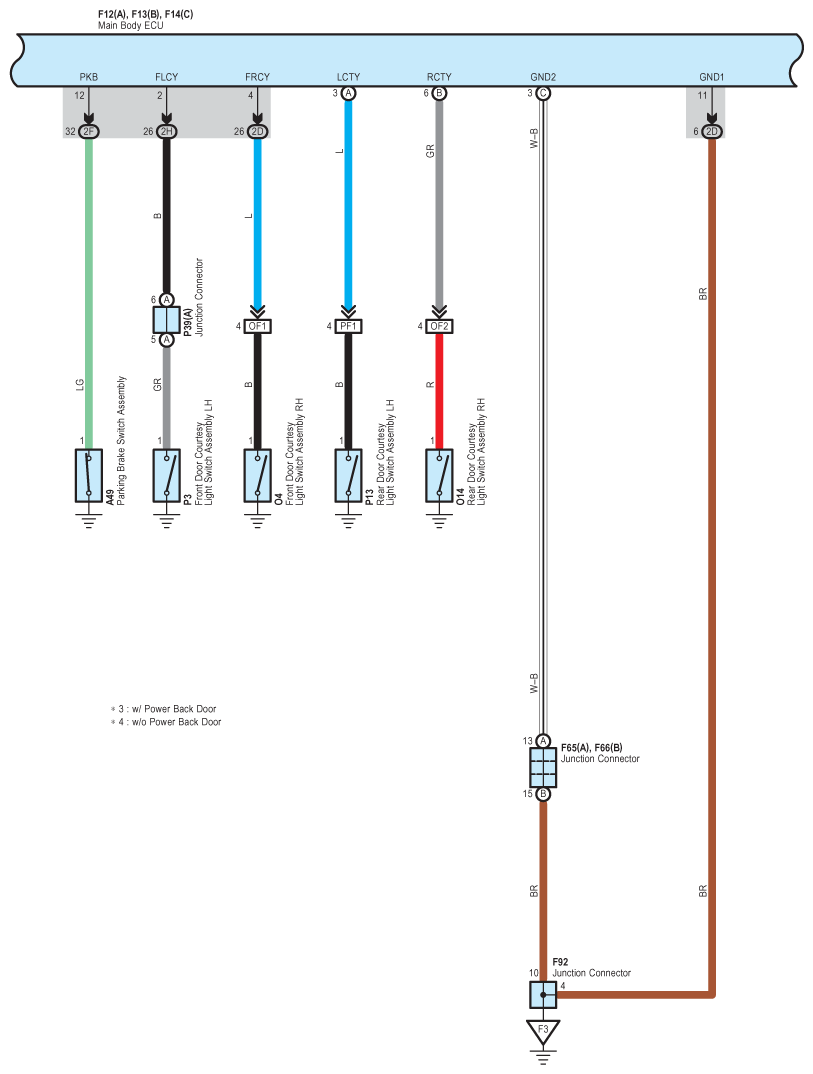

Fig 10: Combination Meter - Wiring Diagram (10 Of 11)
G08942884Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

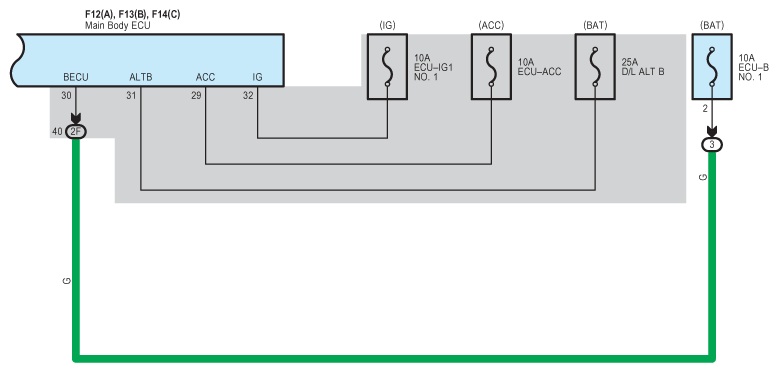

Fig 11: Combination Meter - Wiring Diagram (11 Of 11)
G08942885Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
