OEM System Circuits: Headlight: Notes

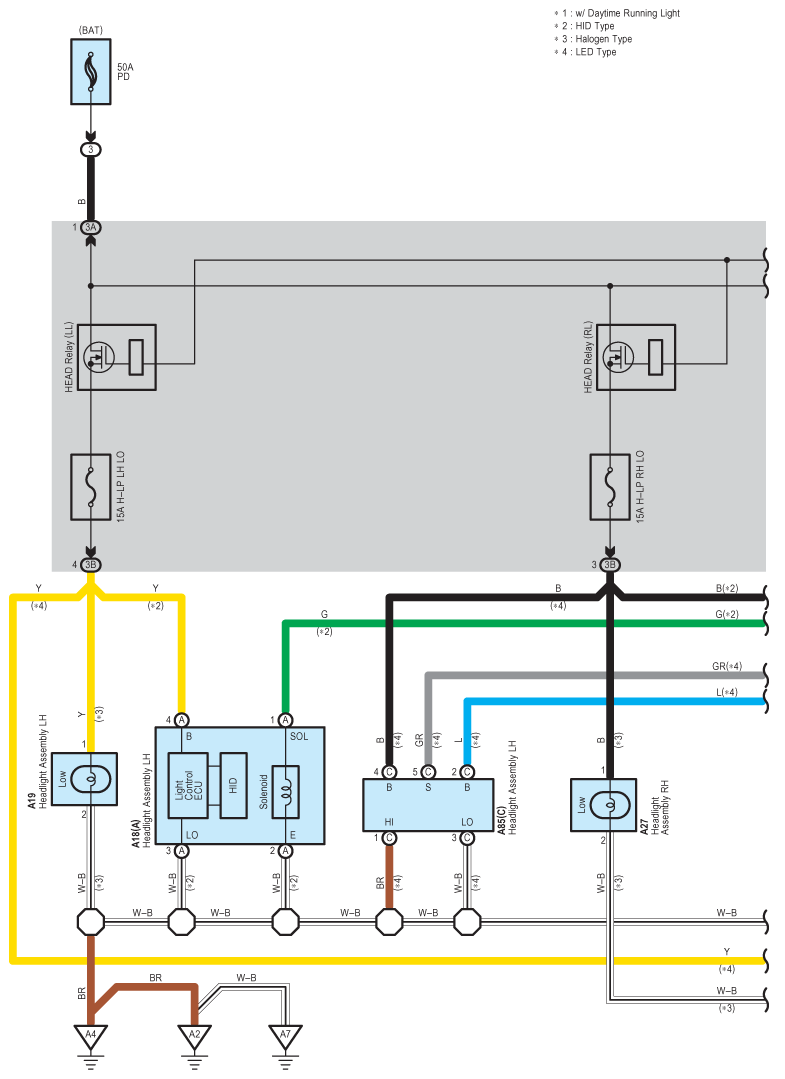

Fig 1: Headlight - Wiring Diagram (1 Of 7)

G08942626

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

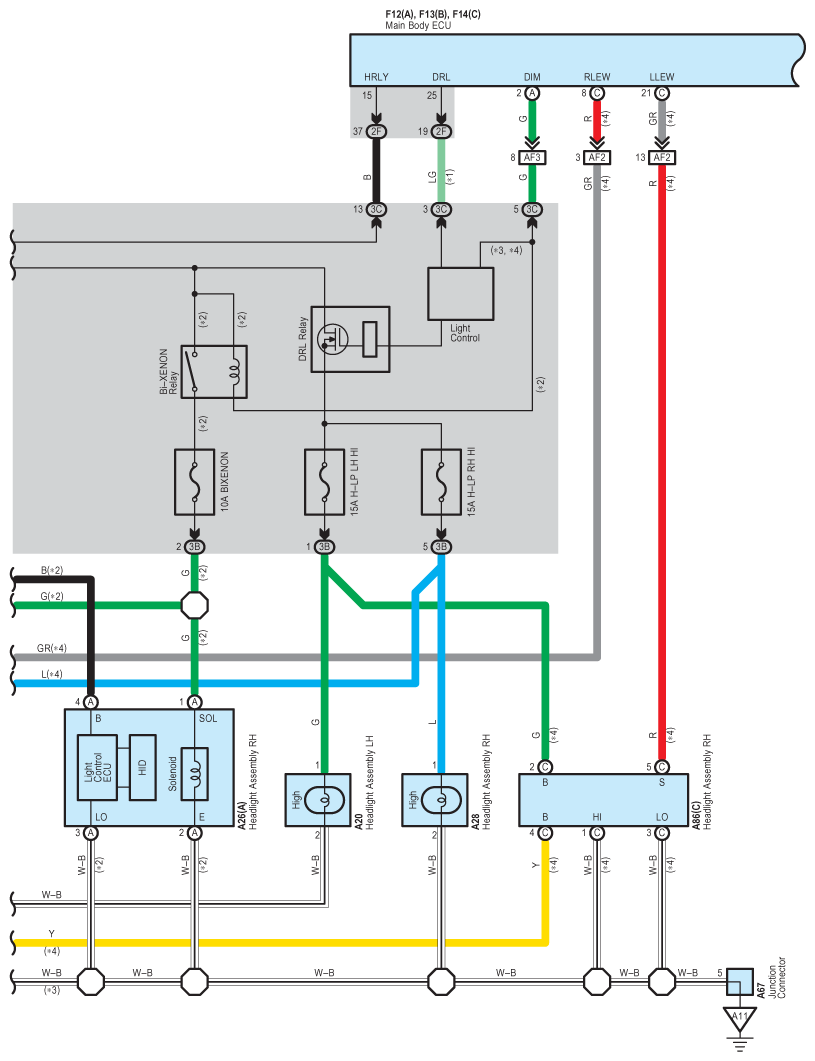

Fig 2: Headlight - Wiring Diagram (2 Of 7)

G08942627

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

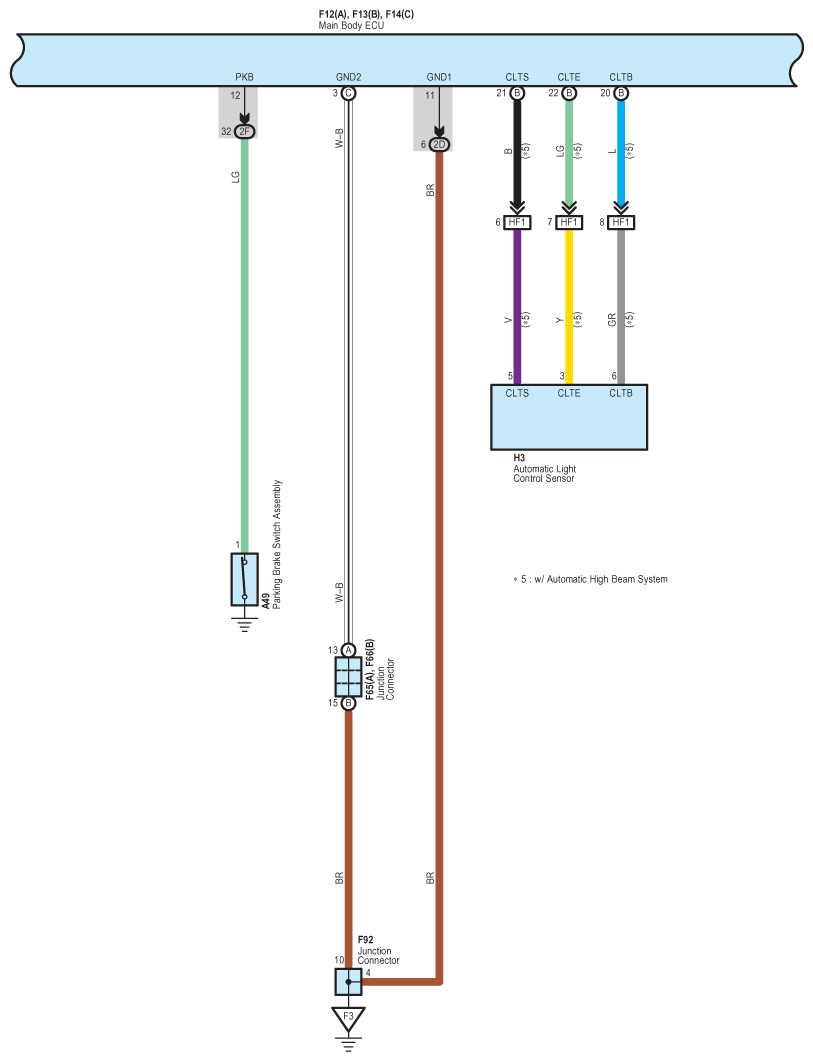

Fig 3: Headlight - Wiring Diagram (3 Of 7)

G08942628

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

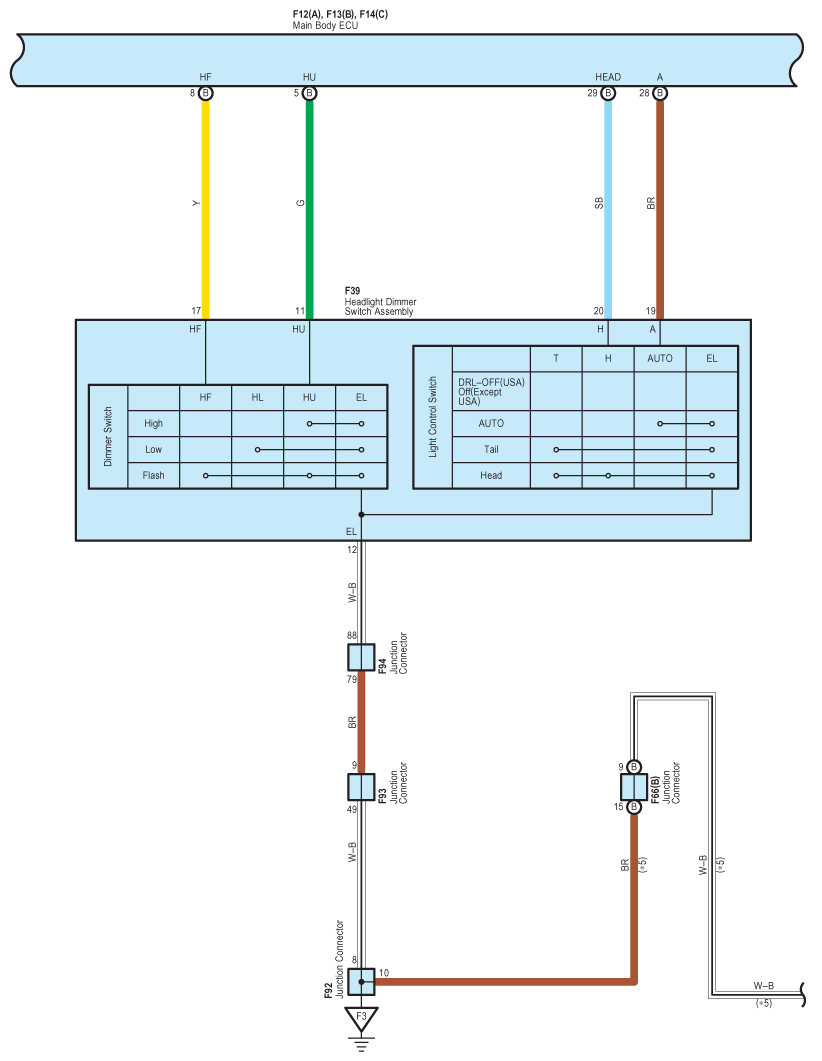

Fig 4: Headlight - Wiring Diagram (4 Of 7)

G08942629

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

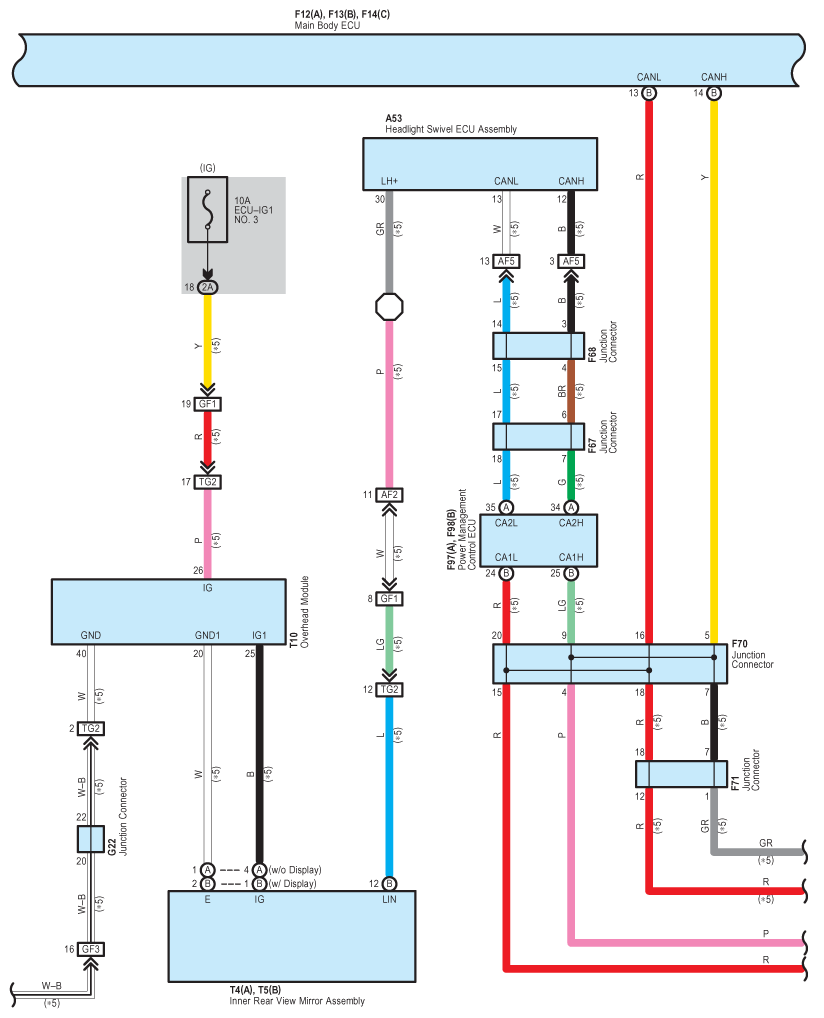

Fig 5: Headlight - Wiring Diagram (5 Of 7)

G08942630

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

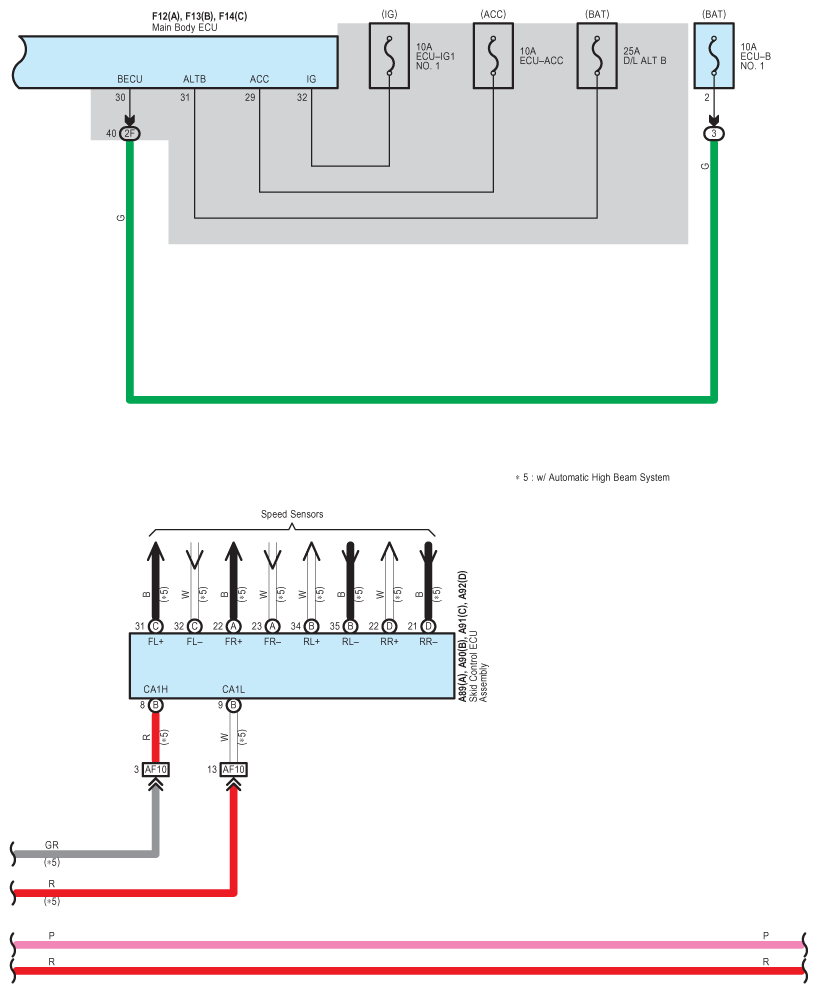

Fig 6: Headlight - Wiring Diagram (6 Of 7)

G08942631

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

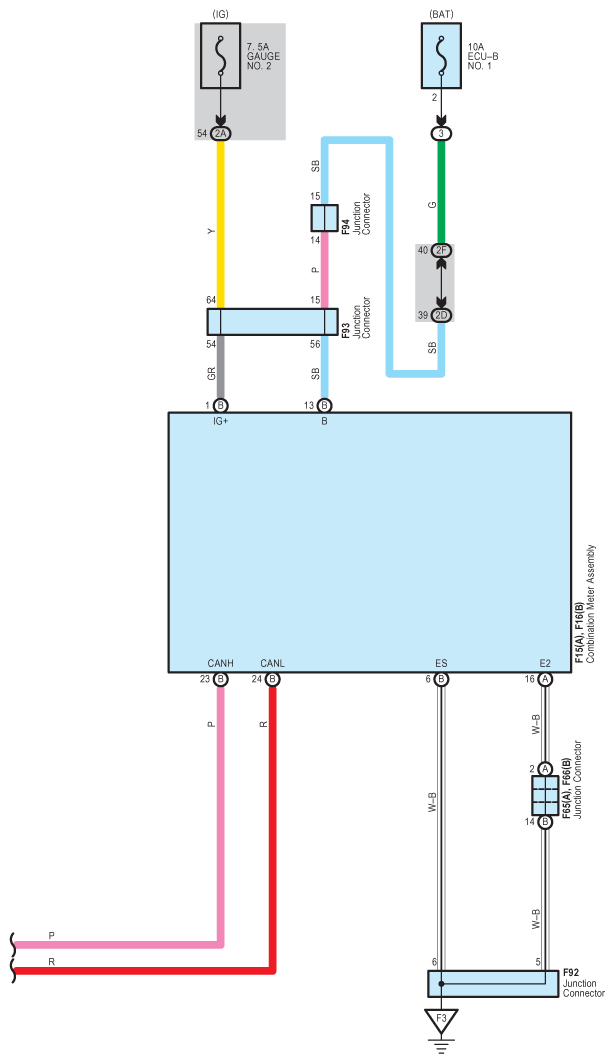

Fig 7: Headlight - Wiring Diagram (7 Of 7)

G08942632

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
