OEM System Circuits: Illumination: Notes

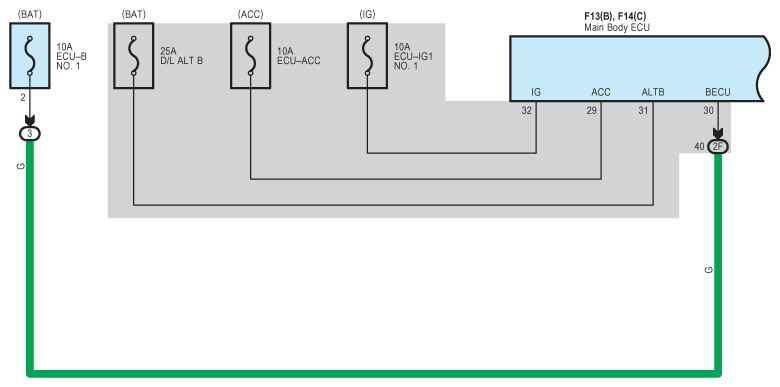

Fig 1: Illumination - Wiring Diagram (1 Of 10)

G08942656

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

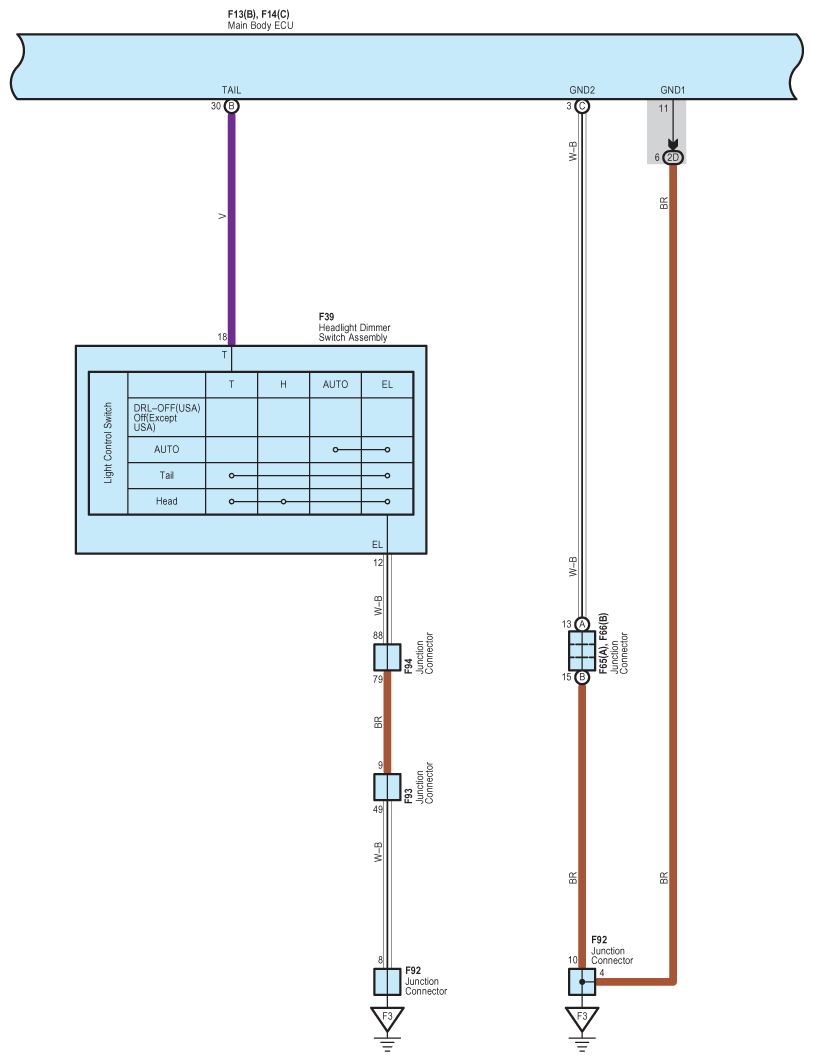

Fig 2: Illumination - Wiring Diagram (2 Of 10)

G08942657

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

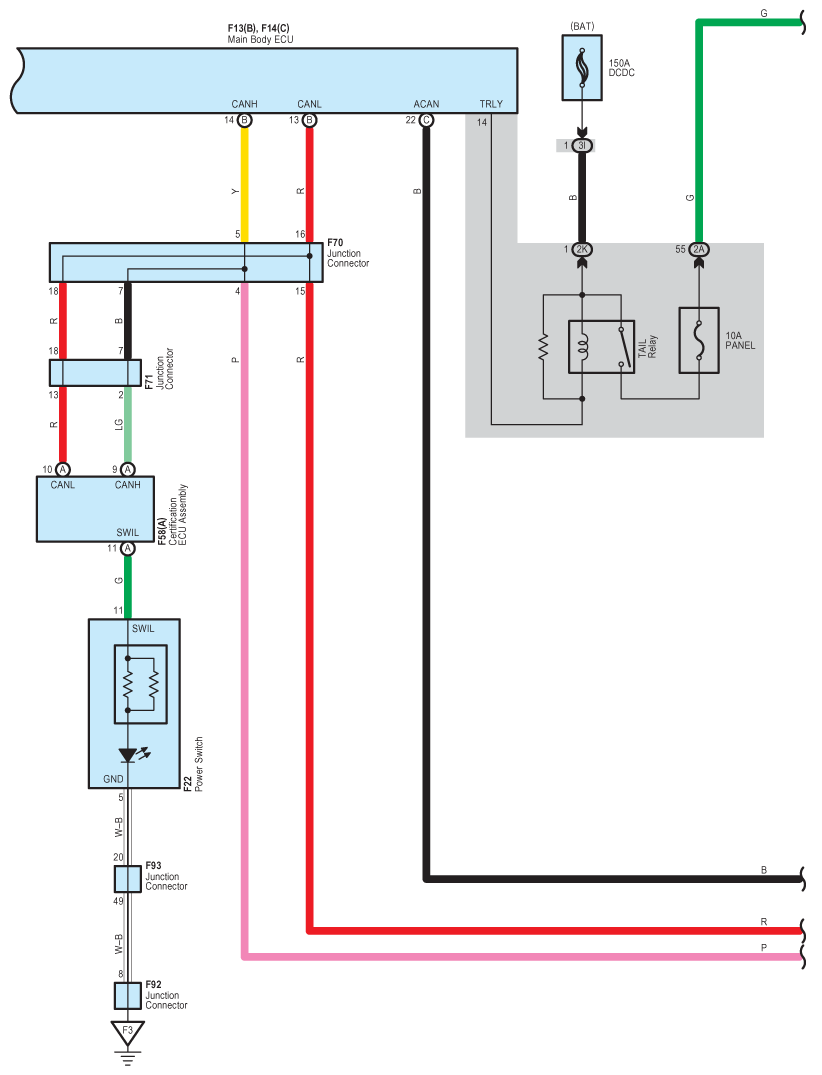

Fig 3: Illumination - Wiring Diagram (3 Of 10)

G08942658

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

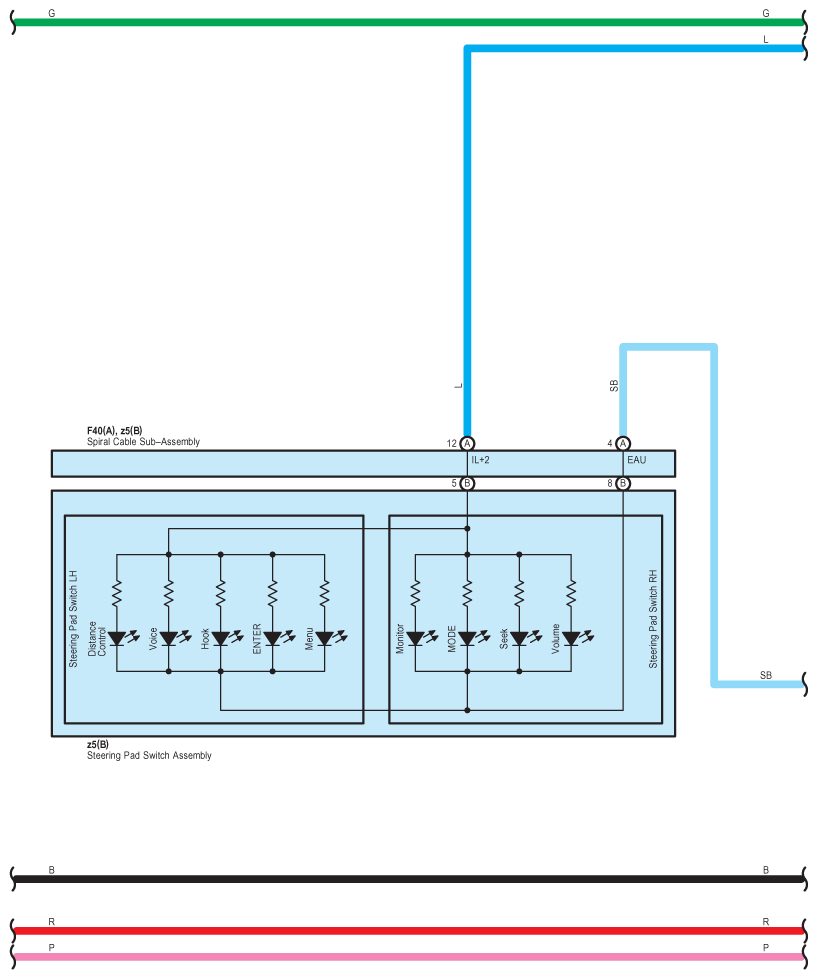

Fig 4: Illumination - Wiring Diagram (4 Of 10)

G08942659

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

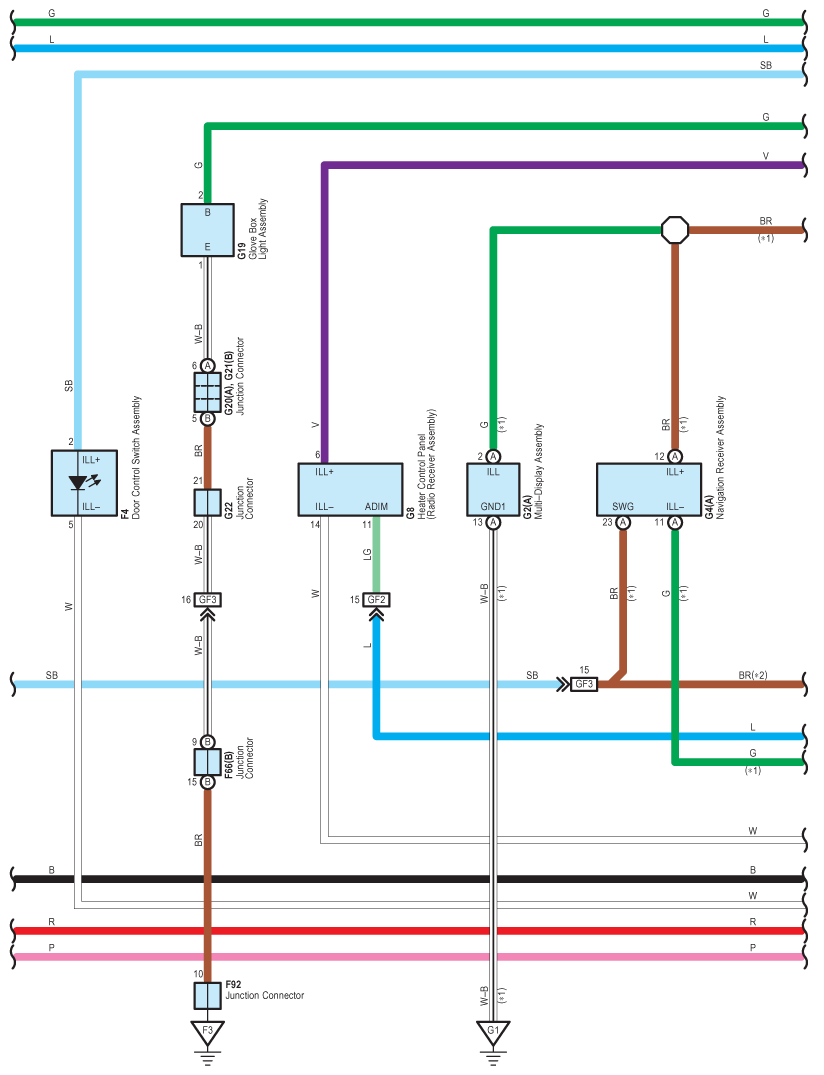

Fig 5: Illumination - Wiring Diagram (5 Of 10)

G08942660

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

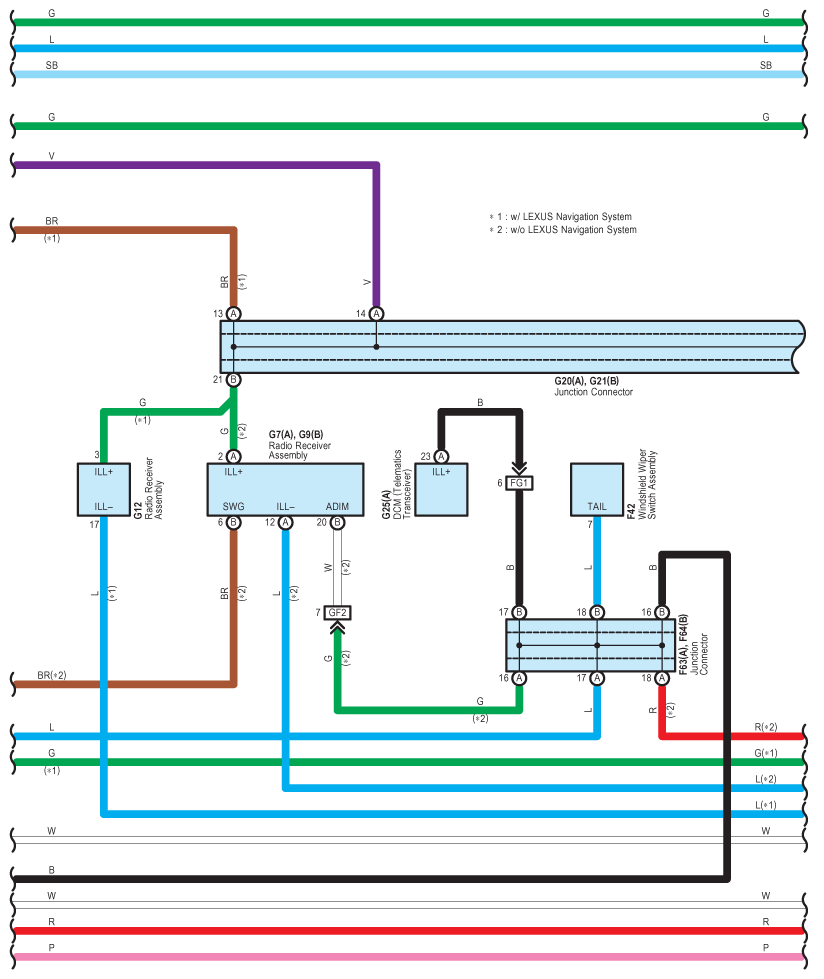

Fig 6: Illumination - Wiring Diagram (6 Of 10)

G08942661

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

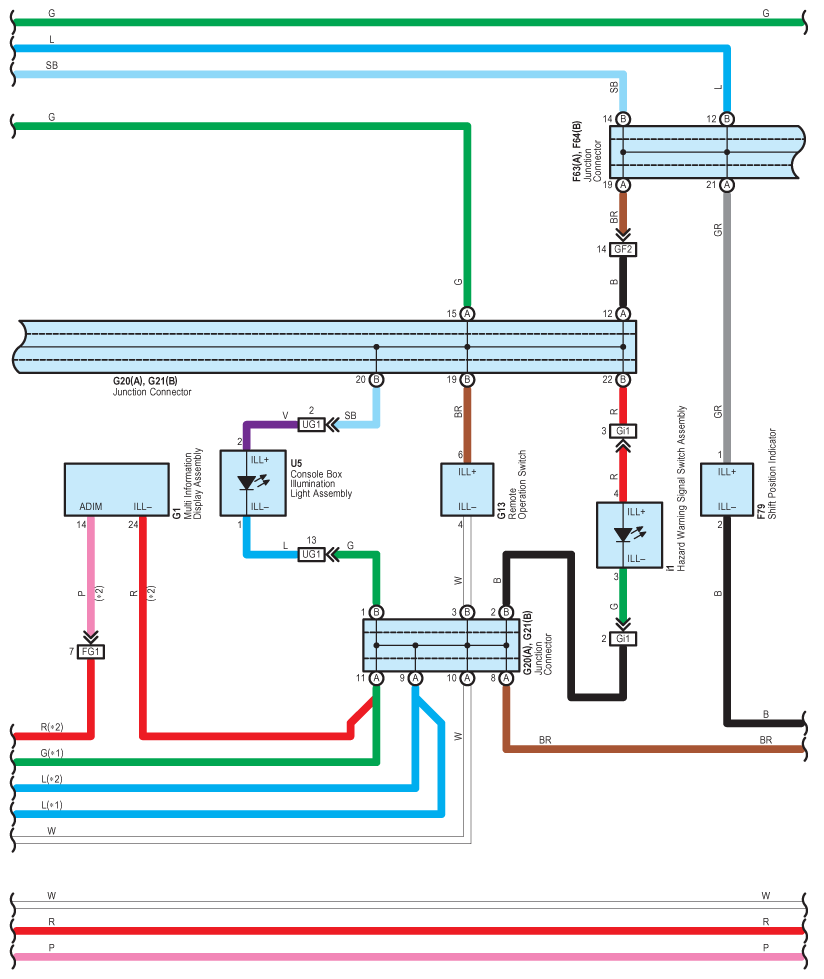

Fig 7: Illumination - Wiring Diagram (7 Of 10)

G08942662

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

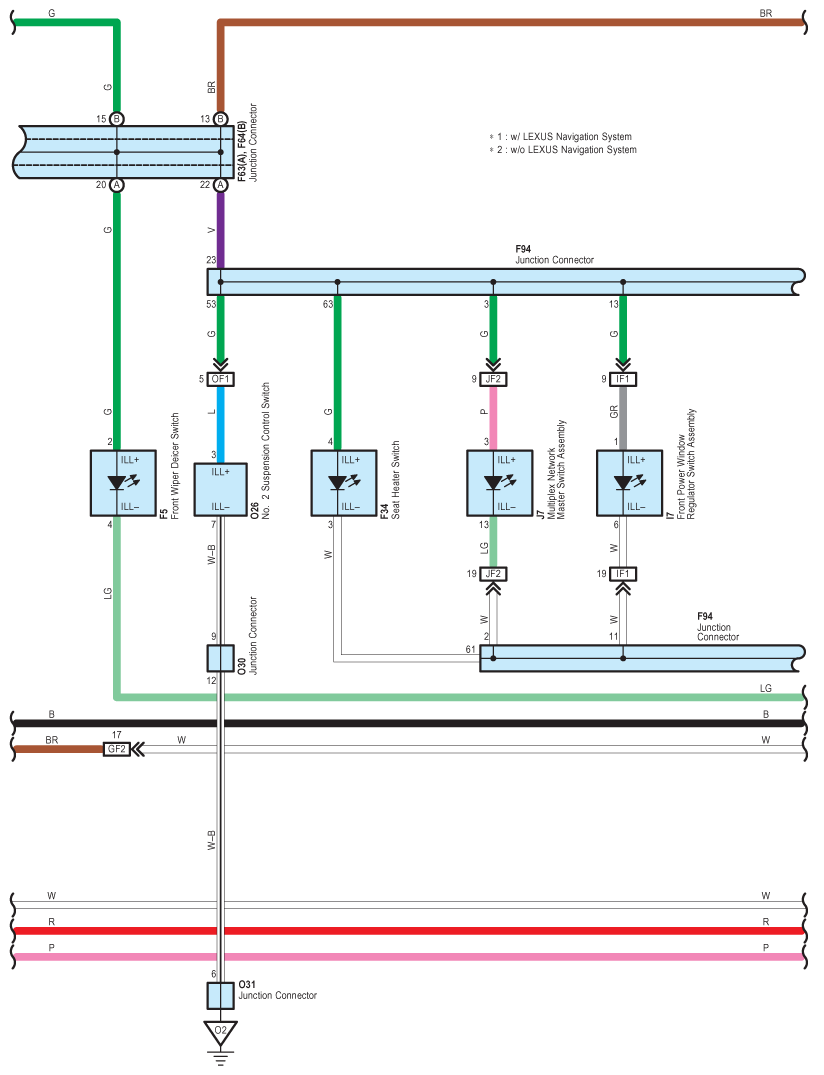

Fig 8: Illumination - Wiring Diagram (8 Of 10)

G08942663

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

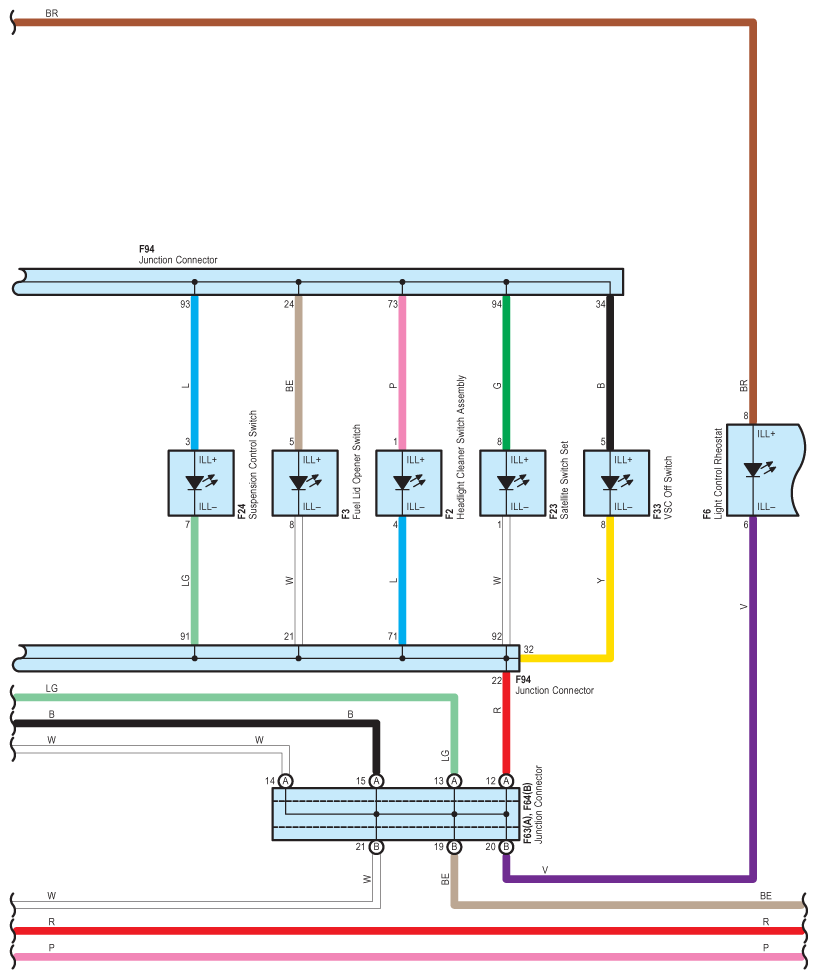

Fig 9: Illumination - Wiring Diagram (9 Of 10)

G08942664

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

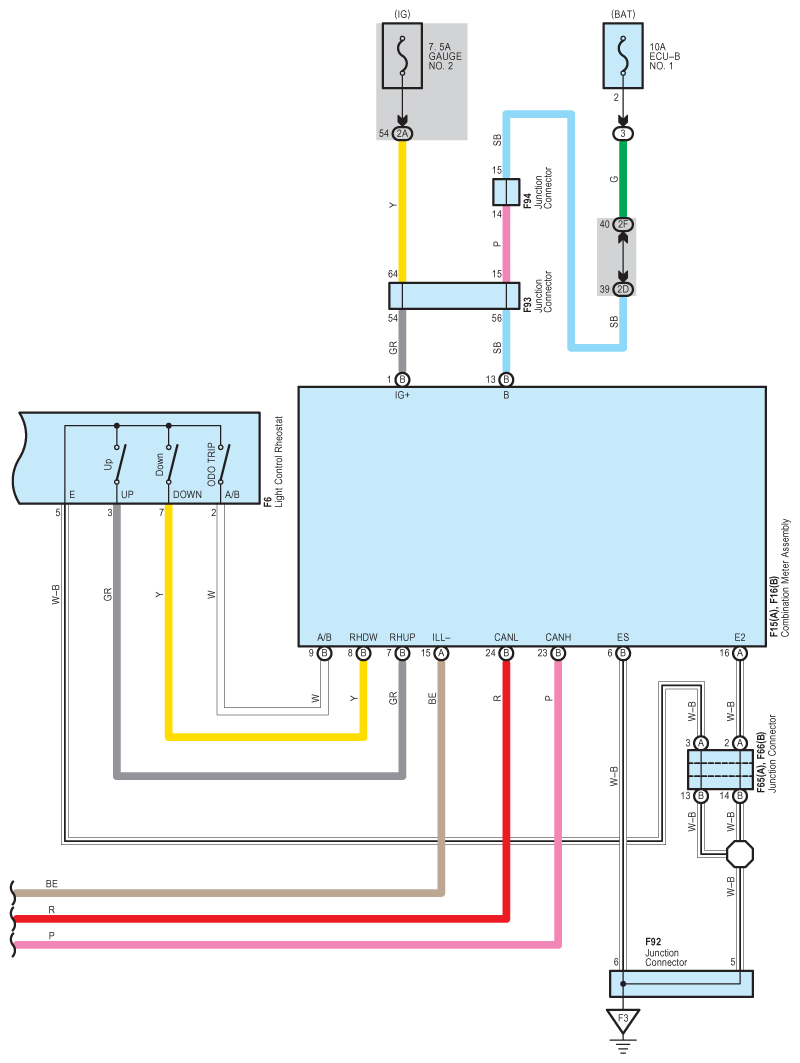

Fig 10: Illumination - Wiring Diagram (10 Of 10)

G08942665

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
