LEXUS ENFORM or Safety Connect: Notes

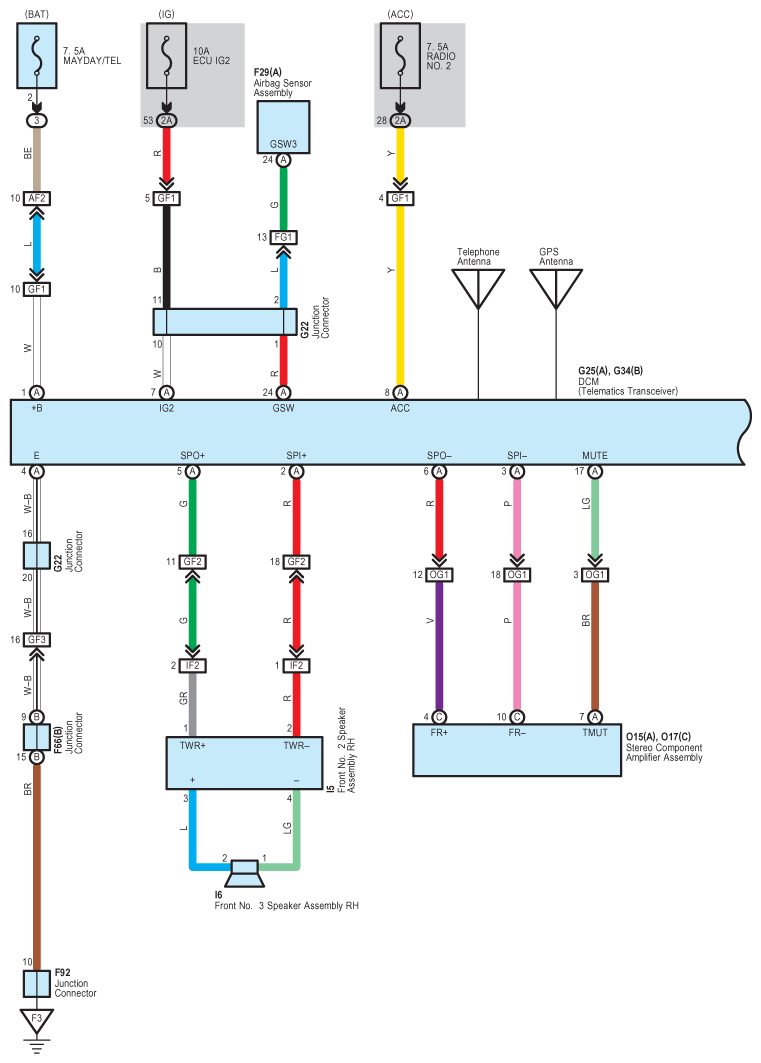

Fig 1: LEXUS ENFORM Or Safety Connect - Wiring Diagram (1 Of 5)
G08942837Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

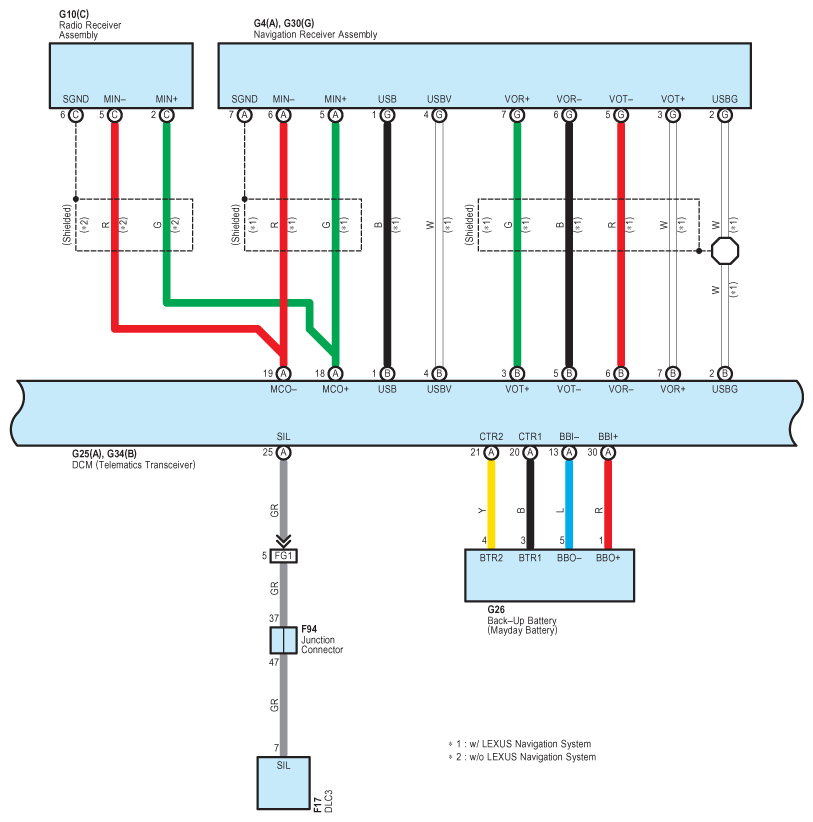

Fig 2: LEXUS ENFORM Or Safety Connect - Wiring Diagram (2 Of 5)
G08942838Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

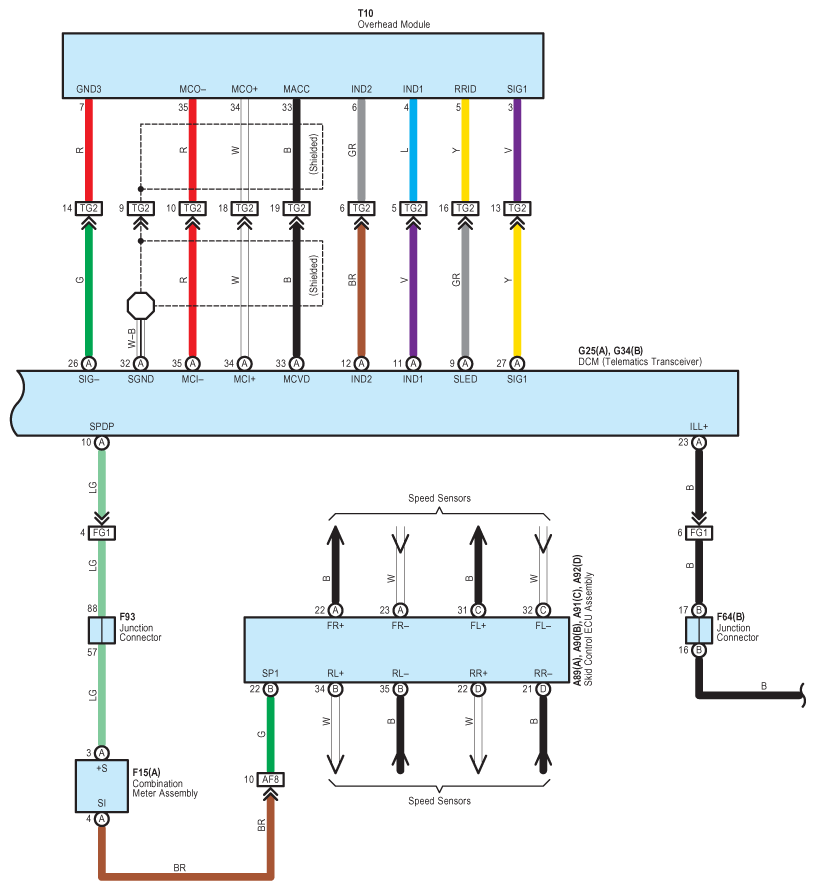

Fig 3: LEXUS ENFORM Or Safety Connect - Wiring Diagram (3 Of 5)
G08942839Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

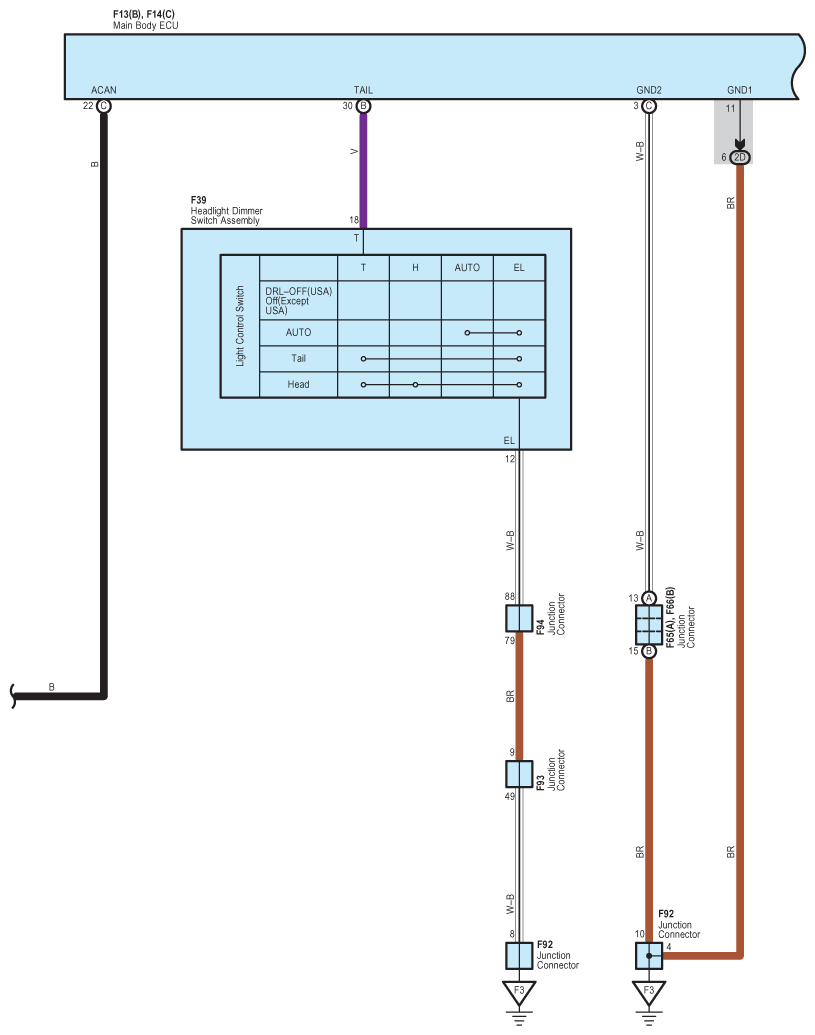

Fig 4: LEXUS ENFORM Or Safety Connect - Wiring Diagram (4 Of 5)
G08942840Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

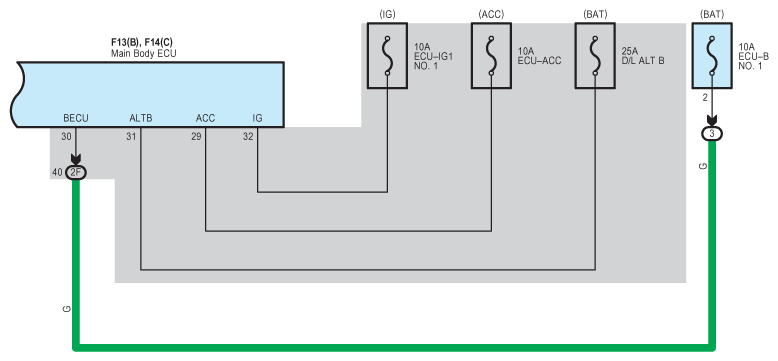

Fig 5: LEXUS ENFORM Or Safety Connect - Wiring Diagram (5 Of 5)
G08942841Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
