Lexus
›
2013
›
CT 200h Base
›
Repair and Diagnosis
›
Electrical
›
Body Electrical
›
OEM System Circuits
›
Fuel Lid Opener
›
Notes
Fuel Lid Opener: Notes

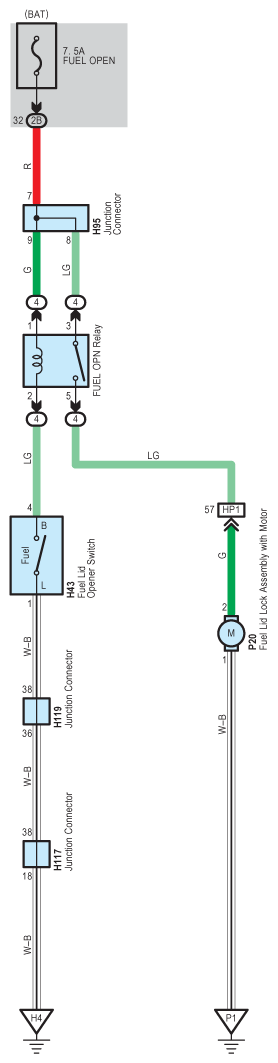

Fig 1: Fuel Lid Opener System Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
