Headlight Beam Level Control (Manual): Notes

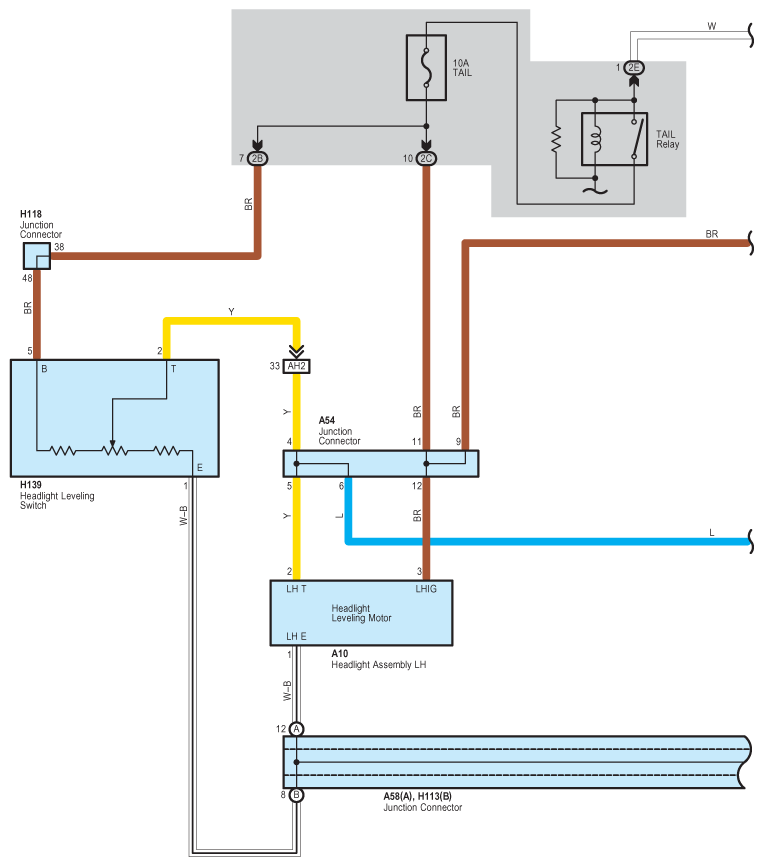

Fig 1: Manual Headlight Beam Level Control System Wiring Diagram (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

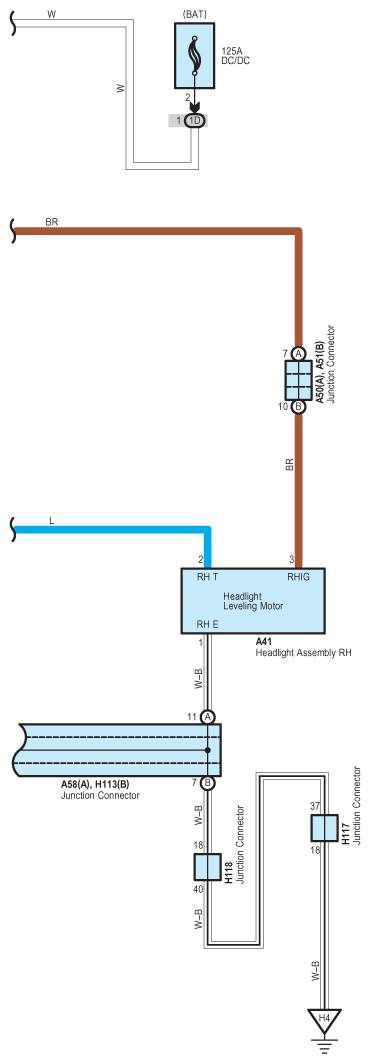

Fig 2: Manual Headlight Beam Level Control System Wiring Diagram (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
