: Ground Points

Code	See	Ground Points Location
A1	LOCATION OF CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS	Front Fender Apron RH
A3	LOCATION OF CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS	Front Fender Apron LH
H2	LOCATION OF CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS	Instrument Panel Brace LH
H4	LOCATION OF CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS	Instrument Panel Brace RH

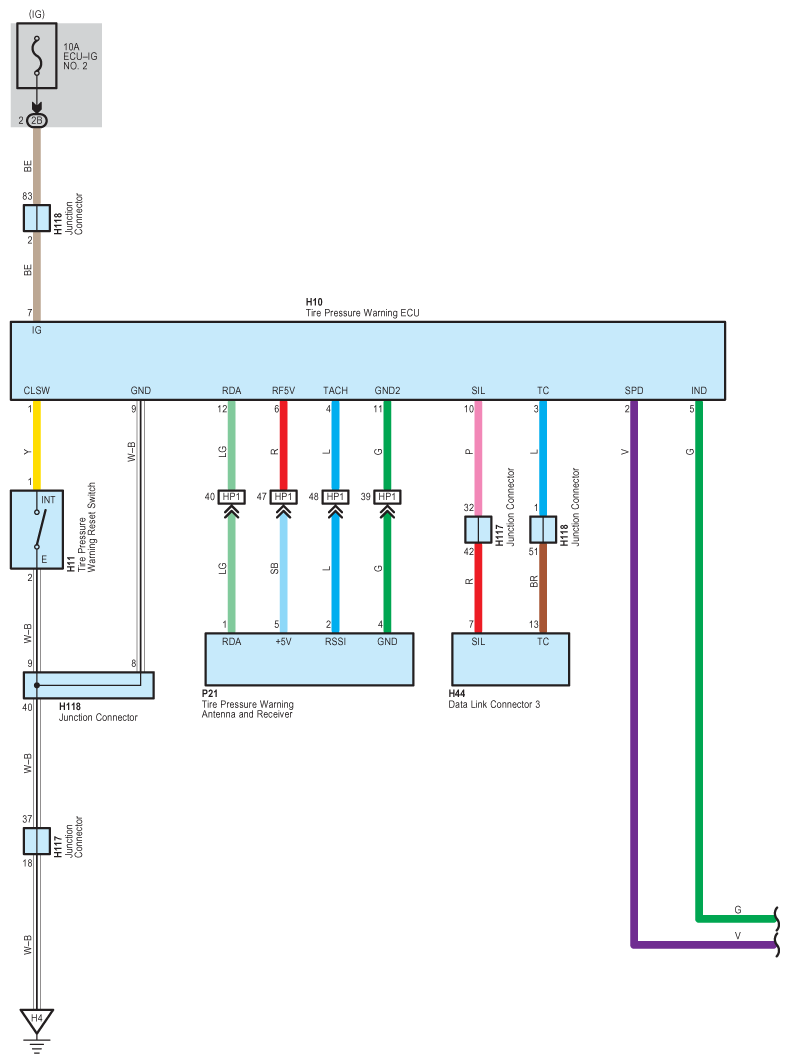

Fig 1: Tire Pressure Warning System Wiring Diagram (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

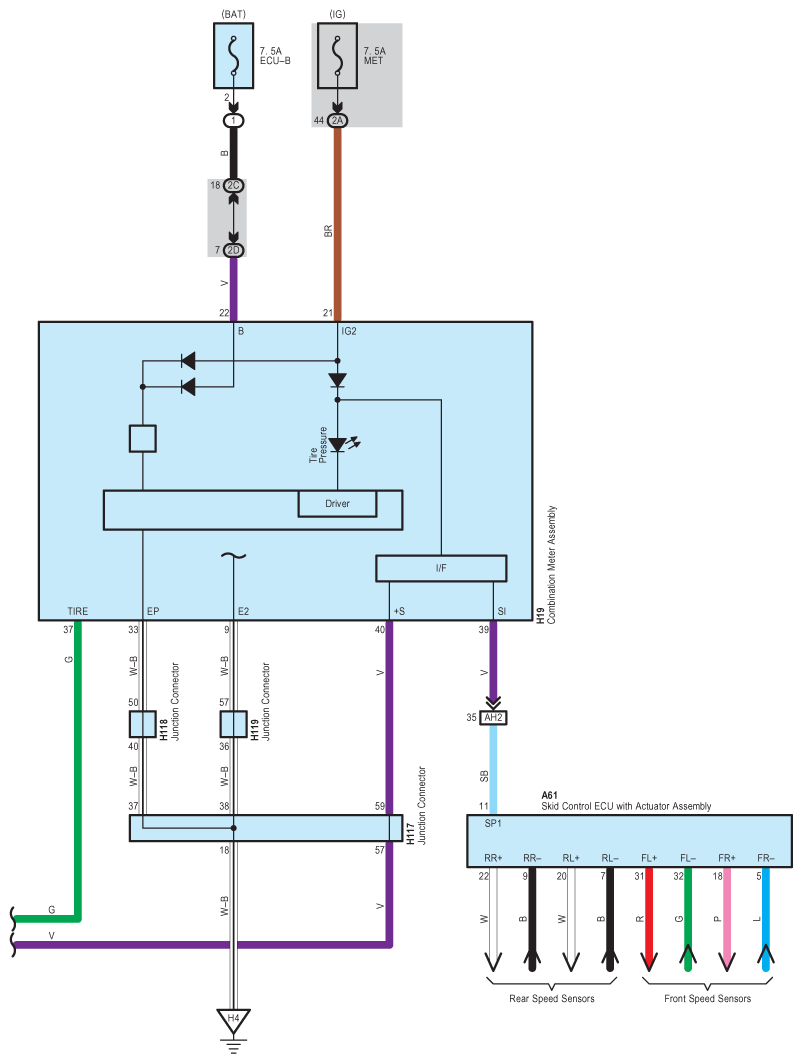

Fig 2: Tire Pressure Warning System Wiring Diagram (2 Of 2)

Code	See	Ground Points Location
H4	LOCATION OF CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS	Instrument Panel Brace RH
