Parts Location [06/2012 - ]: Illustration

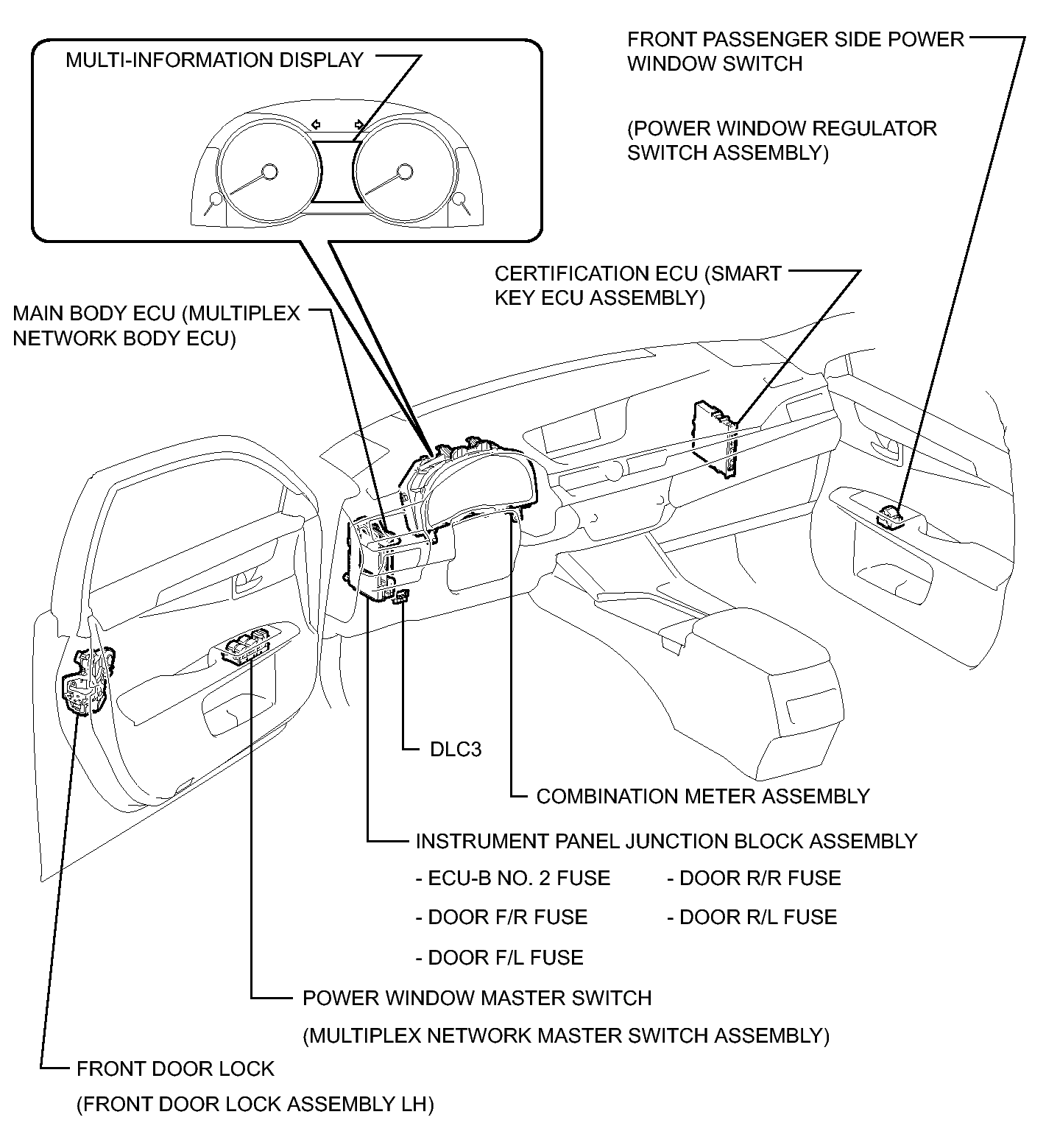

Fig 1: Identifying Power Window Control System Components Location (1 Of 2)
GTY412974Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

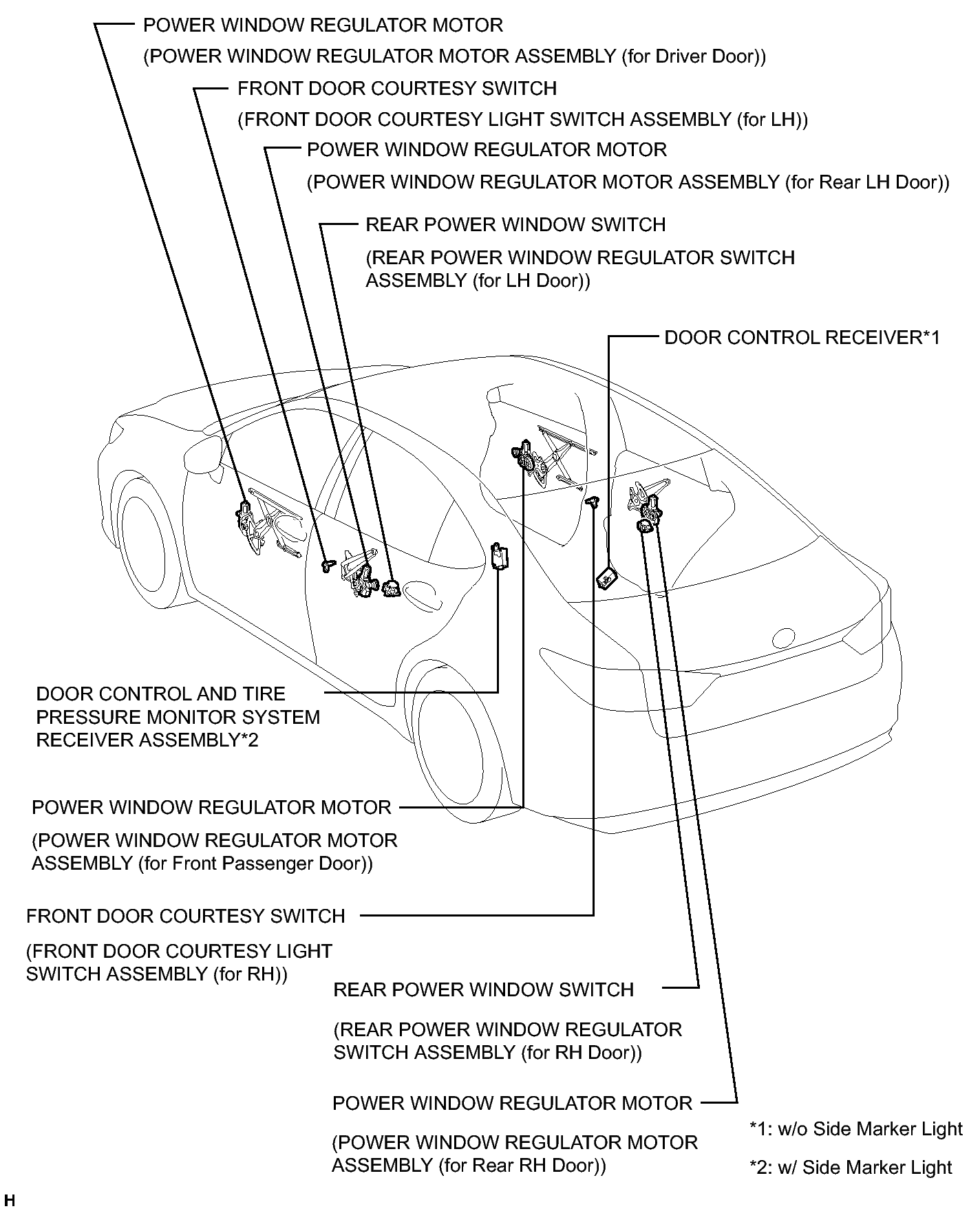

Fig 1: Identifying Power Window Control System Components Location (2 Of 2)
GTY397008Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
