OEM System Circuits: Ignition: Notes

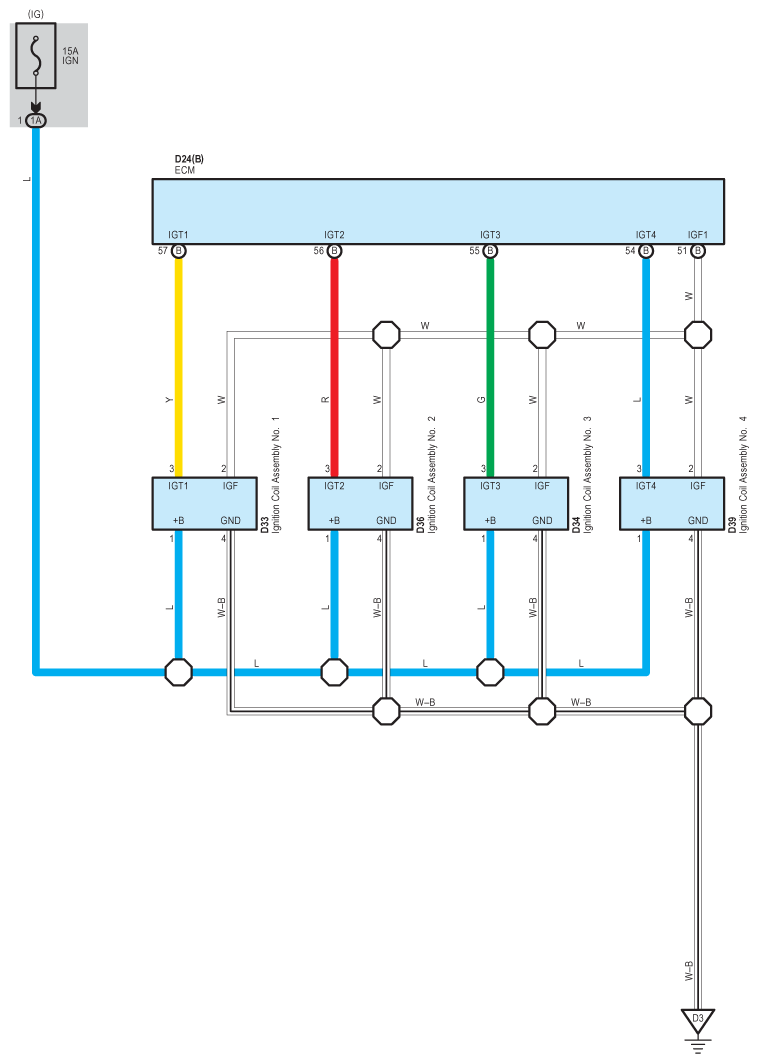

Fig 1: Ignition - Circuit Diagram

G08953617

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
