Power Seat (Driver's Seat w/Seat Position Memory): Notes

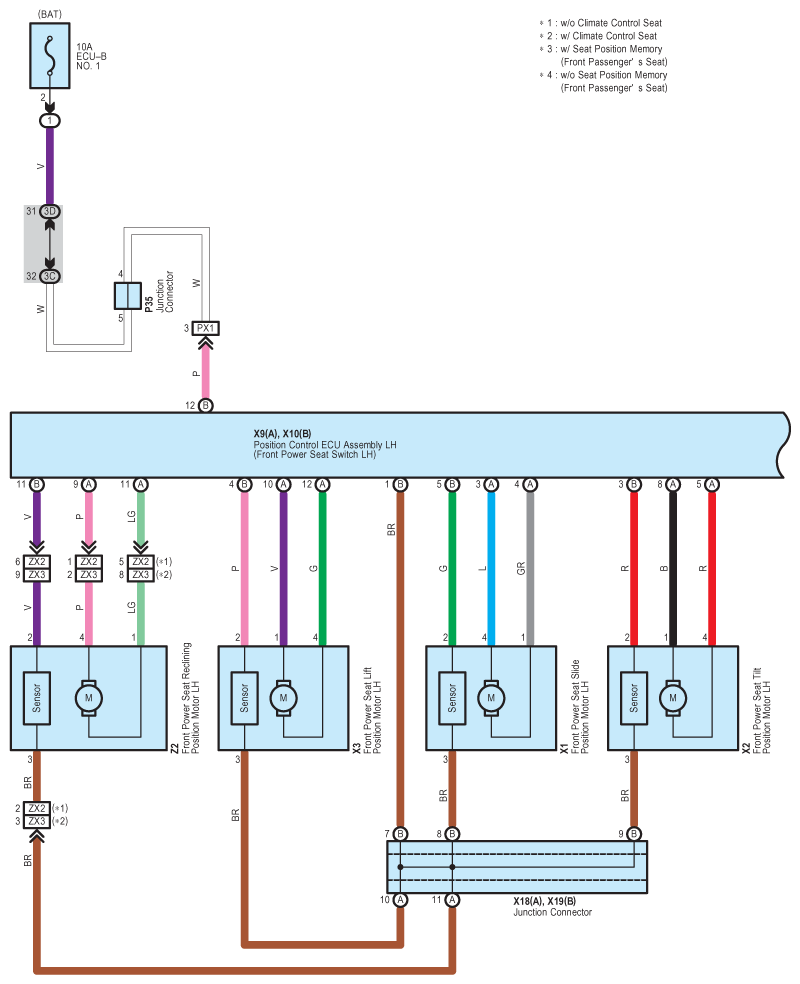

Fig 1: Power Seat (Driver's Seat W/ Seat Position Memory) - Circuit Diagram (1 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

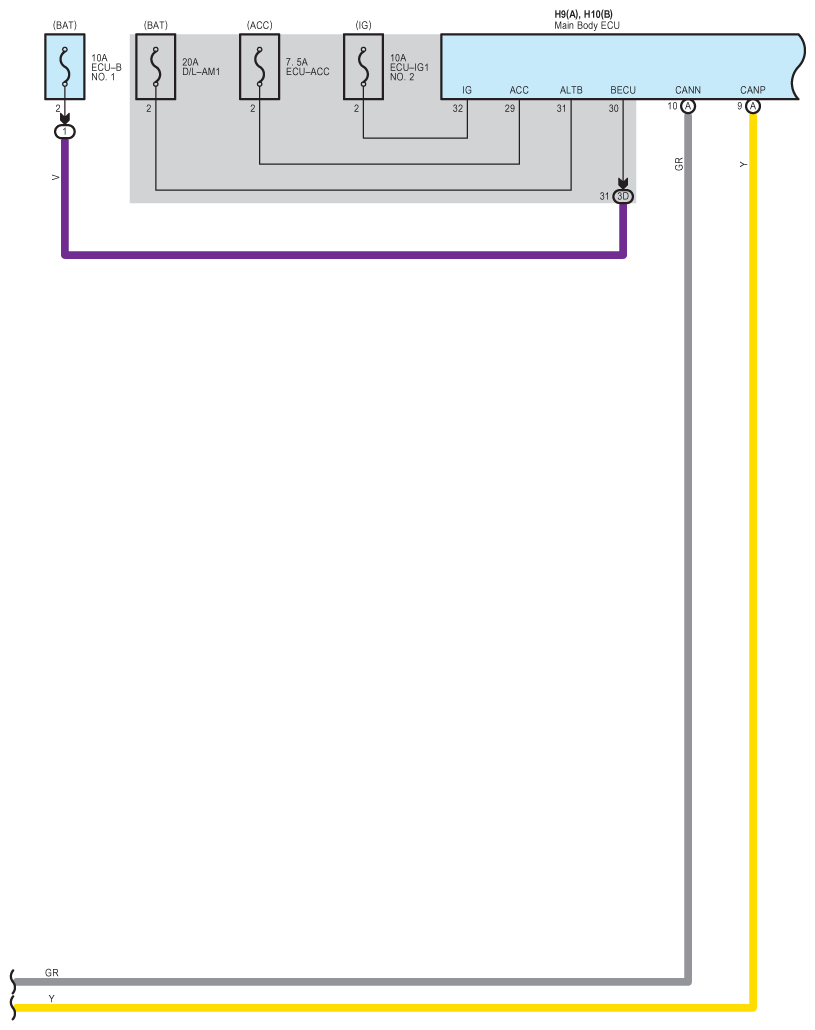

Fig 2: Power Seat (Driver's Seat W/ Seat Position Memory) - Circuit Diagram (2 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

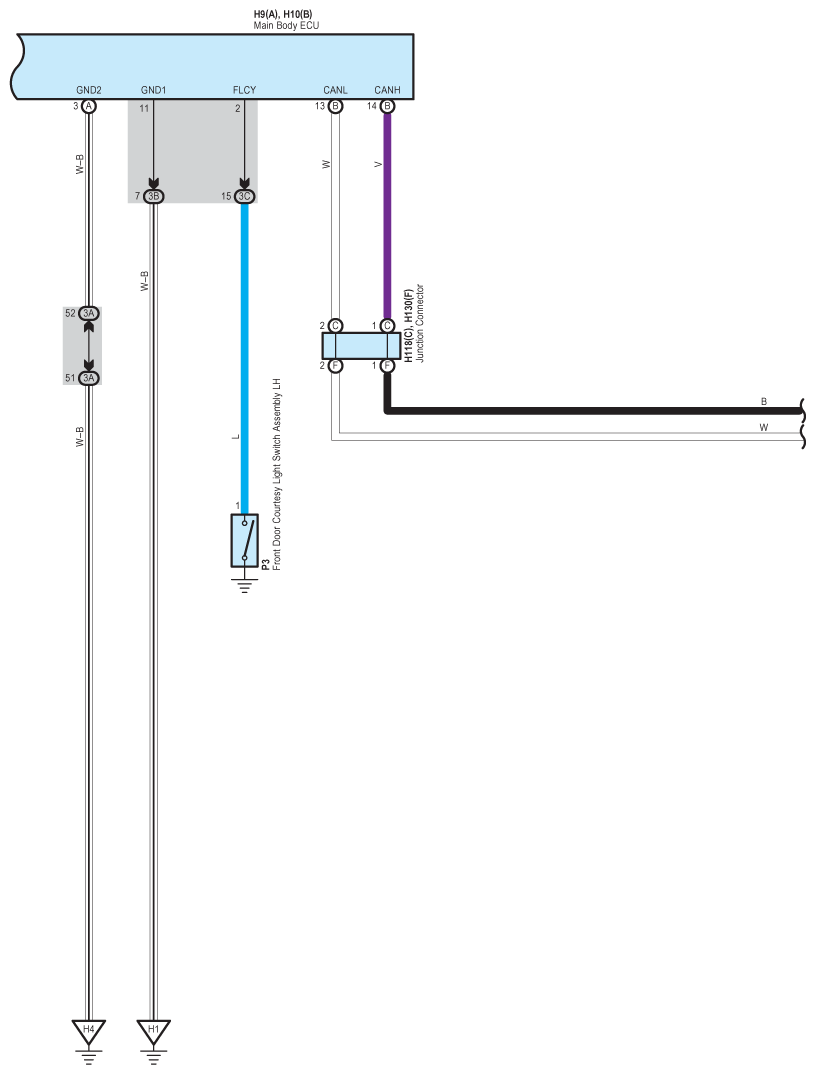

Fig 3: Power Seat (Driver's Seat W/ Seat Position Memory) - Circuit Diagram (3 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

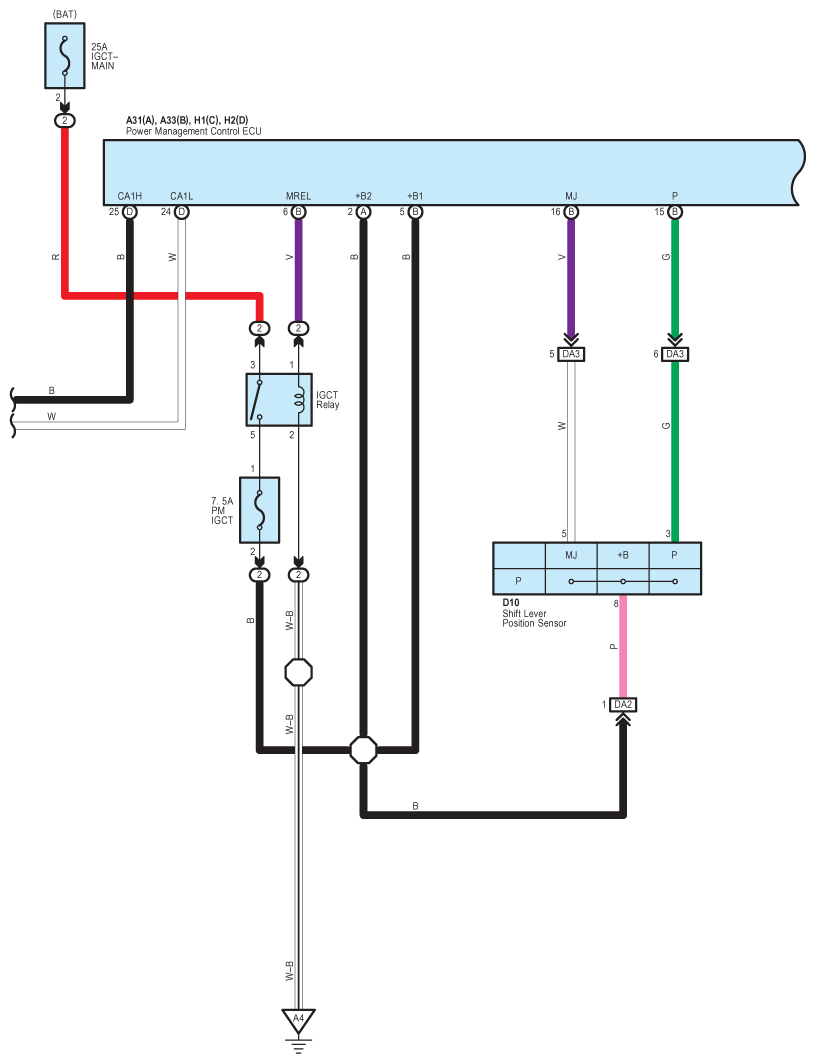

Fig 4: Power Seat (Driver's Seat W/ Seat Position Memory) - Circuit Diagram (4 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

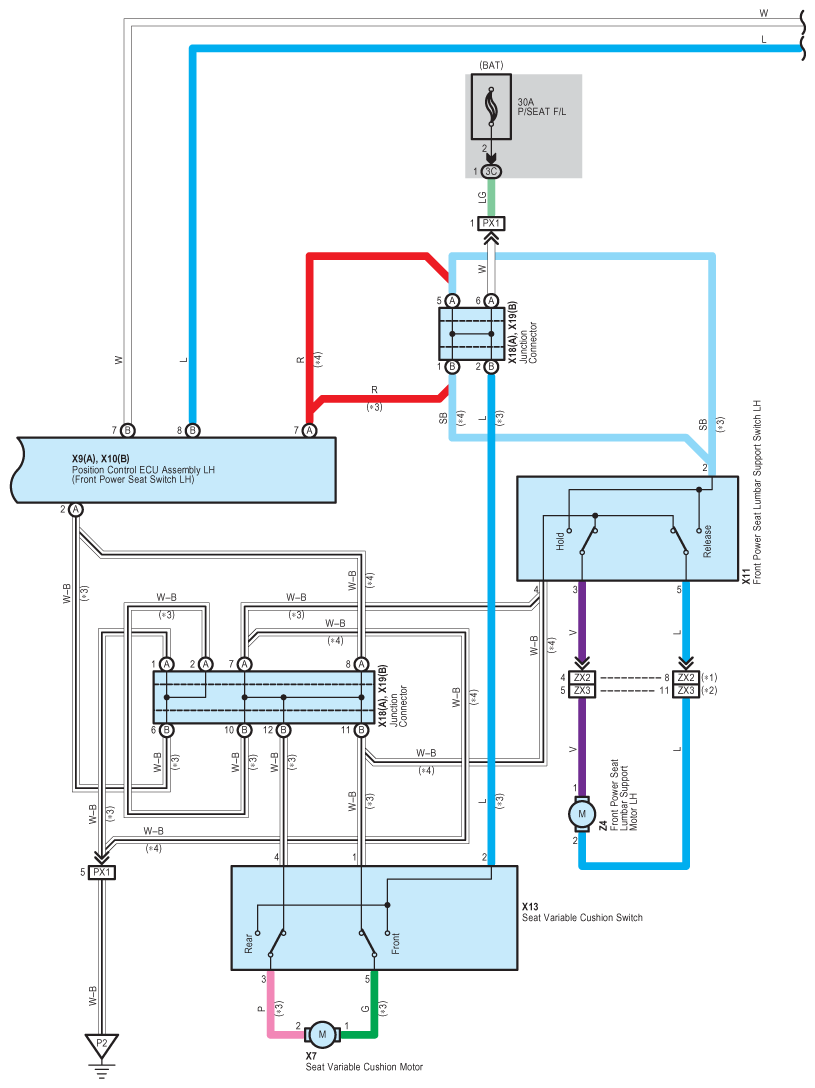

Fig 5: Power Seat (Driver's Seat W/ Seat Position Memory) - Circuit Diagram (5 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

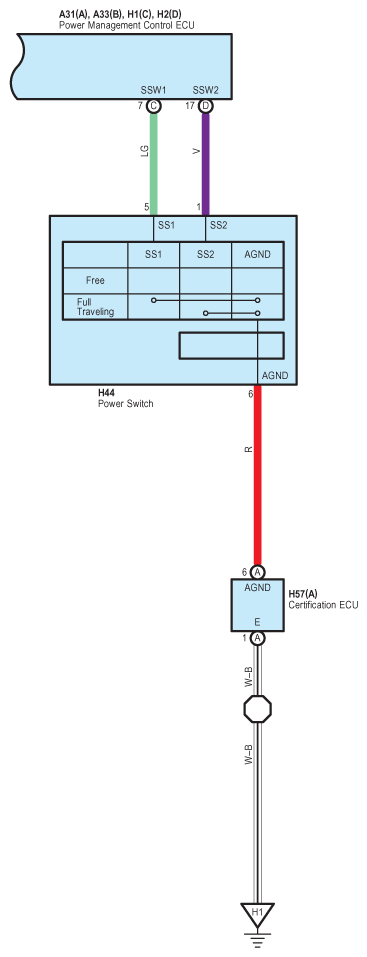

Fig 6: Power Seat (Driver's Seat W/ Seat Position Memory) - Circuit Diagram (6 Of 8)

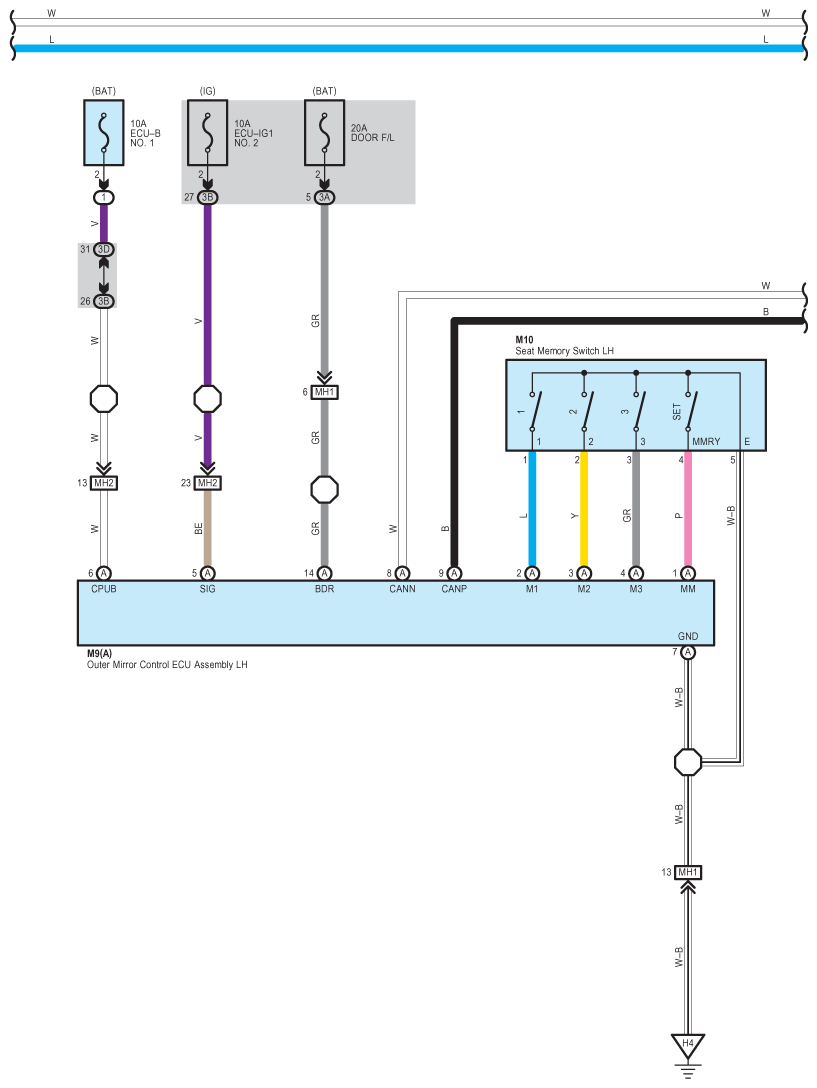

Fig 7: Power Seat (Driver's Seat W/ Seat Position Memory) - Circuit Diagram (7 Of 8)

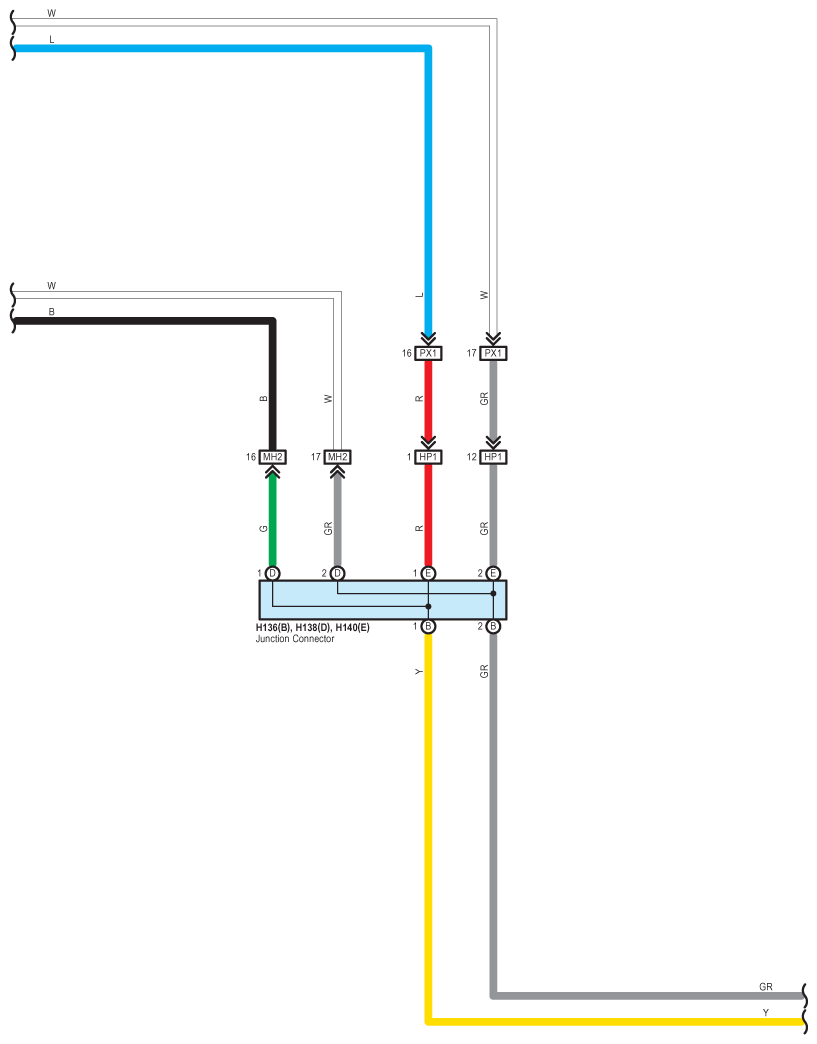

Fig 8: Power Seat (Driver's Seat W/ Seat Position Memory) - Circuit Diagram (8 Of 8)
