Wiper and Washer (w/Auto Wiper System): Notes

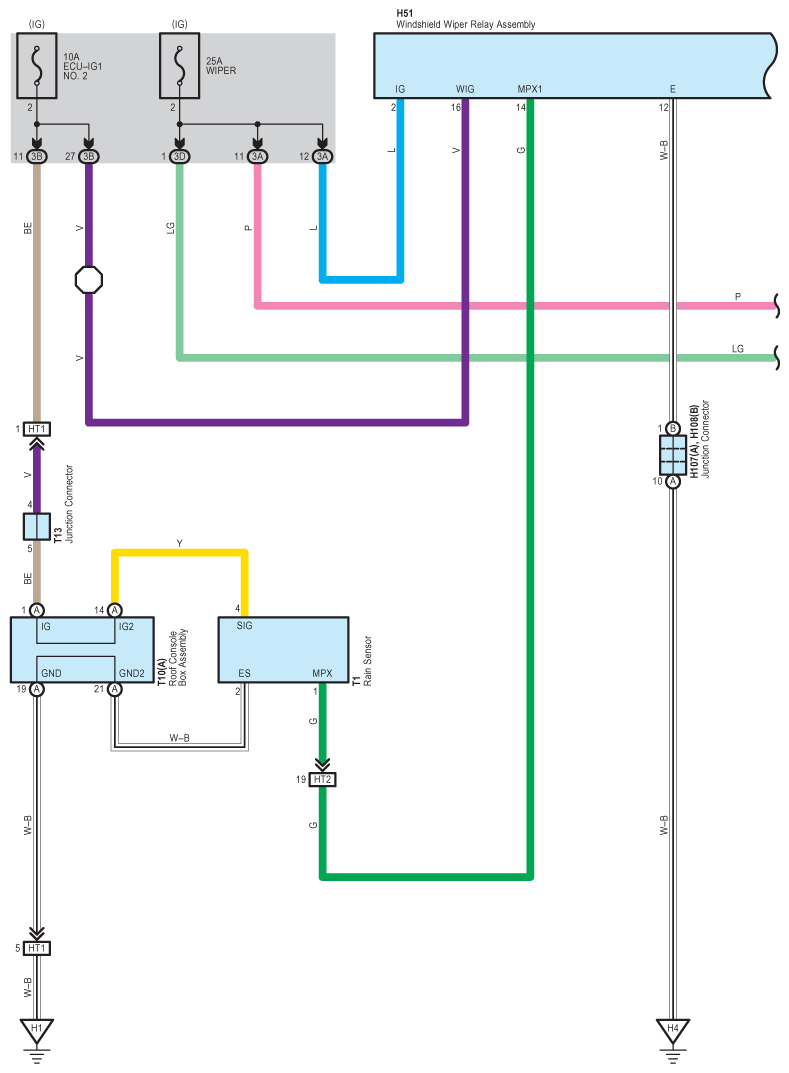

Fig 1: Wiper And Washer (W/ Auto Wiper System) - Circuit Diagram (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Wiper And Washer (W/ Auto Wiper System) - Circuit Diagram (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

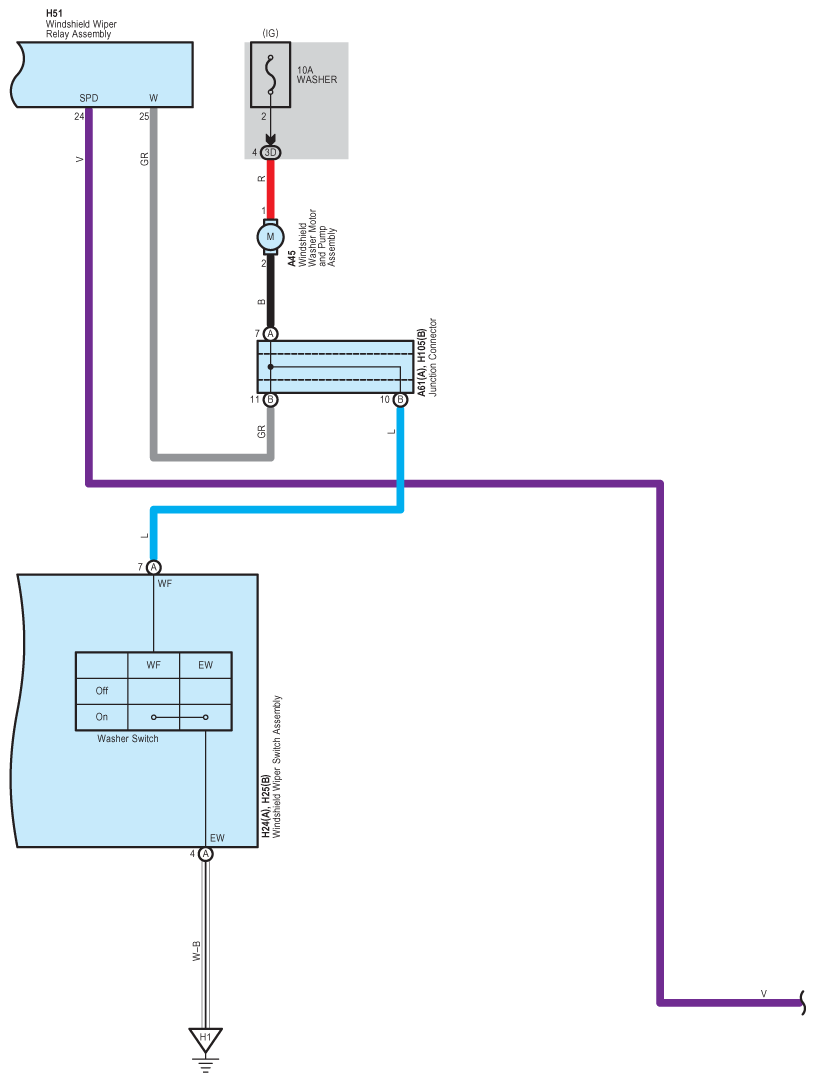

Fig 3: Wiper And Washer (W/ Auto Wiper System) - Circuit Diagram (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

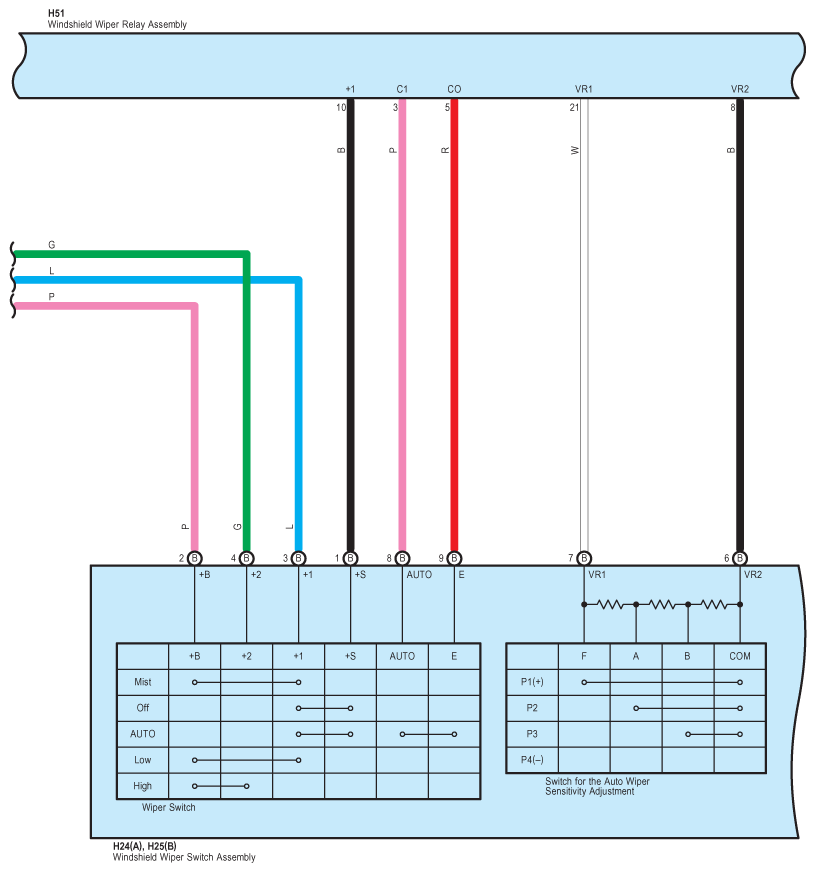

Fig 4: Wiper And Washer (W/ Auto Wiper System) - Circuit Diagram (4 Of 5)

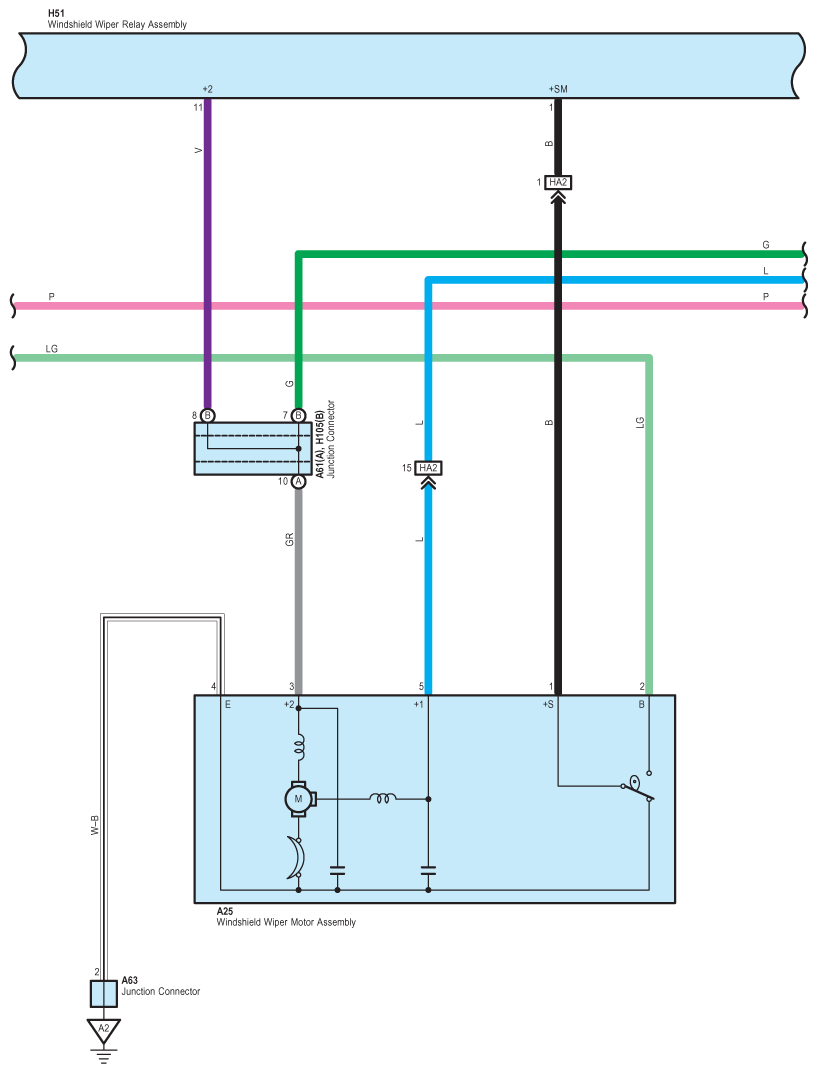

Fig 5: Wiper And Washer (W/ Auto Wiper System) - Circuit Diagram (5 Of 5)
