Components [06/2012 - ]: Illustration

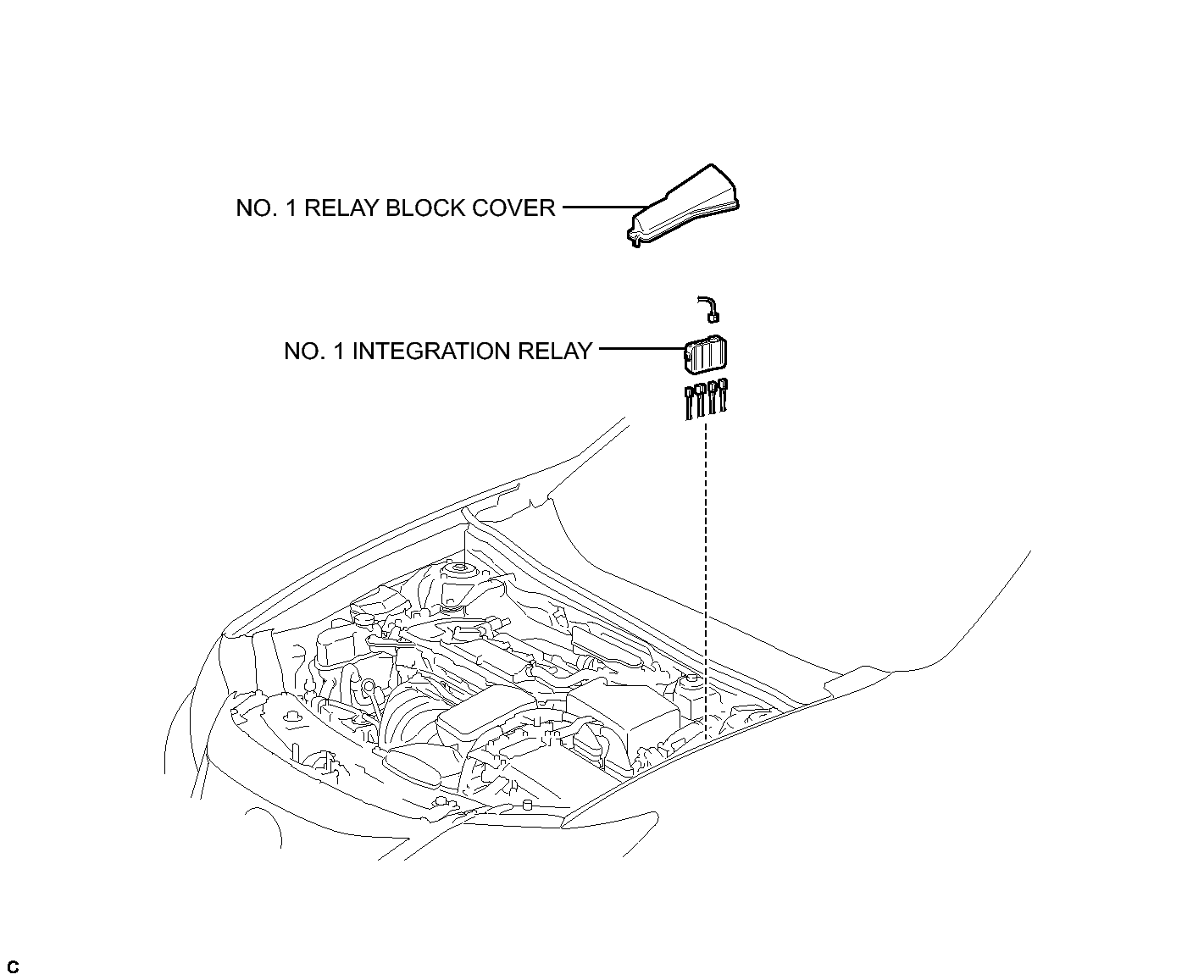

Fig 1: Identifying Integration Relay Replacement Components
GTY402066Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
