Front Fog Light: Notes — 2013 Lexus ES 350 Service Manual ~ FixVault

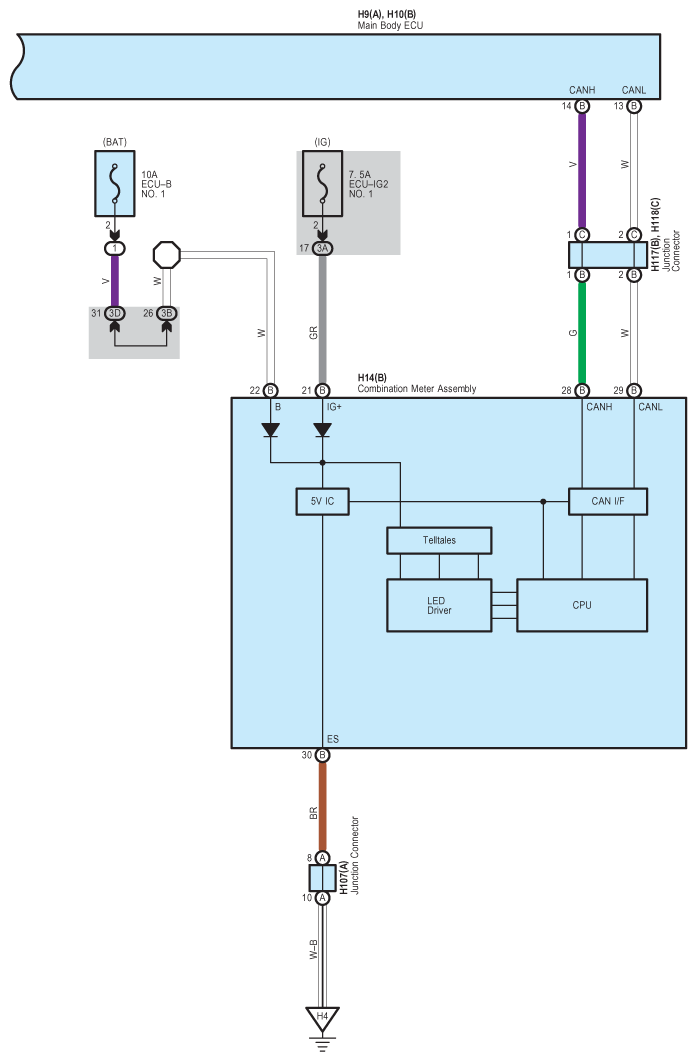

Fig 1: Front Fog Light - Circuit Diagram (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

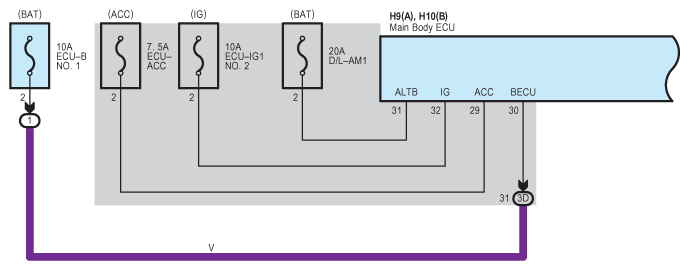

Fig 2: Front Fog Light - Circuit Diagram (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Front Fog Light - Circuit Diagram (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Front Fog Light - Circuit Diagram (4 Of 5)

Fig 5: Front Fog Light - Circuit Diagram (5 Of 5)
