OEM System Circuits: Horn: Notes

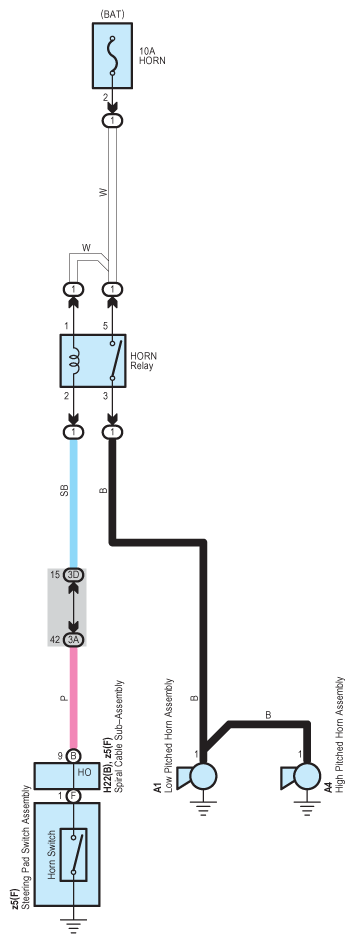

Fig 1: Horn - Circuit Diagram

G08948322

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
