Components [06/2012 - ]: Illustration

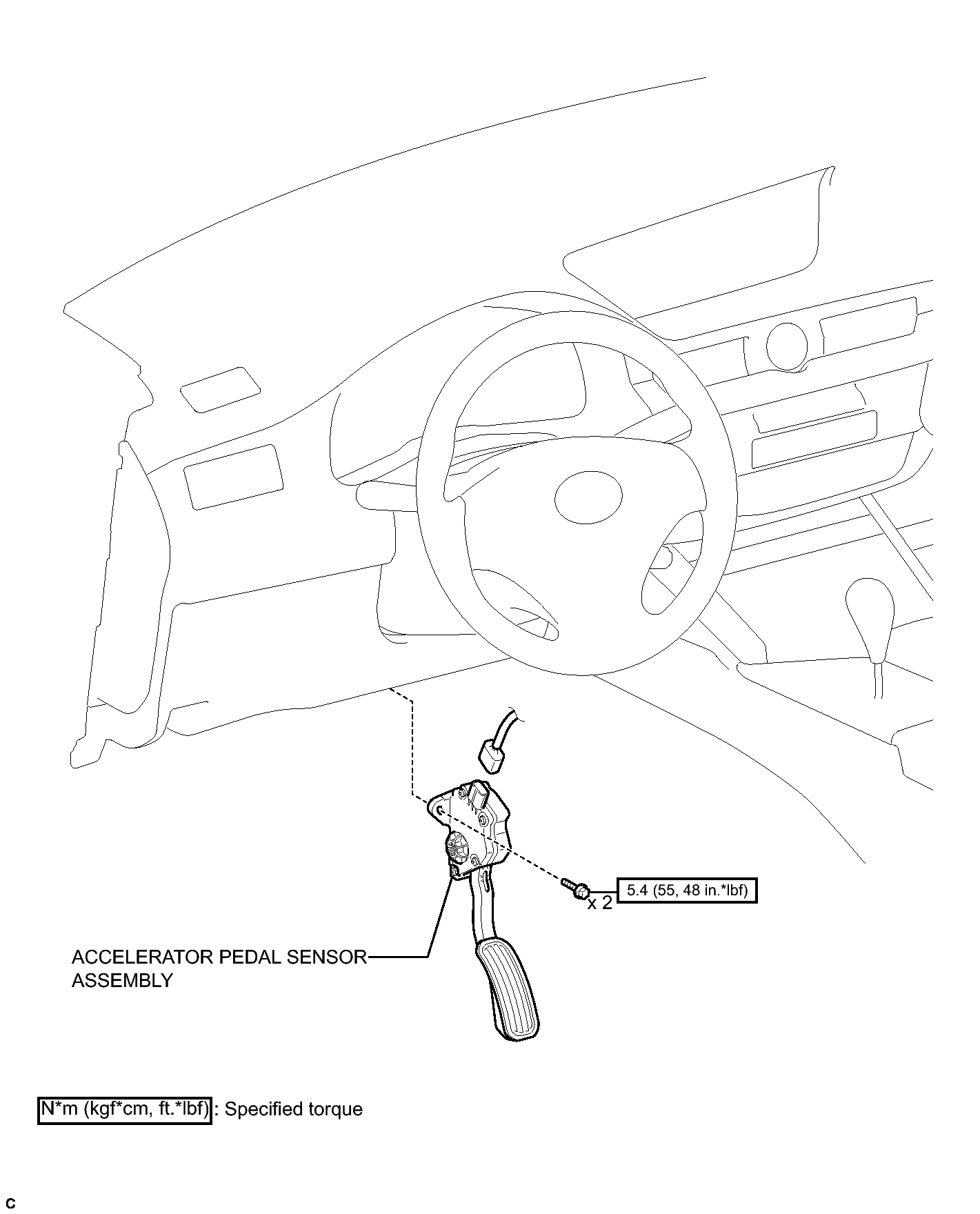

Fig 1: Identifying Accelerator Pedal Replacement Components With Torque Specifications
GTY407010Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
