Components [06/2012 - ]: Illustration

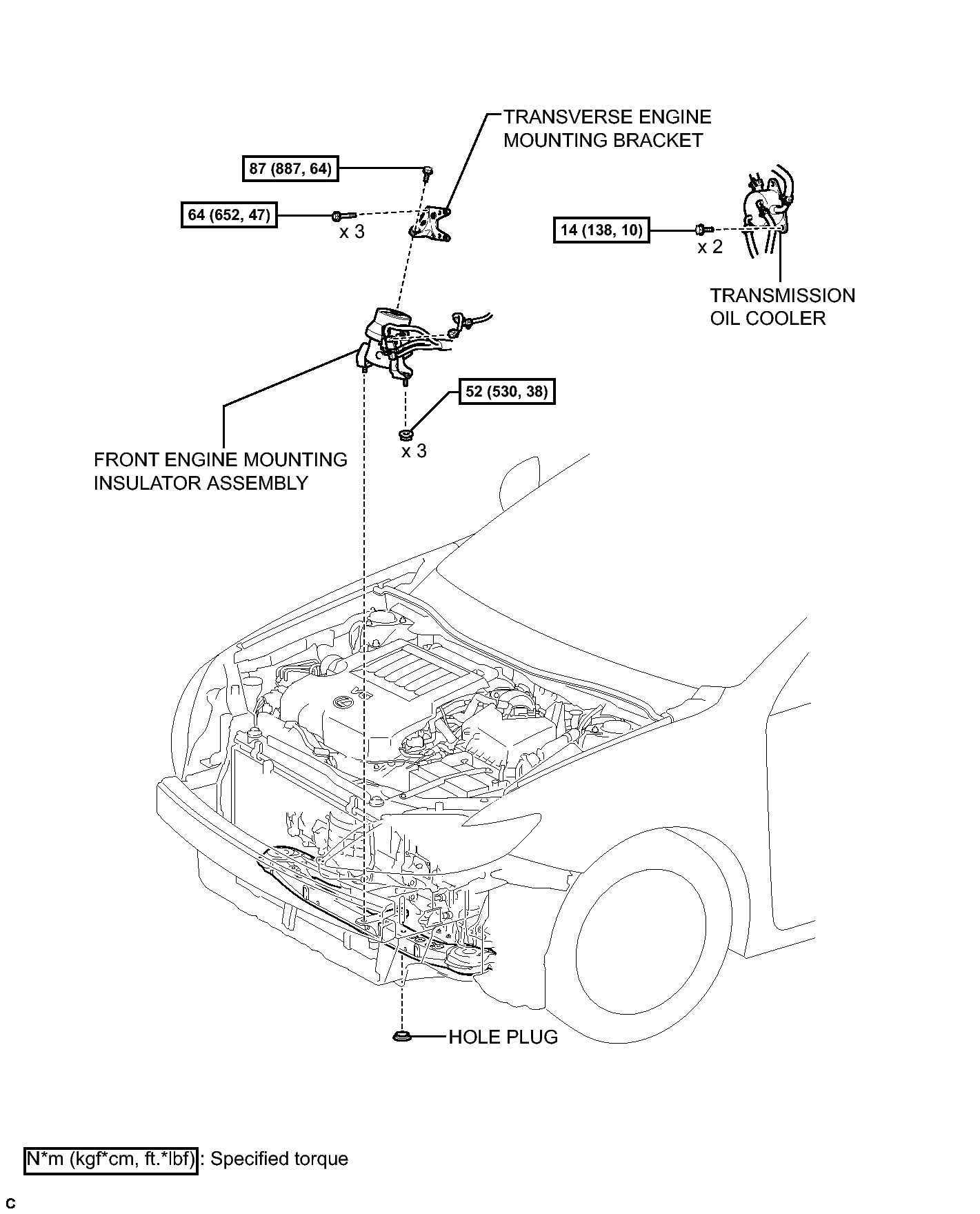

Fig 1: Identifying Active Control Engine Mount Replacement Components With Torque Specifications
GTY411206Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
