Components [06/2012 - ]
›
Illustration
Components [06/2012 - ]: Illustration

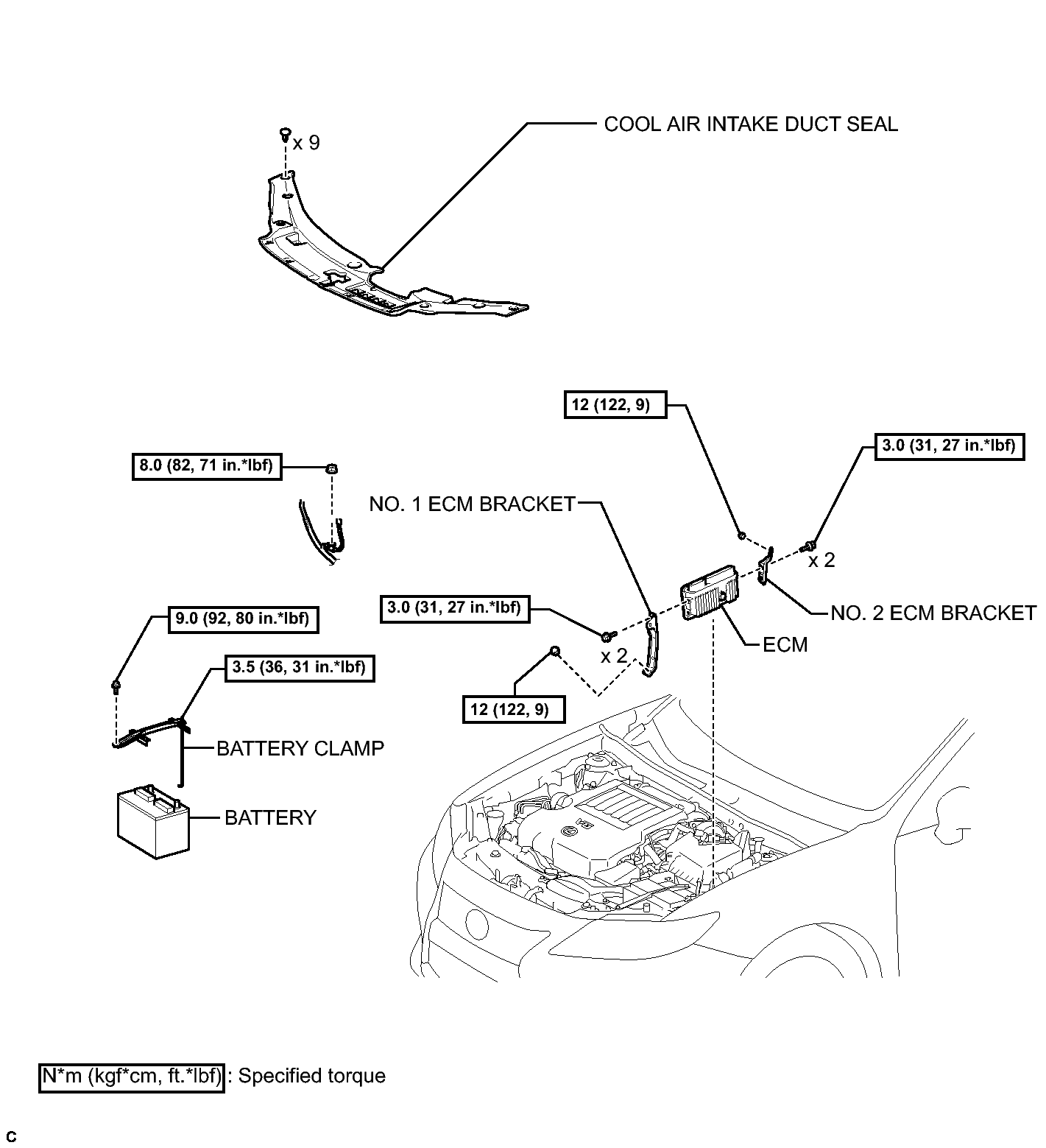

Fig 1: Identifying ECM Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
