Throttle Body
›
Components [06/2012 - ]
›
Illustration
Components [06/2012 - ]: Illustration

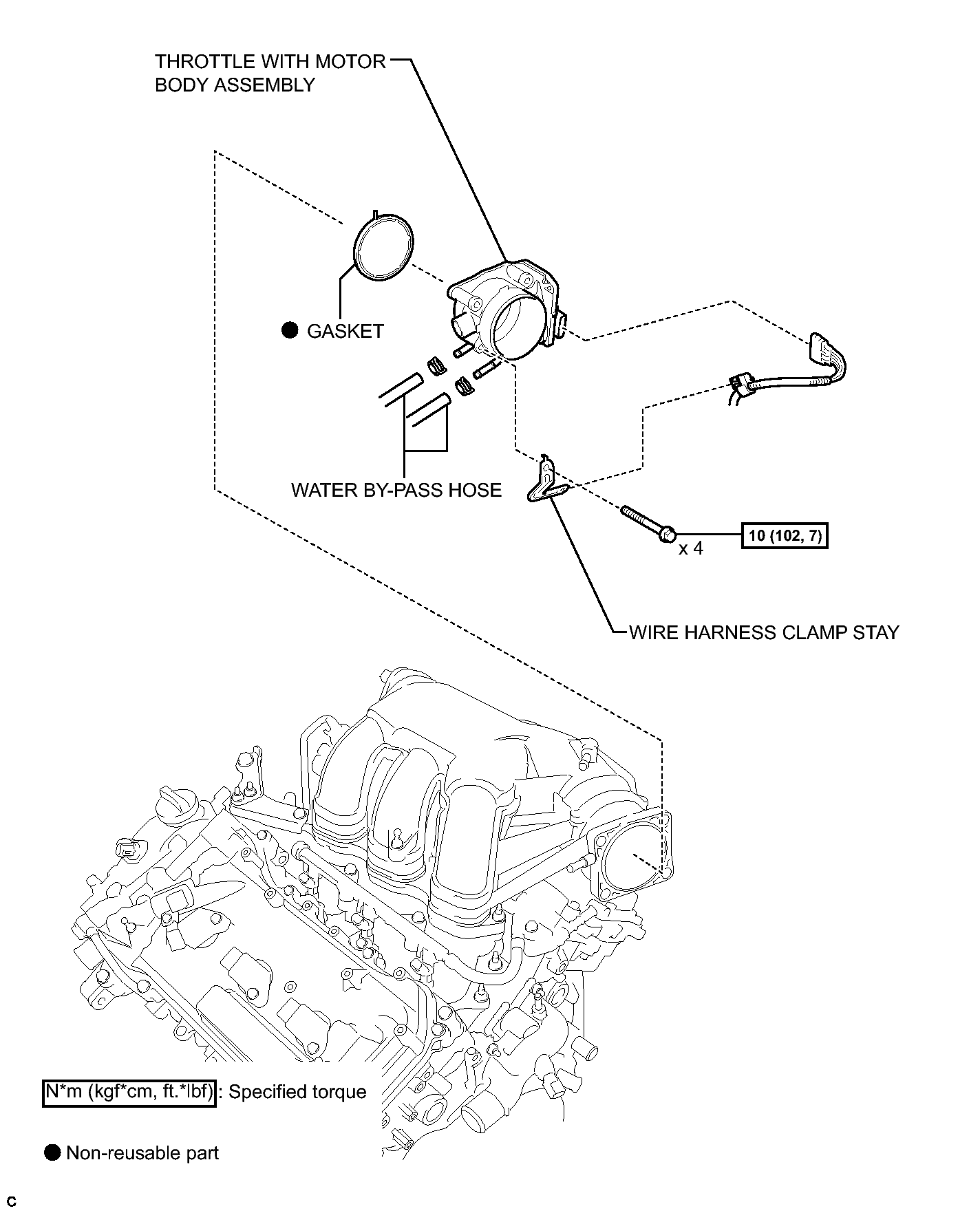

Fig 1: Identifying Throttle Body Replacement Components (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

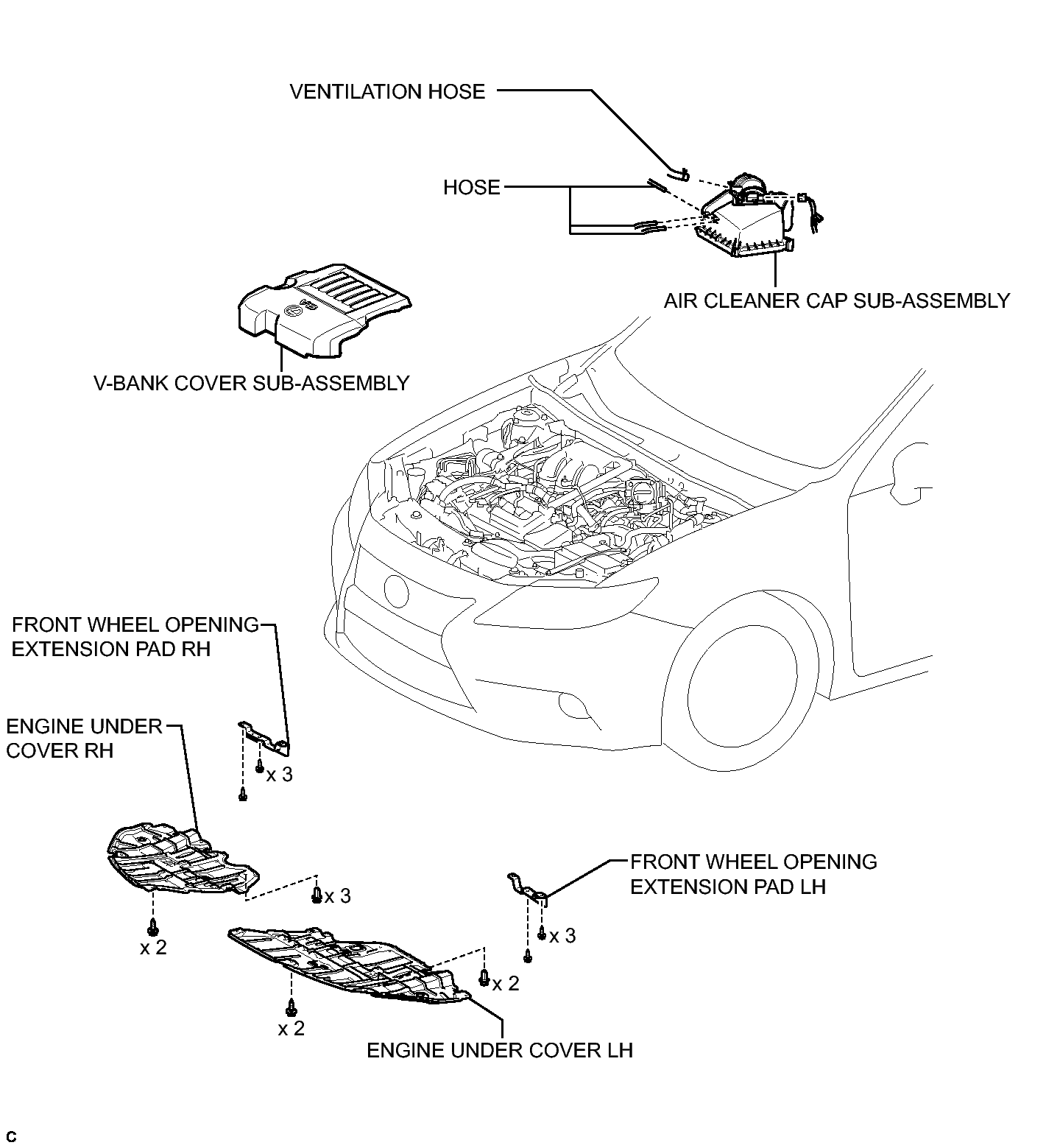

Fig 1: Identifying Throttle Body Replacement Components With Torque Specifications (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
