Components [12/2011 - ]: Illustration

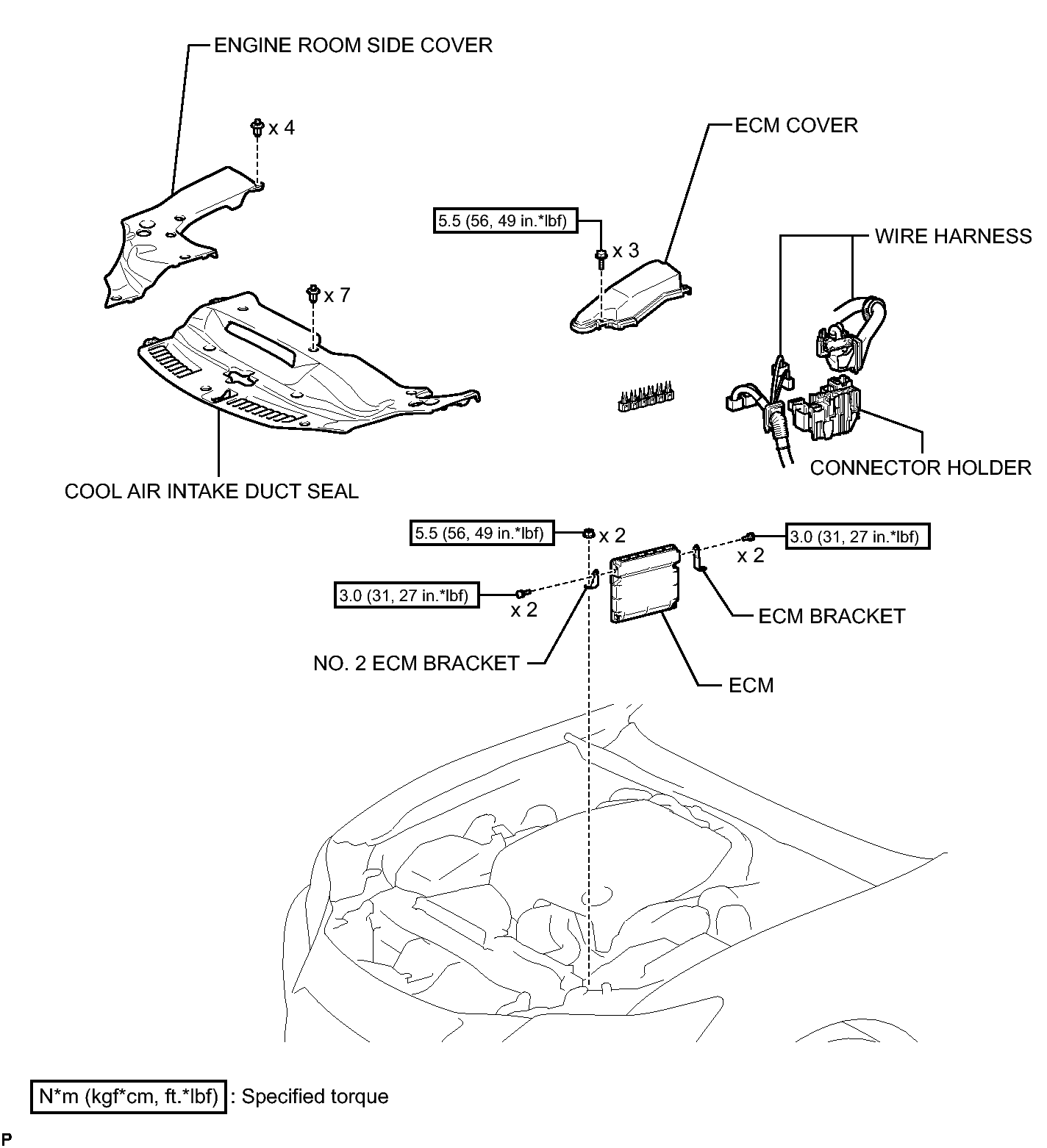

Fig 1: Identifying ECM Replacement Components With Torque Specifications

GTY418595

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
