Repair and Diagnosis (Single Page)
›
Electrical
›
Body Electrical
›
OEM System Circuits
›
LEXUS ENFORM or Safety Connect
›
Notes
LEXUS ENFORM or Safety Connect: Notes

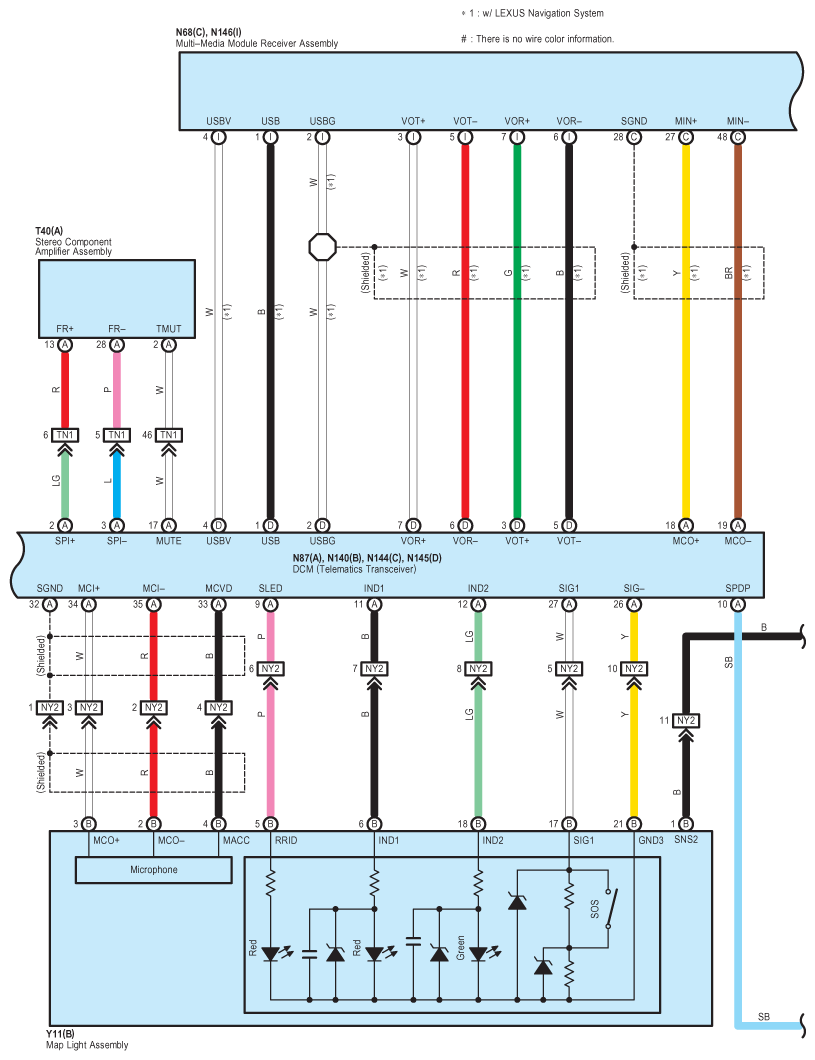

Fig 1: Lexus Enform Or Safety Connect Wiring Diagram (1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

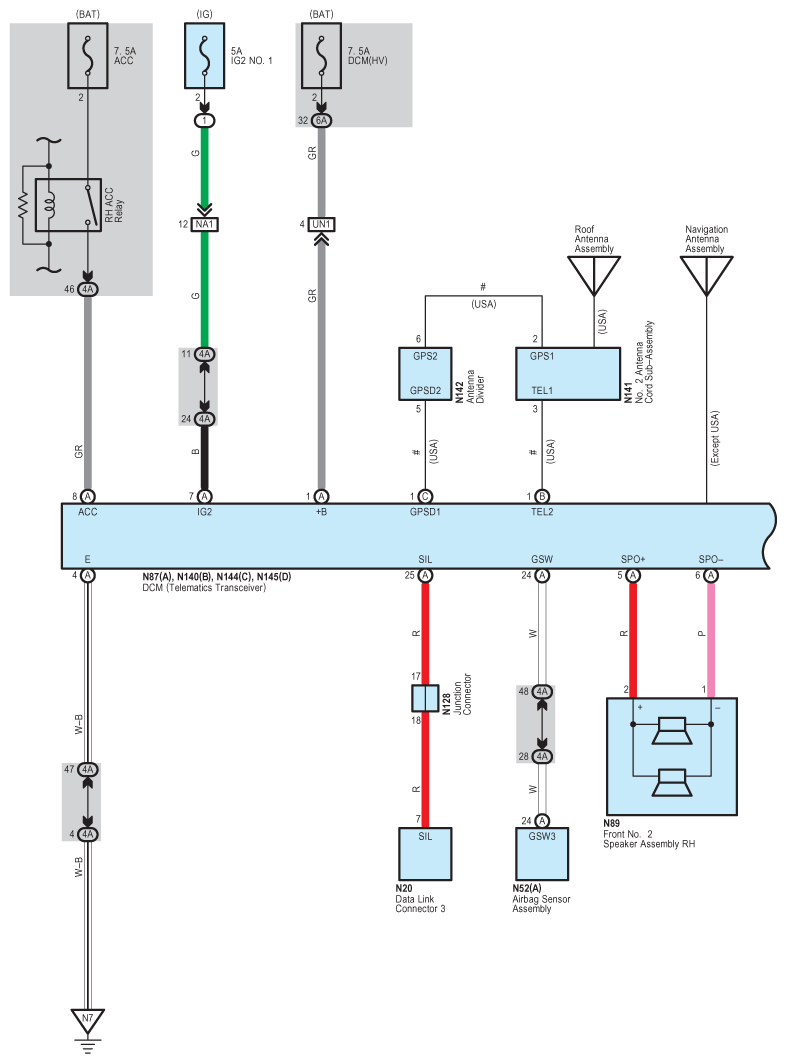

Fig 2: Lexus Enform Or Safety Connect Wiring Diagram (2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

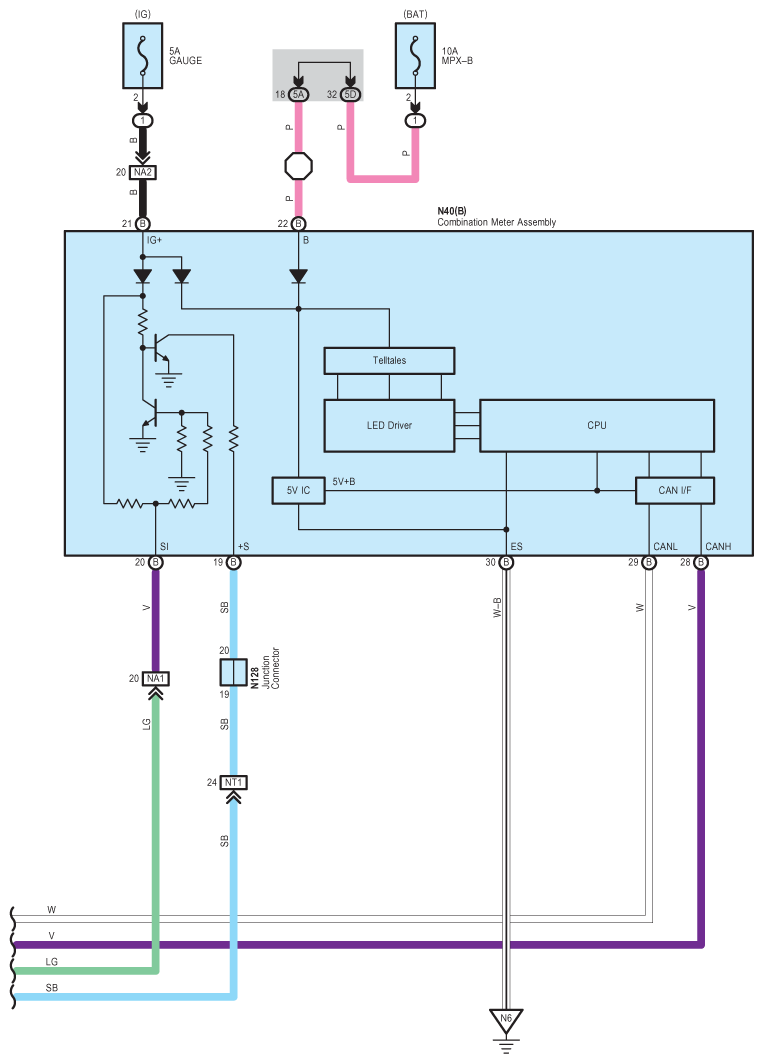

Fig 3: Lexus Enform Or Safety Connect Wiring Diagram (3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

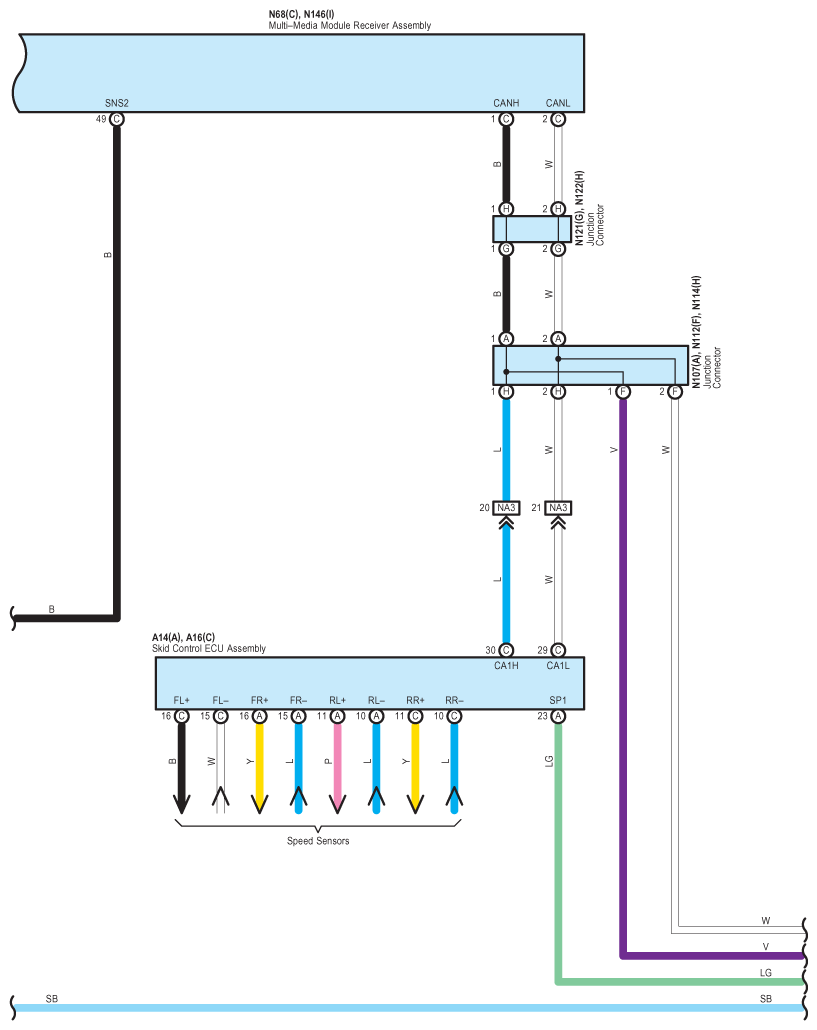

Fig 4: Lexus Enform Or Safety Connect Wiring Diagram (4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
