Electric Parking Brake: Notes

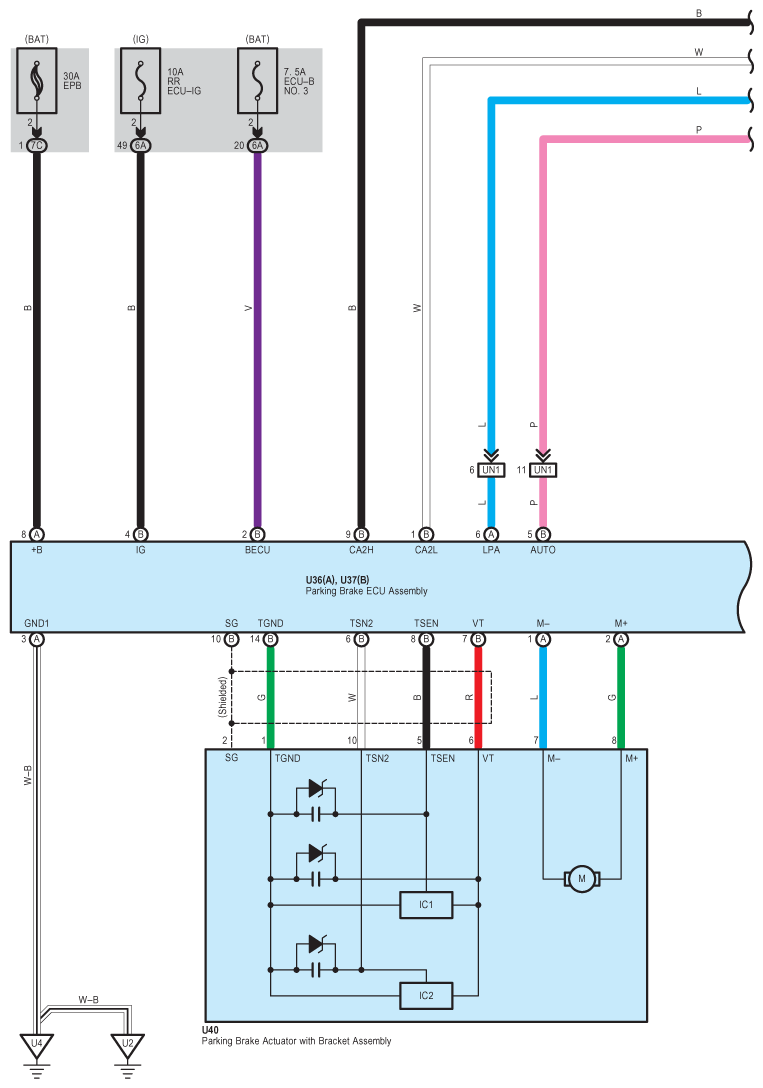

Fig 1: Electric Parking Brake Wiring Diagram (1 Of 6)
G09117900Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

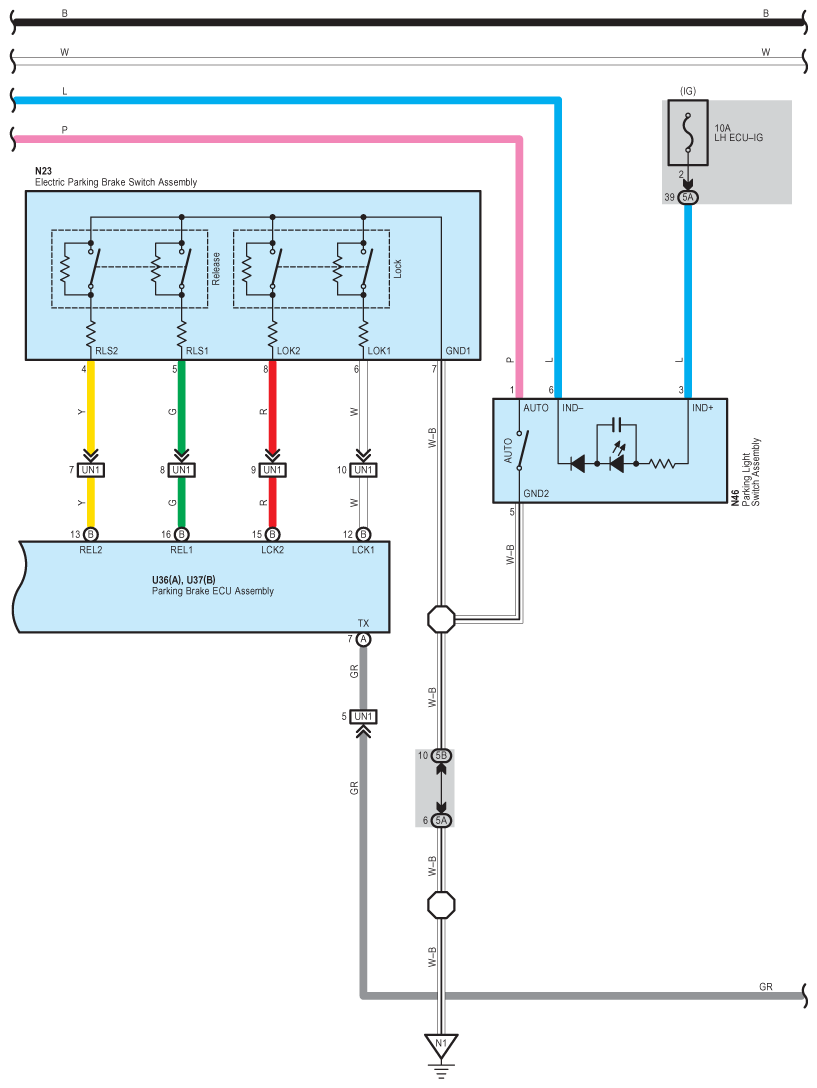

Fig 2: Electric Parking Brake Wiring Diagram (2 Of 6)
G09117901Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

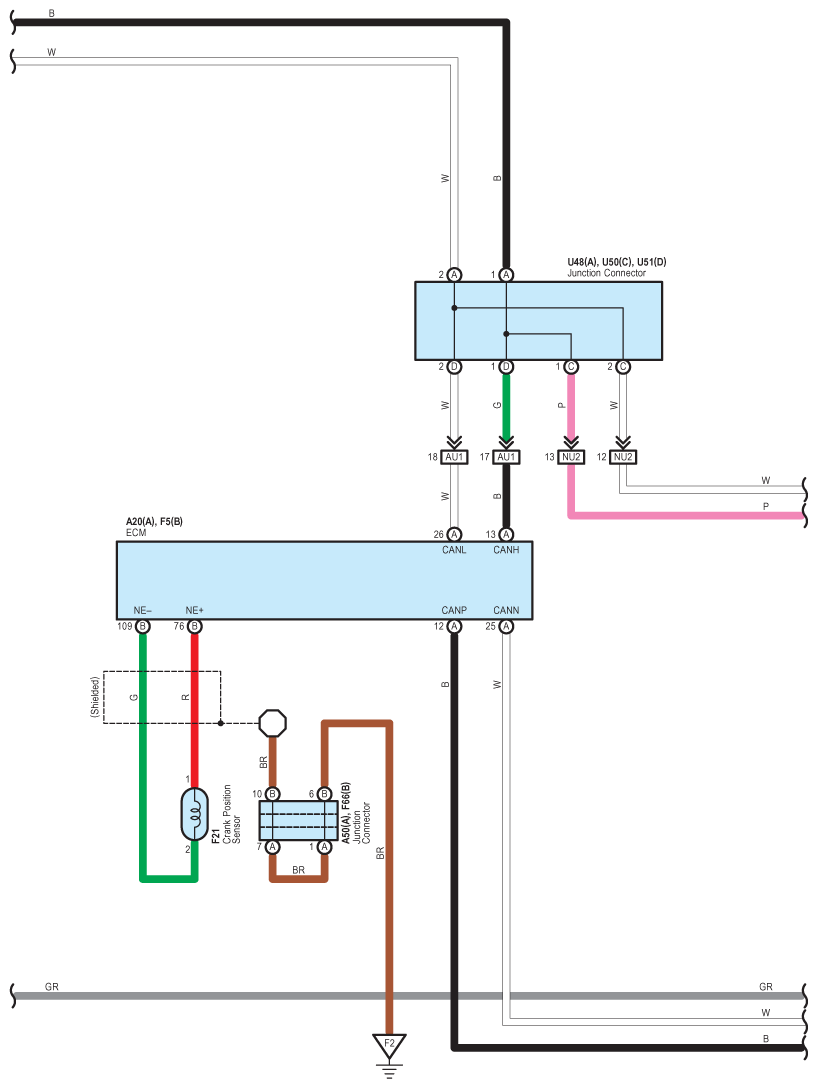

Fig 3: Electric Parking Brake Wiring Diagram (3 Of 6)
G09117902Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

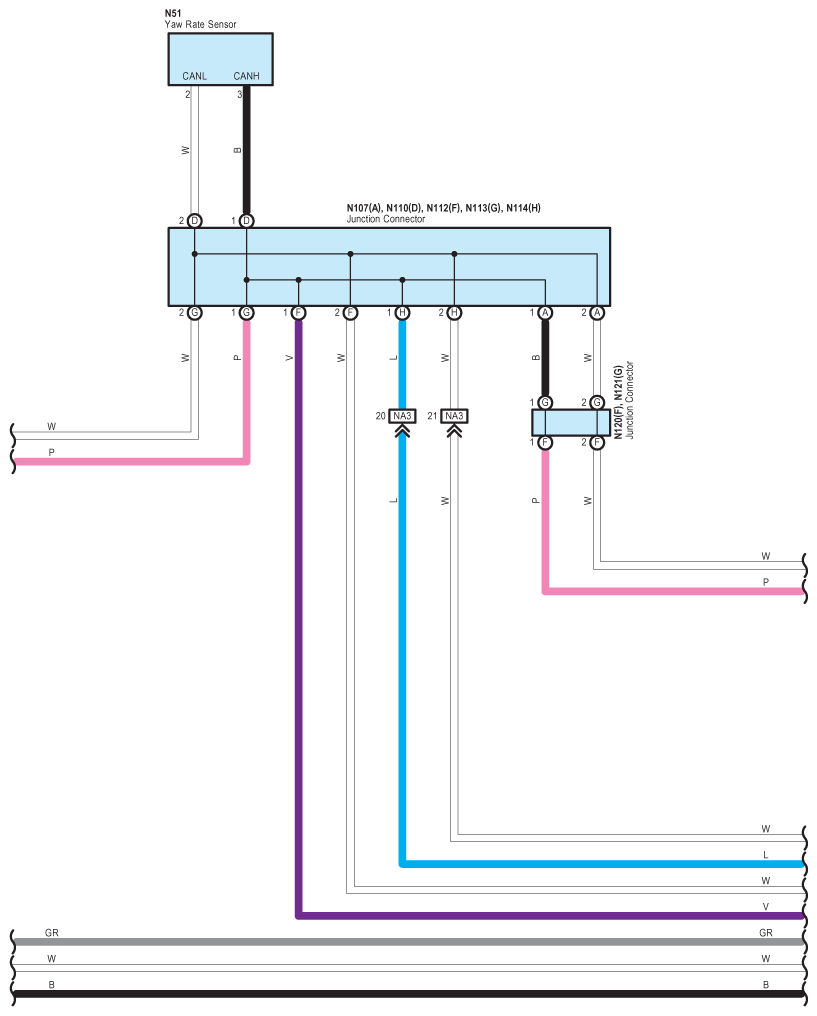

Fig 4: Electric Parking Brake Wiring Diagram (4 Of 6)
G09117903Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

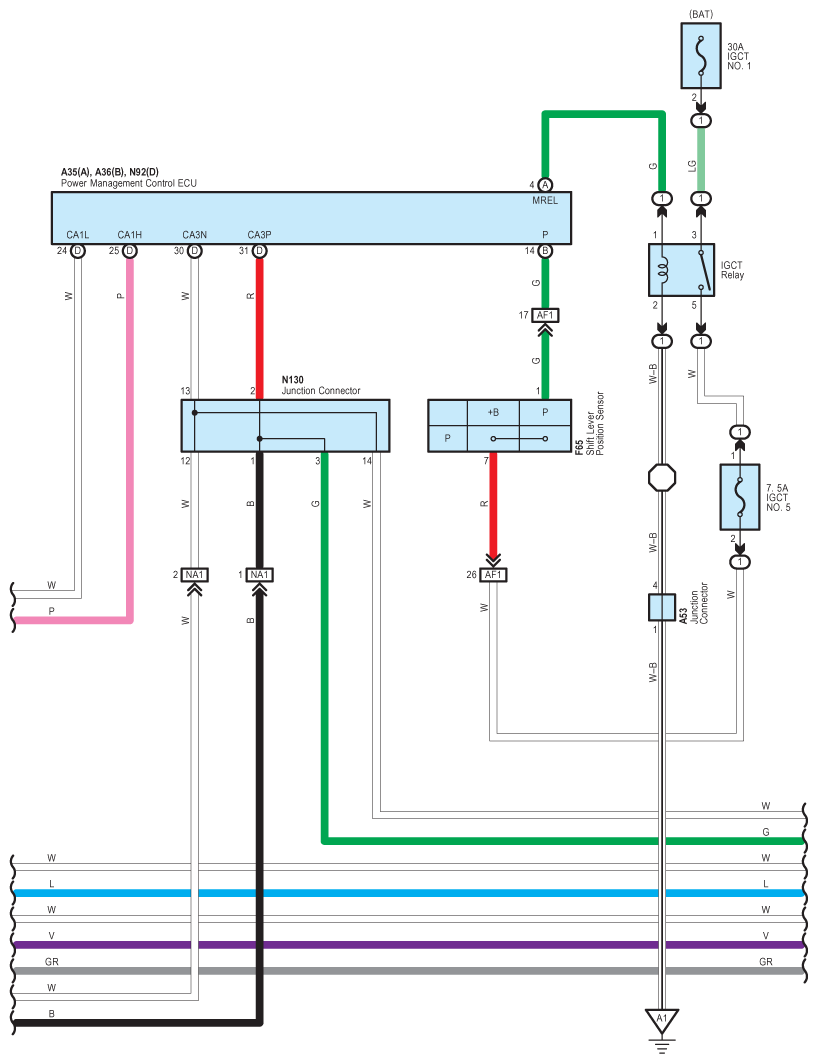

Fig 5: Electric Parking Brake Wiring Diagram (5 Of 6)
G09117904Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

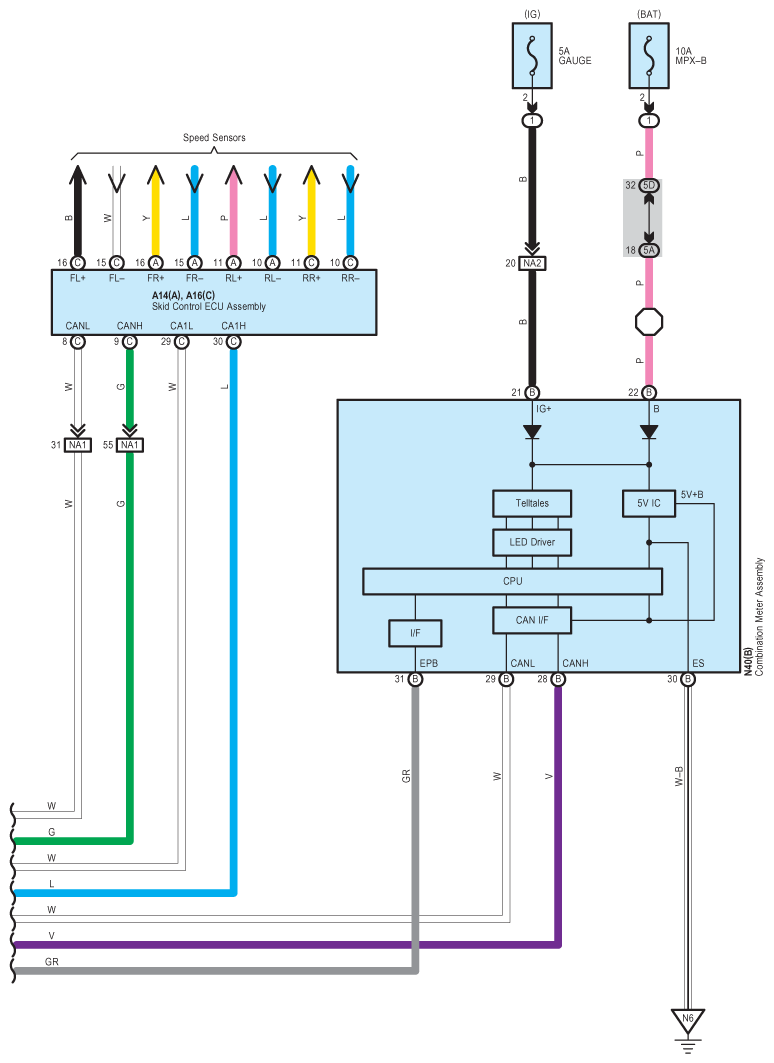

Fig 6: Electric Parking Brake Wiring Diagram (6 Of 6)
G09117905Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
