Driver Side Power Window does not Operate with Power Window Master Switch: Wiring Diagram

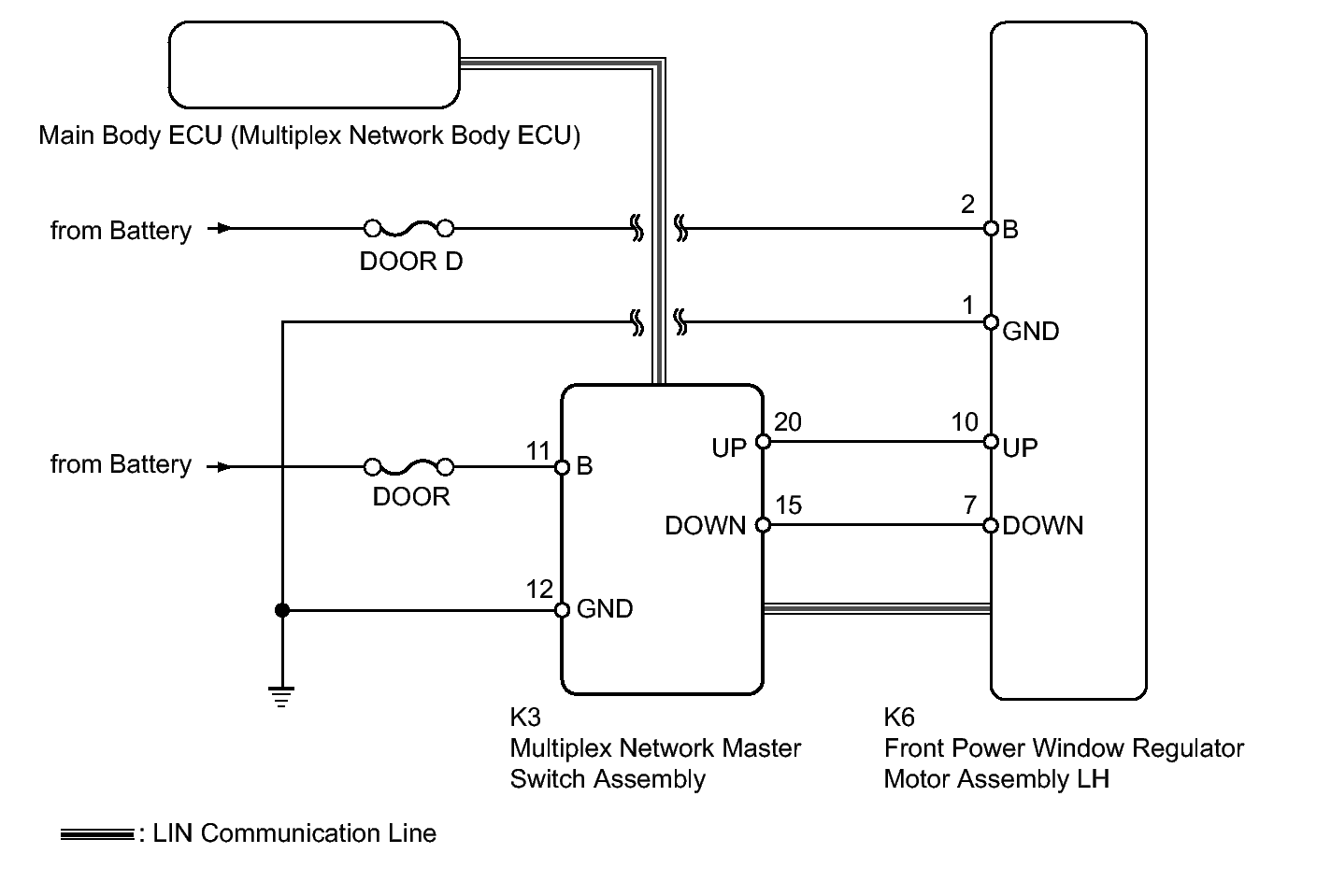

Fig 1: Power Window (Multiplex Network) Master Switch Wiring Diagram
GTY254885Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
