Condenser Fan: Notes

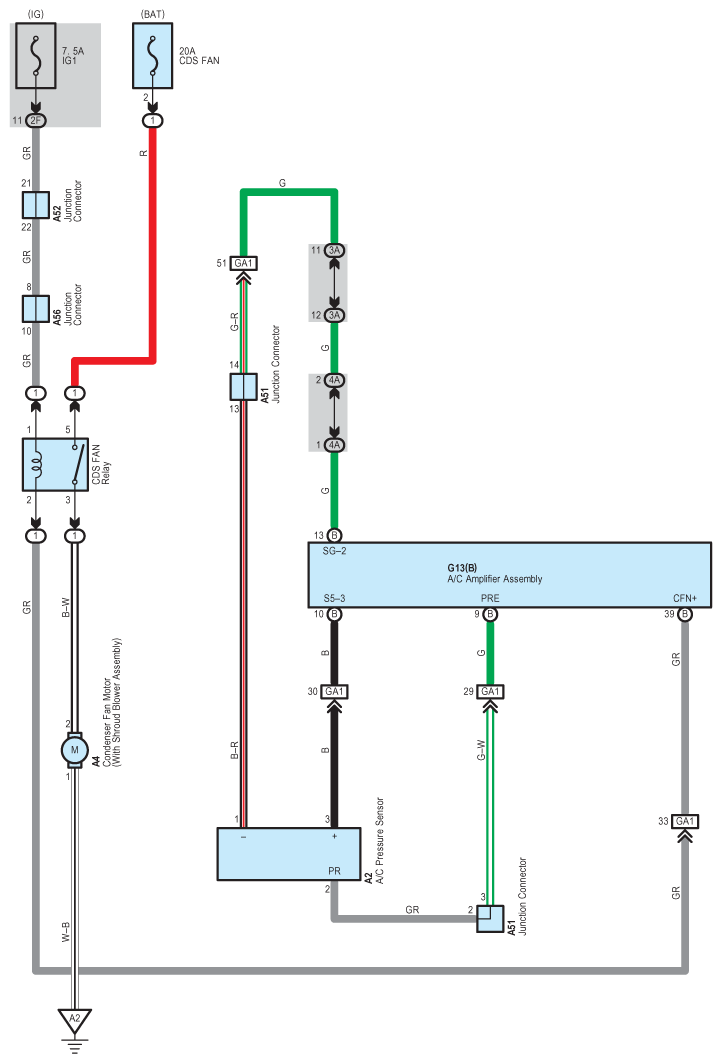

Fig 1: Condenser Fan - Wiring Diagram

G09114854

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
