Cool Box: Notes

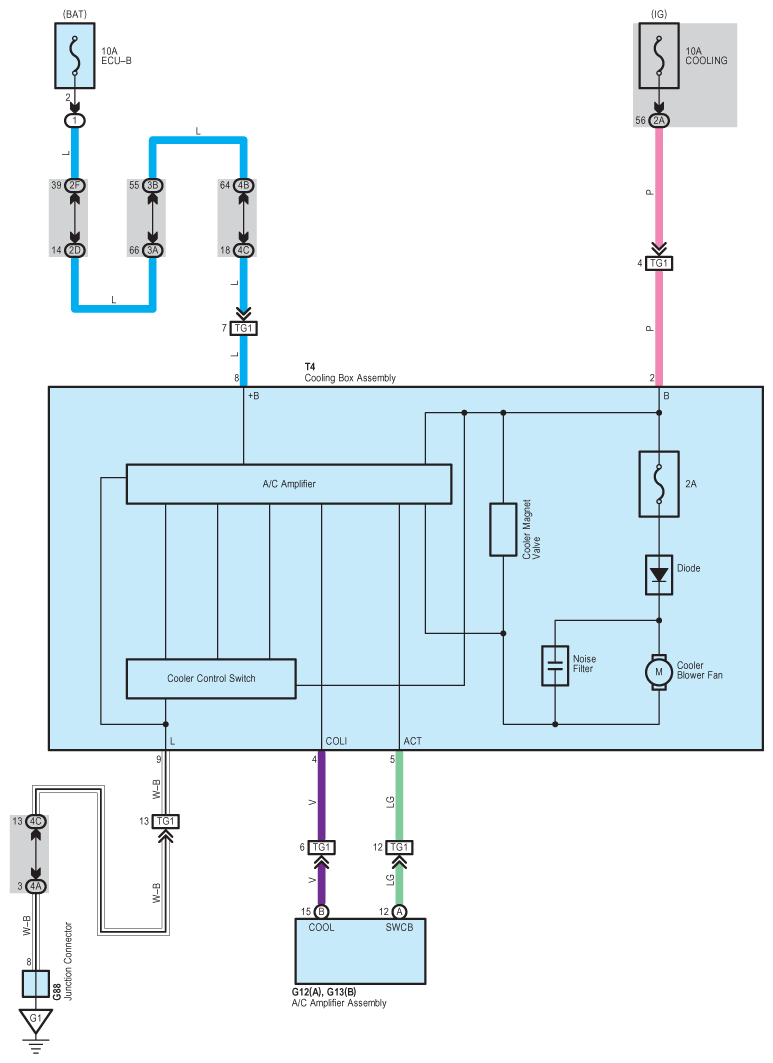

Fig 1: Cool Box - Wiring Diagram

G09114865

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
