Fuel Lid Opener: Notes

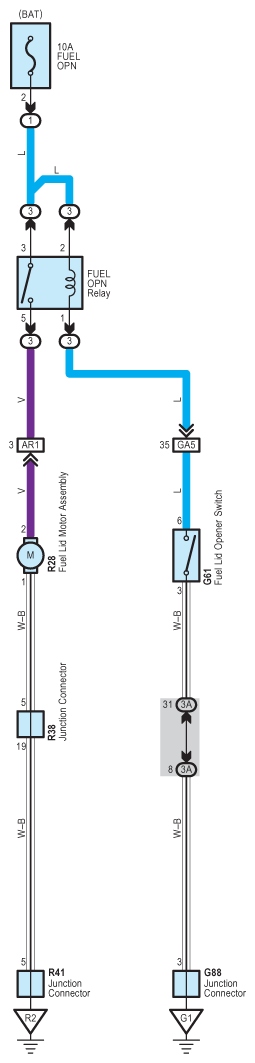

Fig 1: Fuel Lid Opener - Wiring Diagram

G09114746

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
