Glass Hatch Opener: Notes

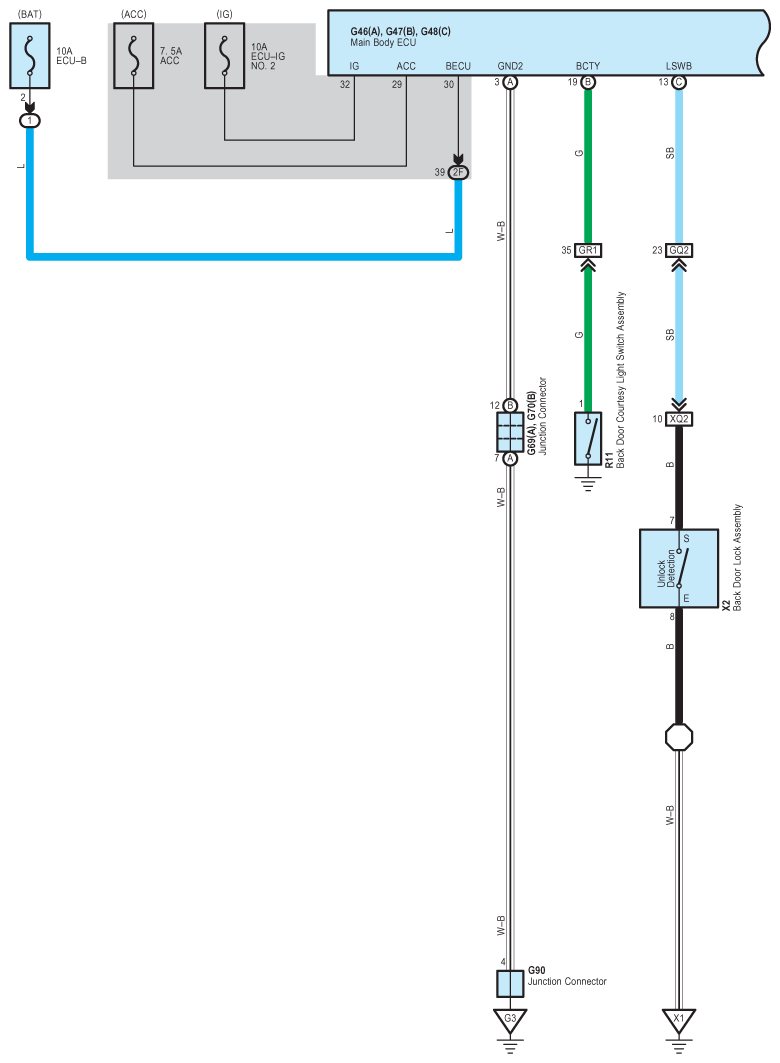

Fig 1: Glass Hatch Opener - Wiring Diagram (1 Of 5)
G09114704Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

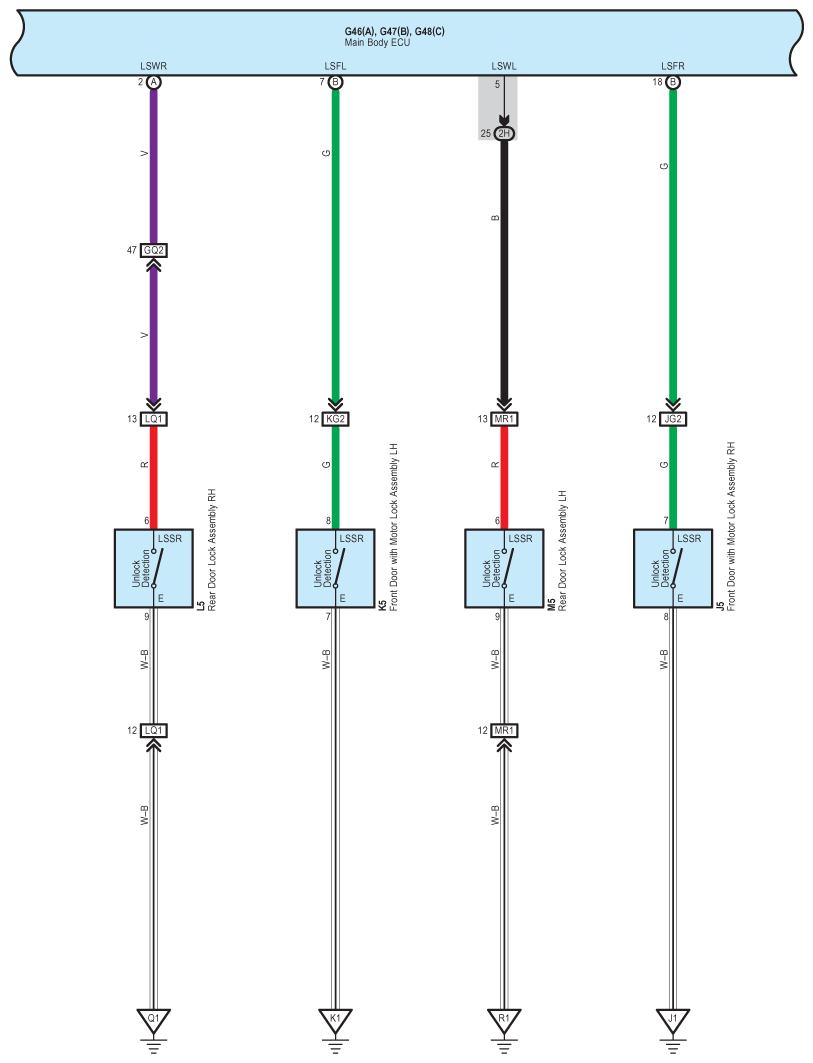

Fig 2: Glass Hatch Opener - Wiring Diagram (2 Of 5)
G09114705Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

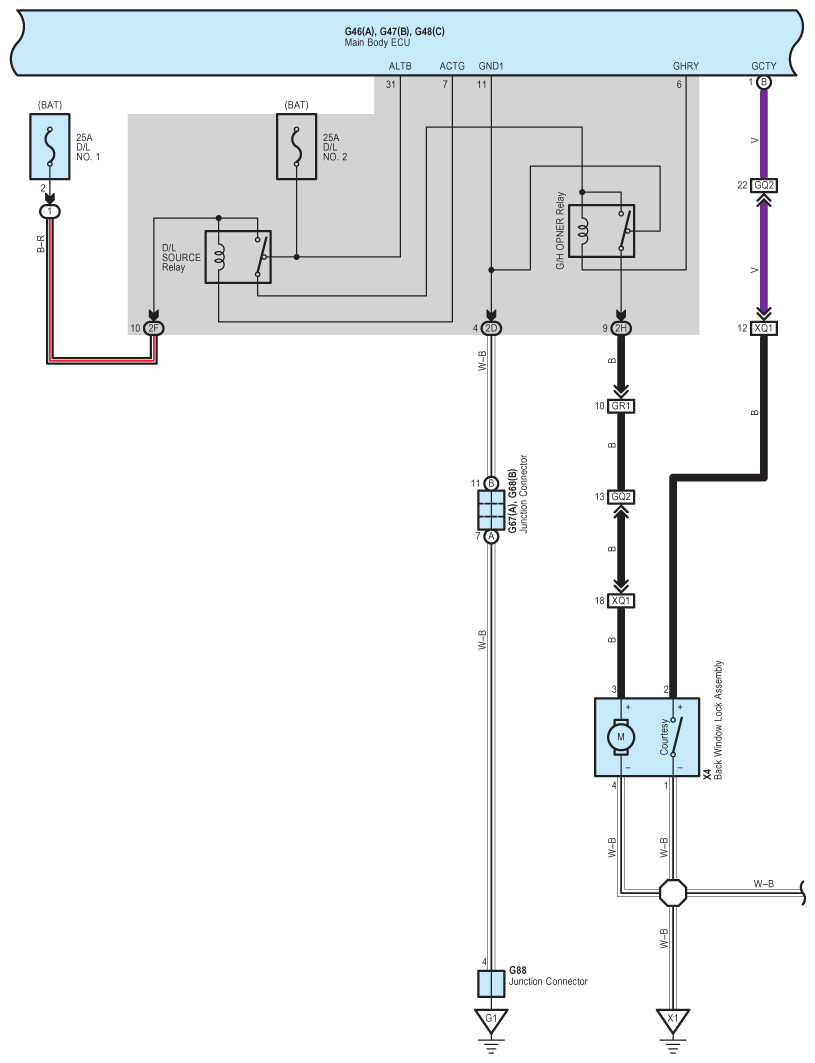

Fig 3: Glass Hatch Opener - Wiring Diagram (3 Of 5)
G09114706Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

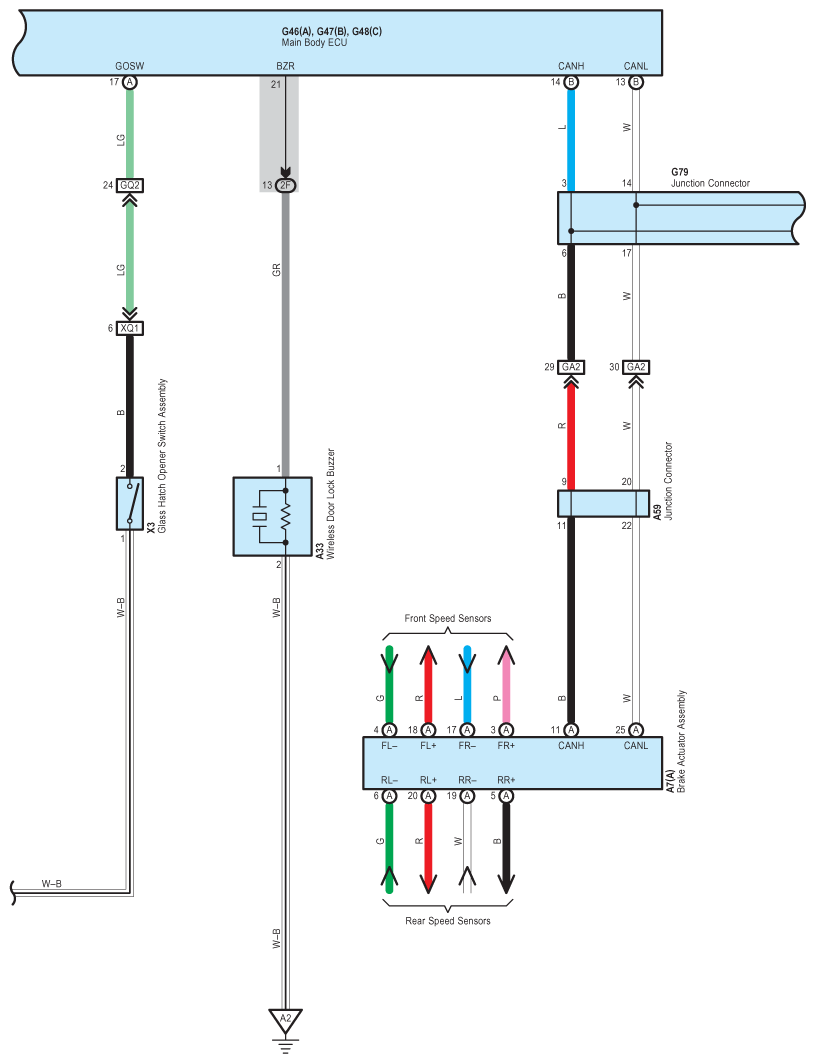

Fig 4: Glass Hatch Opener - Wiring Diagram (4 Of 5)
G09114707Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

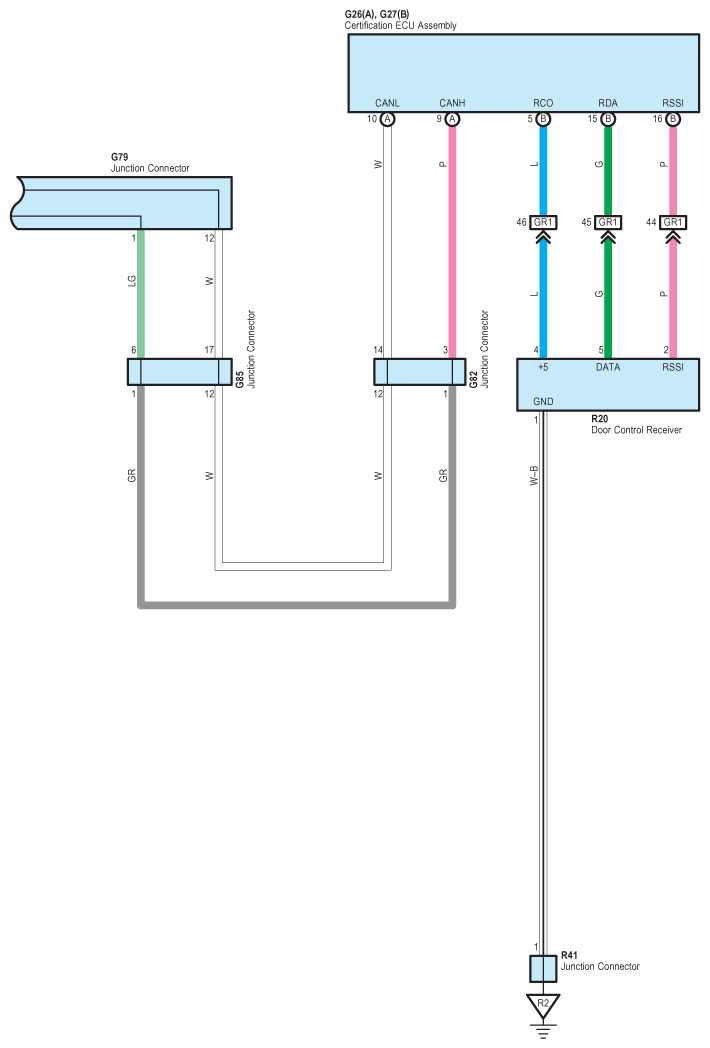

Fig 5: Glass Hatch Opener - Wiring Diagram (5 Of 5)
G09114708Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
