Power Outlet (120V-100W)
›
Notes
Power Outlet (120V-100W): Notes

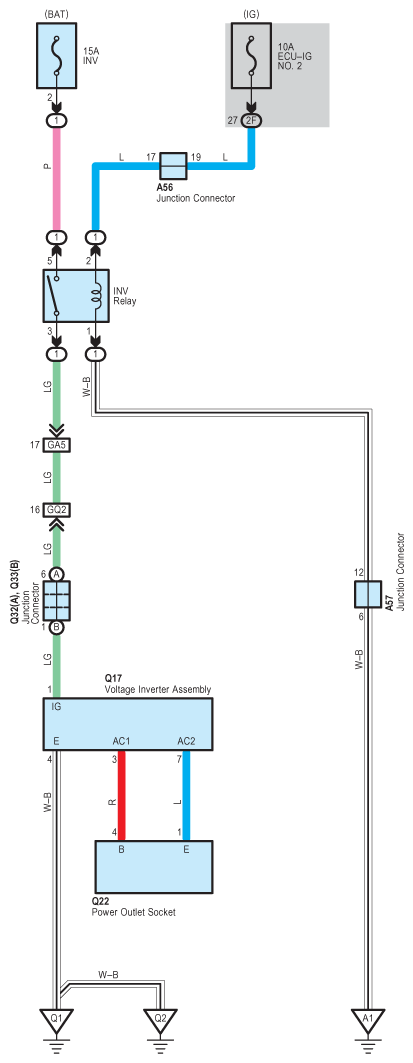

Fig 1: Power Outlet (120V-100W) - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
