Seat Belt Warning: Notes

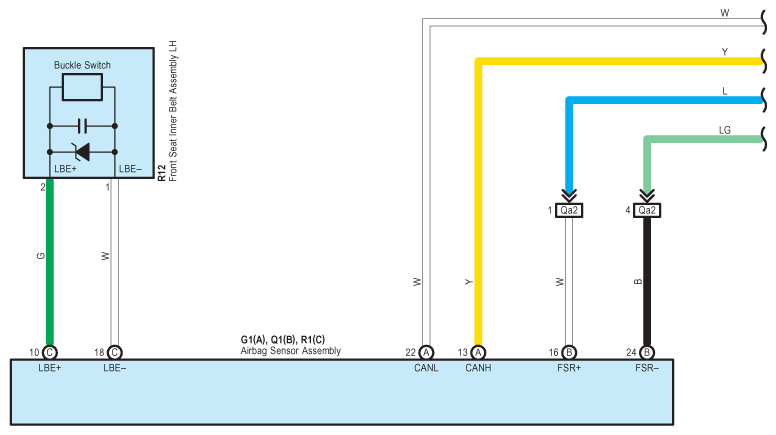

Fig 1: Seat Belt Warning - Wiring Diagram (1 Of 5)
G09114588Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Seat Belt Warning - Wiring Diagram (2 Of 5)
G09114589Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

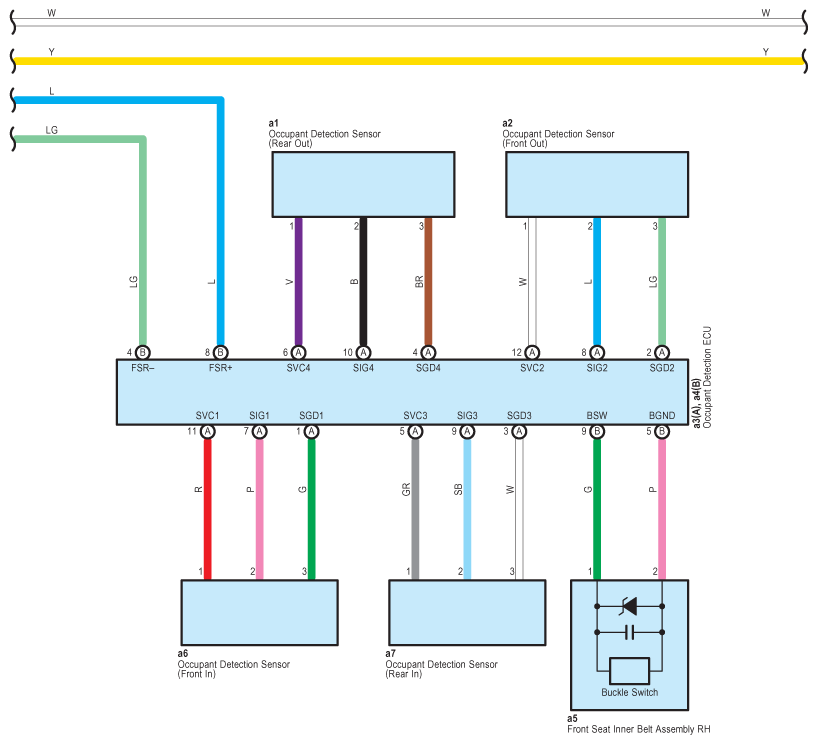

Fig 3: Seat Belt Warning - Wiring Diagram (3 Of 5)
G09114590Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

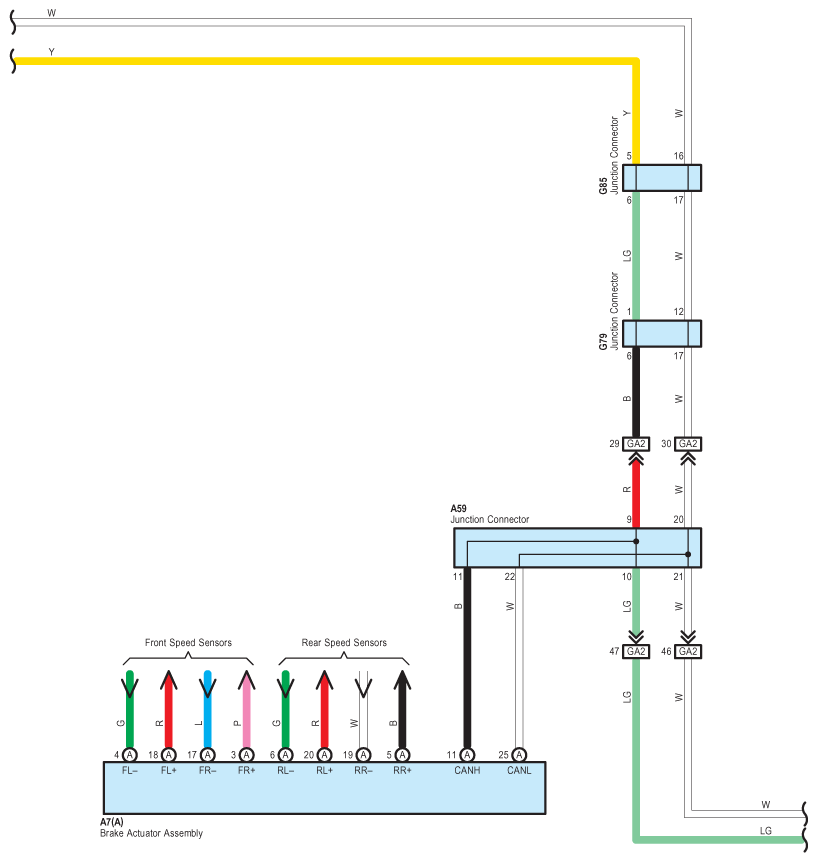

Fig 4: Seat Belt Warning - Wiring Diagram (4 Of 5)
G09114591Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

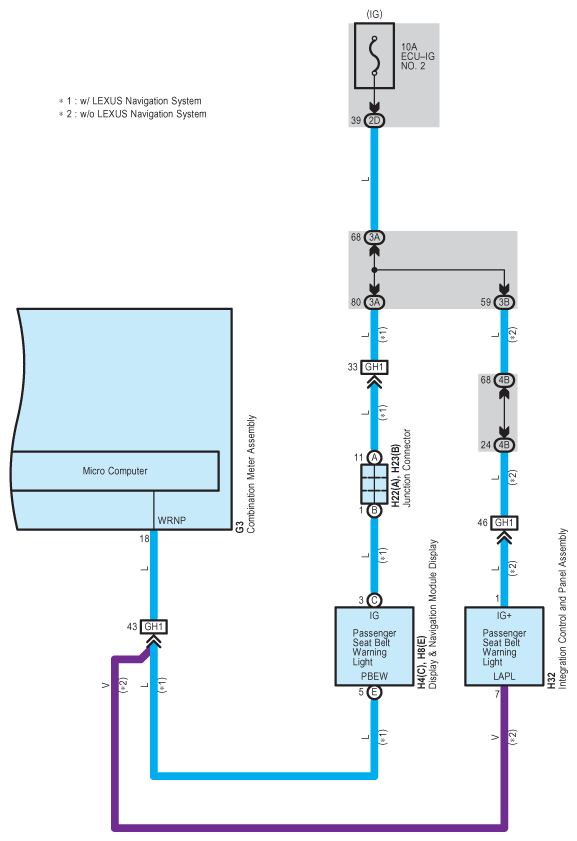

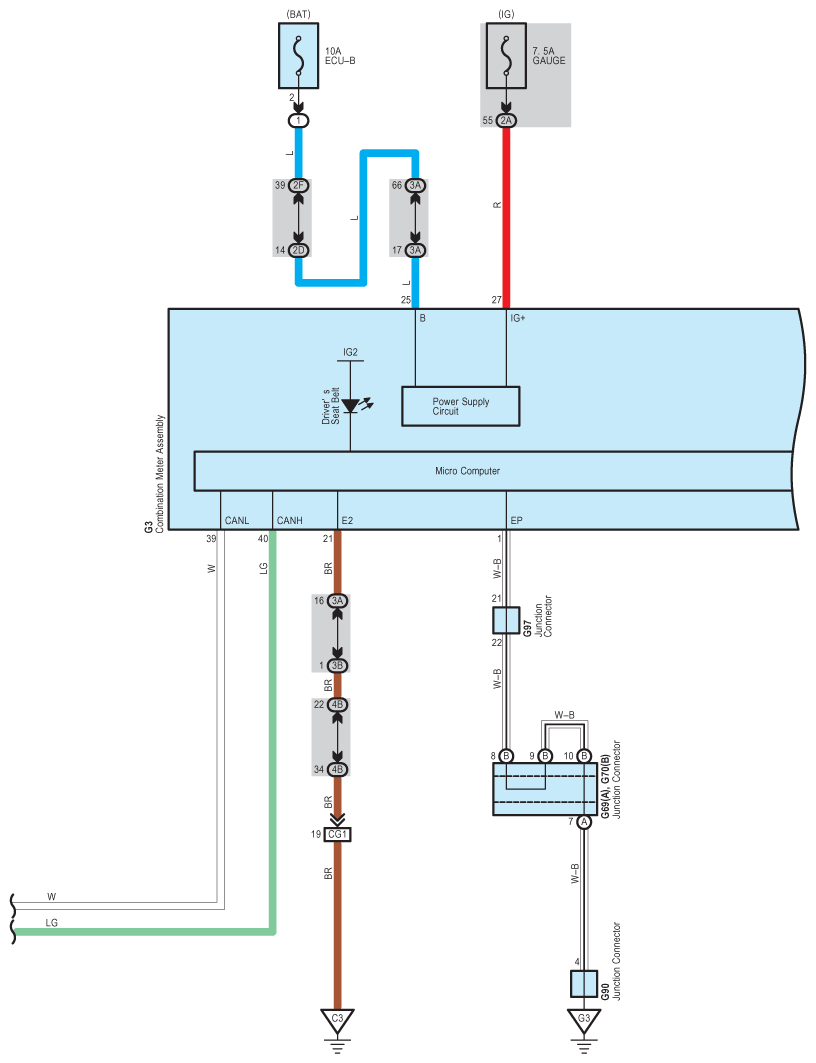

Fig 5: Seat Belt Warning - Wiring Diagram (5 Of 5)
G09114592Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
