Turn Signal and Hazard Warning Light: Notes

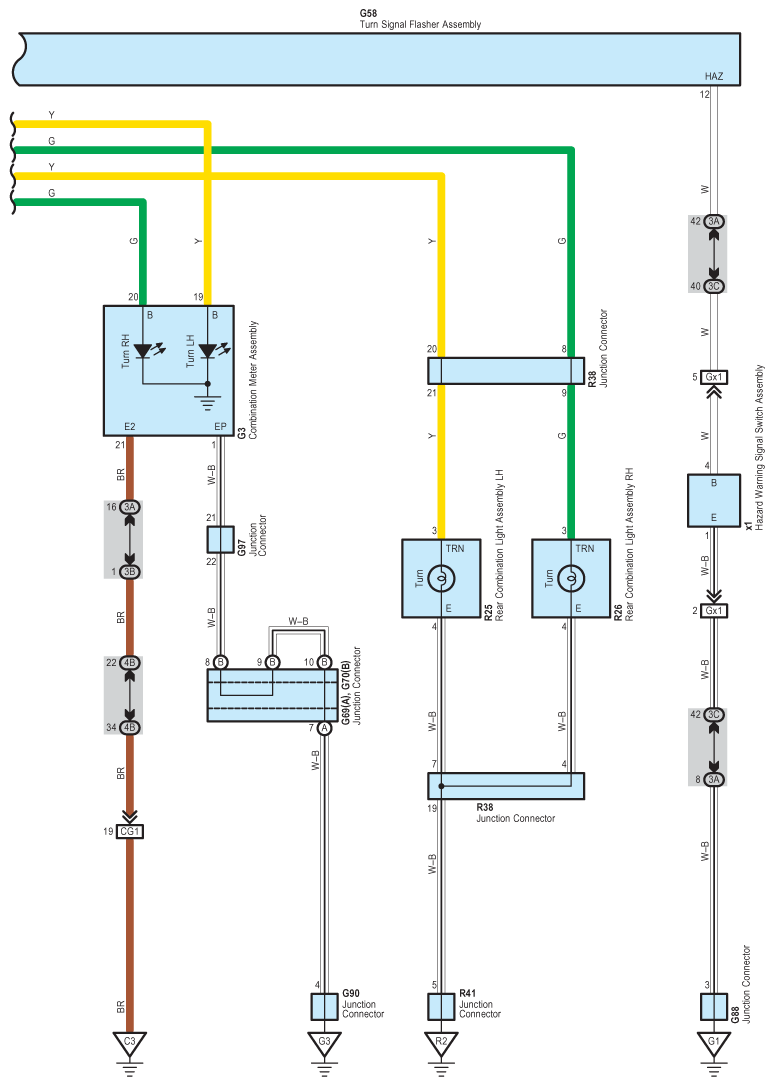

Fig 1: Turn Signal And Hazard - Warning Light Diagram (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

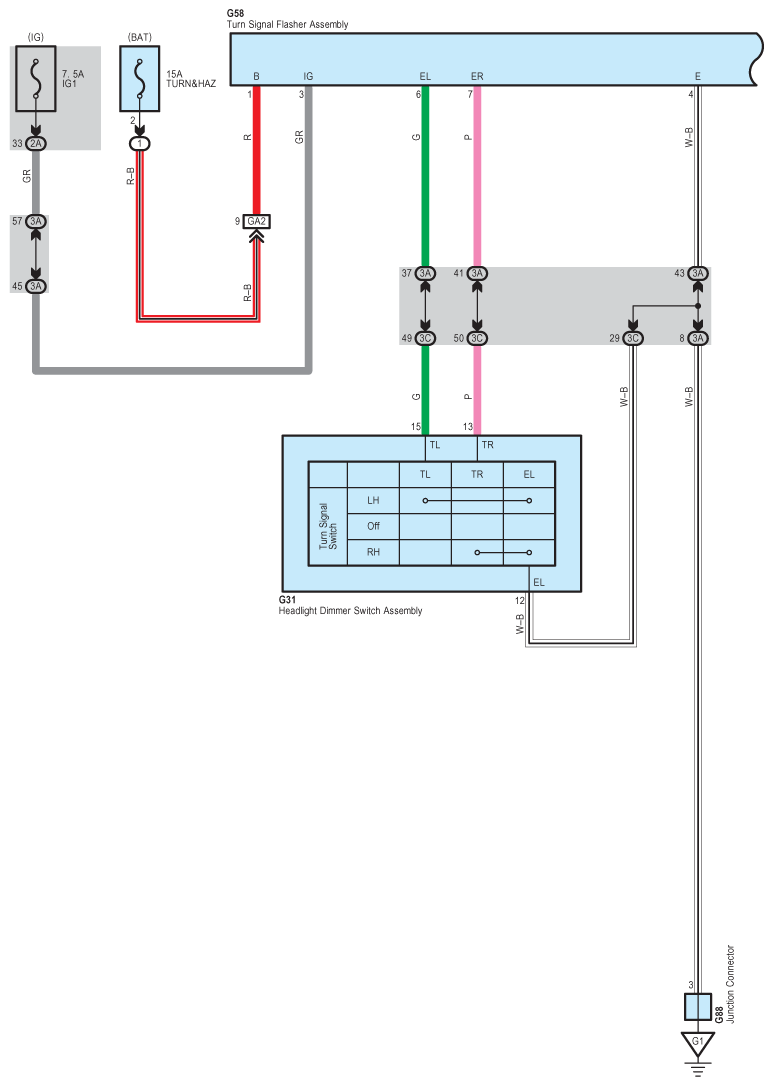

Fig 2: Turn Signal And Hazard - Warning Light Diagram (2 Of 3)

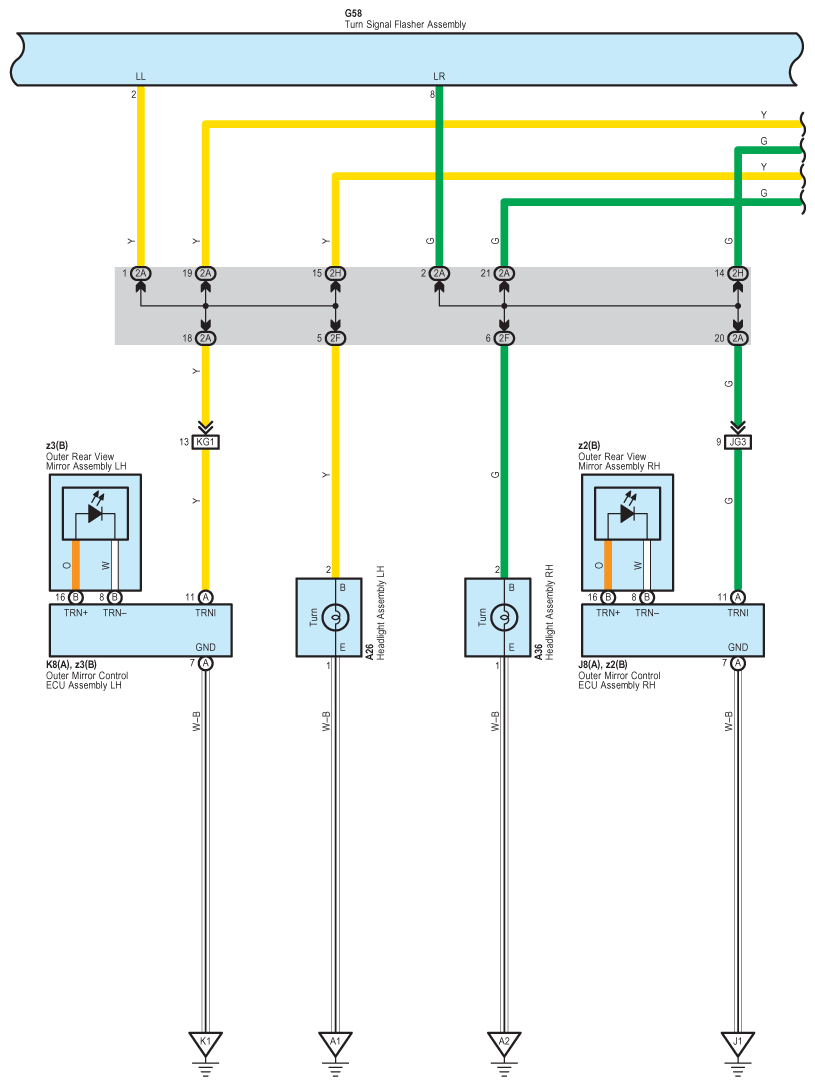

Fig 3: Turn Signal And Hazard - Warning Light Diagram (3 Of 3)
