Cruise Control (4GR-FSE): Notes

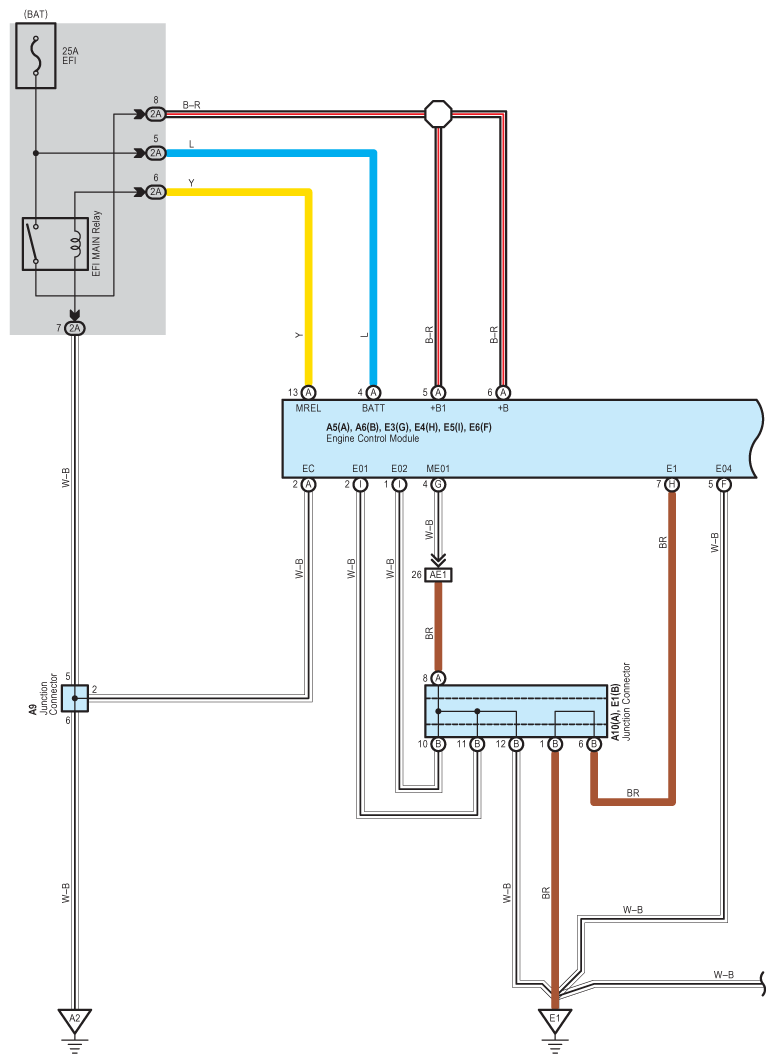

Fig 1: Cruise Control (4GR-FSE) System Wiring Diagram (1 Of 7)
G09119137Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

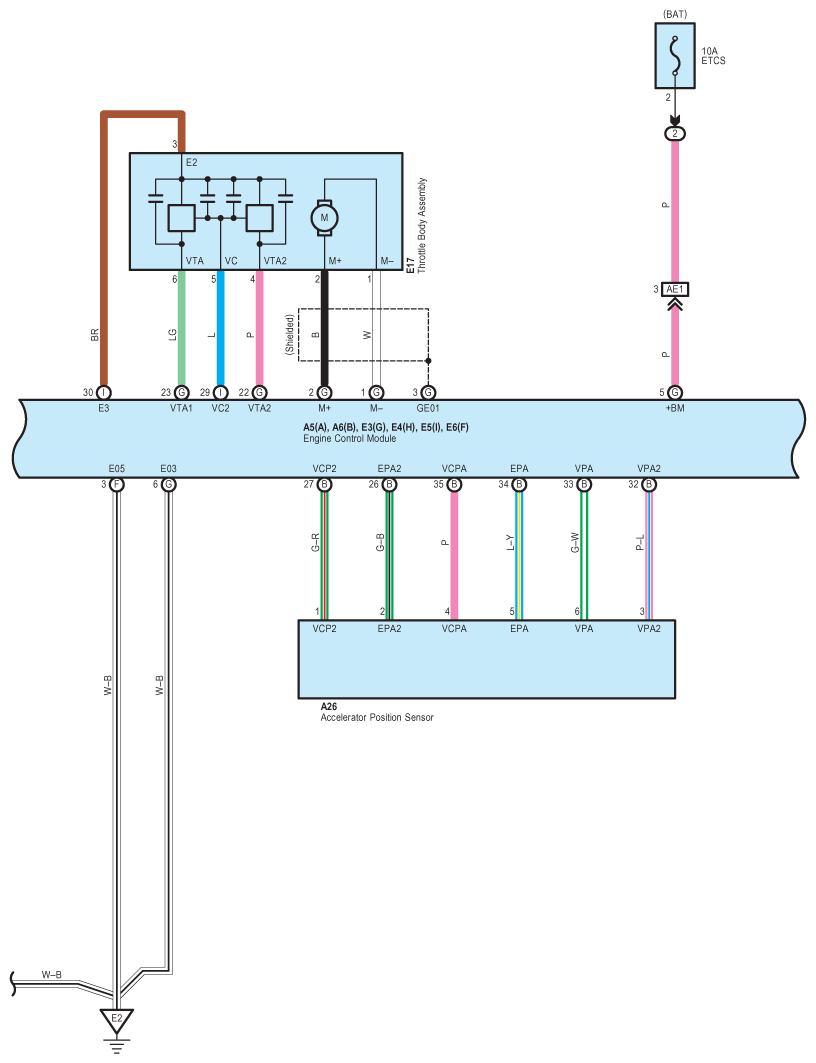

Fig 2: Cruise Control (4GR-FSE) System Wiring Diagram (2 Of 7)
G09119138Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

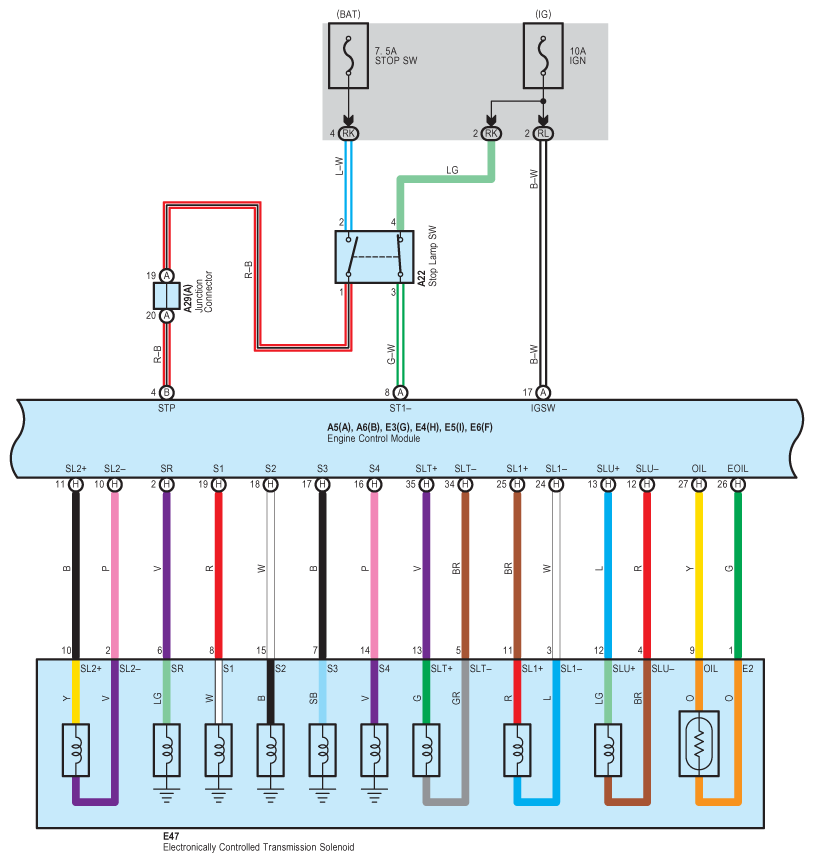

Fig 3: Cruise Control (4GR-FSE) System Wiring Diagram (3 Of 7)
G09119139Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

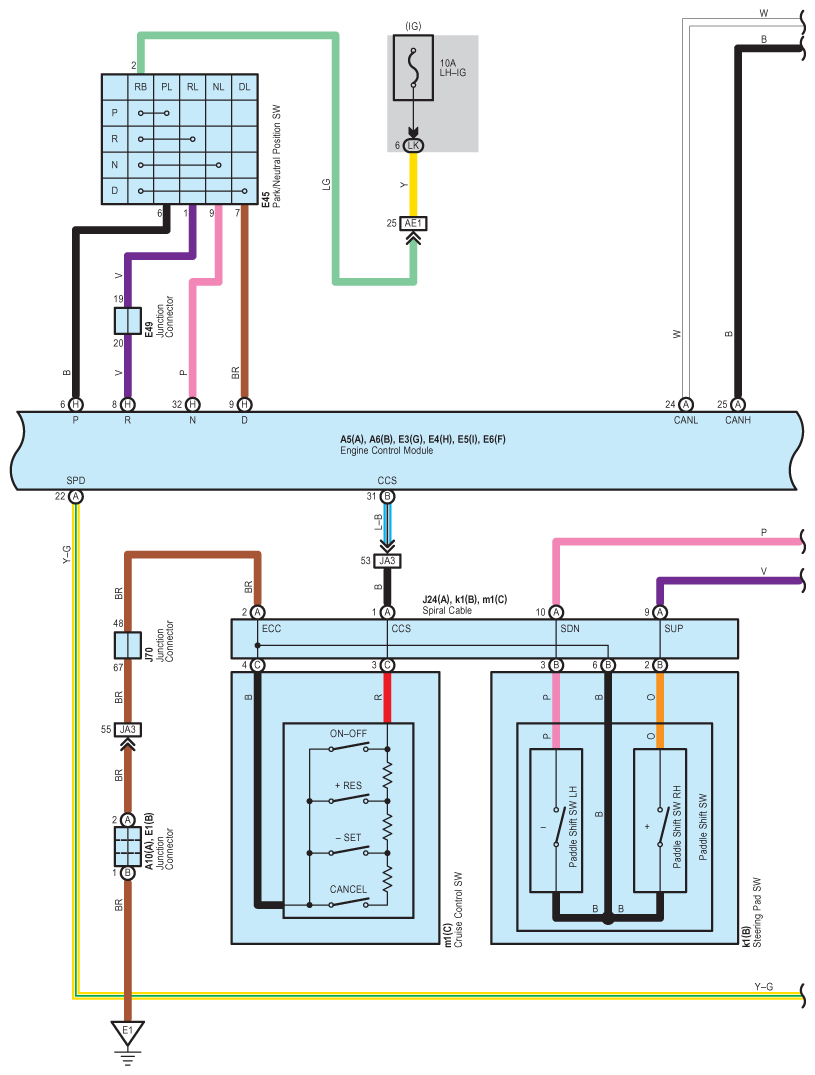

Fig 4: Cruise Control (4GR-FSE) System Wiring Diagram (4 Of 7)
G09119140Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

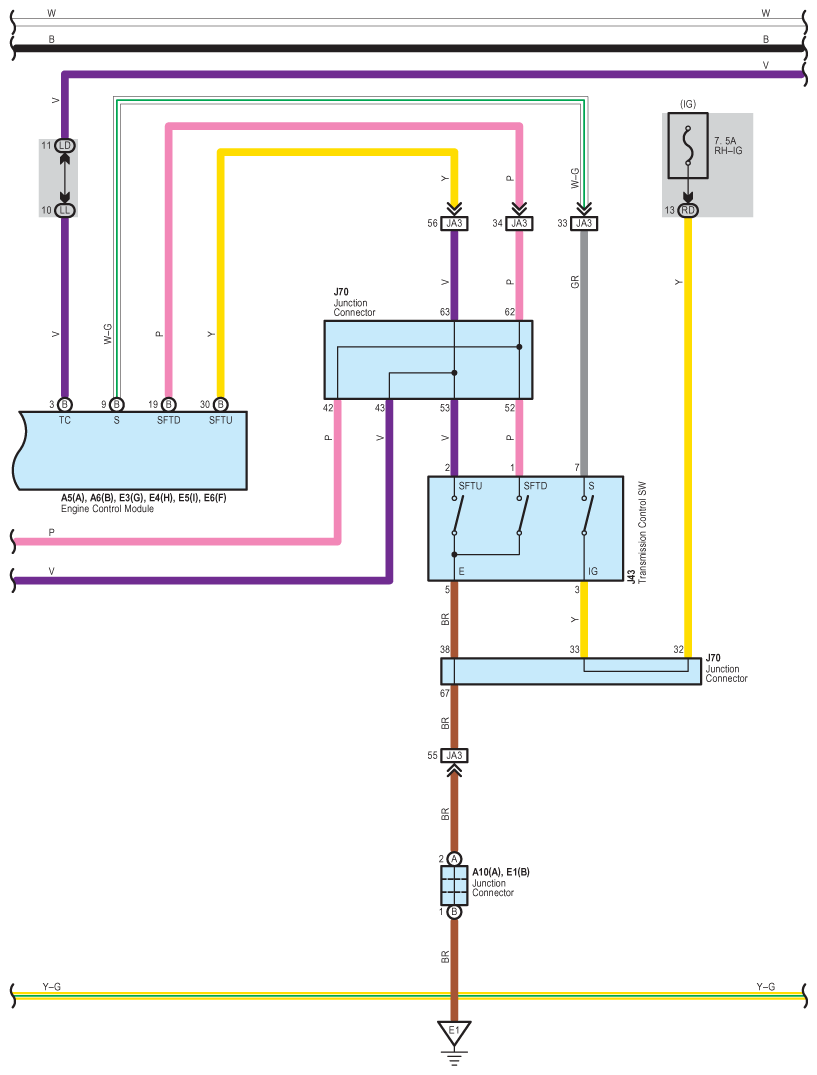

Fig 5: Cruise Control (4GR-FSE) System Wiring Diagram (5 Of 7)
G09119141Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

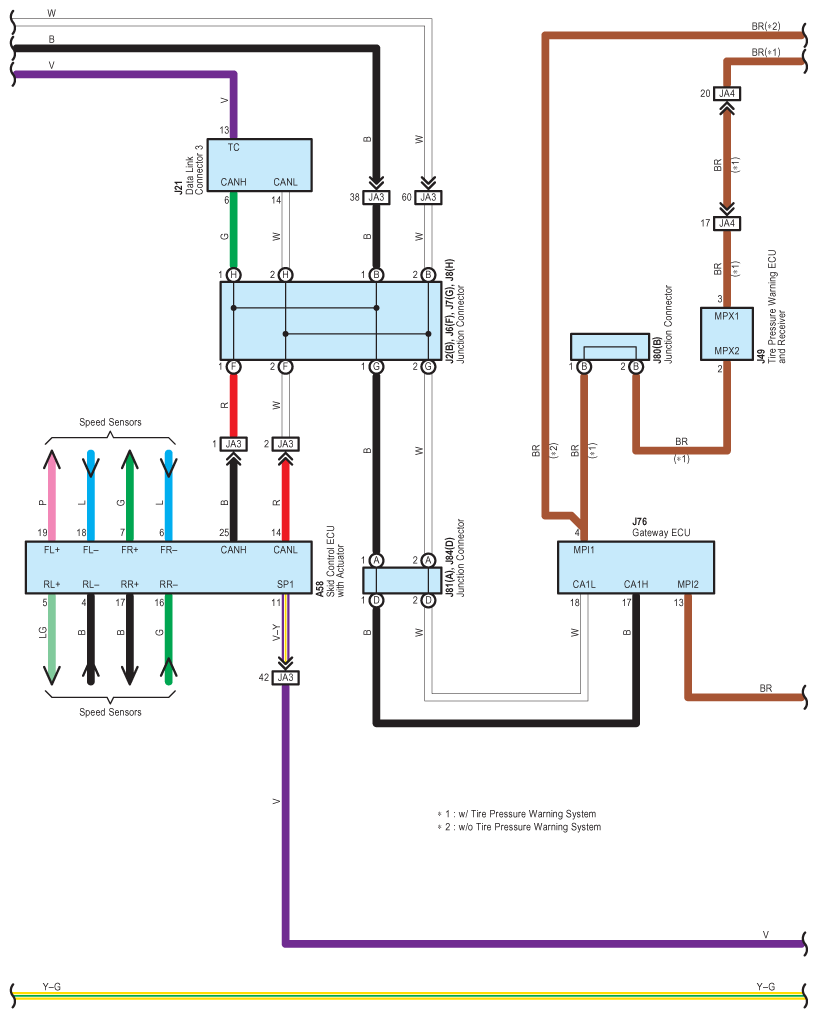

Fig 6: Cruise Control (4GR-FSE) System Wiring Diagram (6 Of 7)
G09119142Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

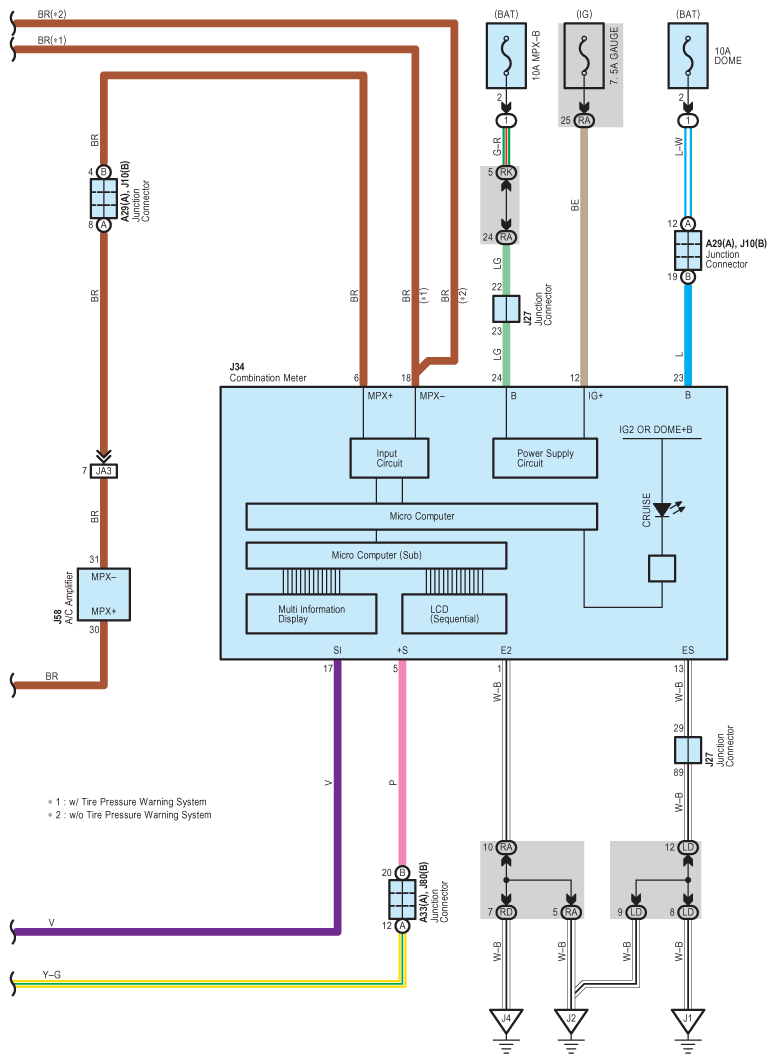

Fig 7: Cruise Control (4GR-FSE) System Wiring Diagram (7 Of 7)
G09119143Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
