Climate Control Seat System (Diagnostics - Introduction)
›
Climate Control Seat System
›
Climate Control Seat System does not Operate
›
Wiring Diagram
Climate Control Seat System does not Operate: Wiring Diagram

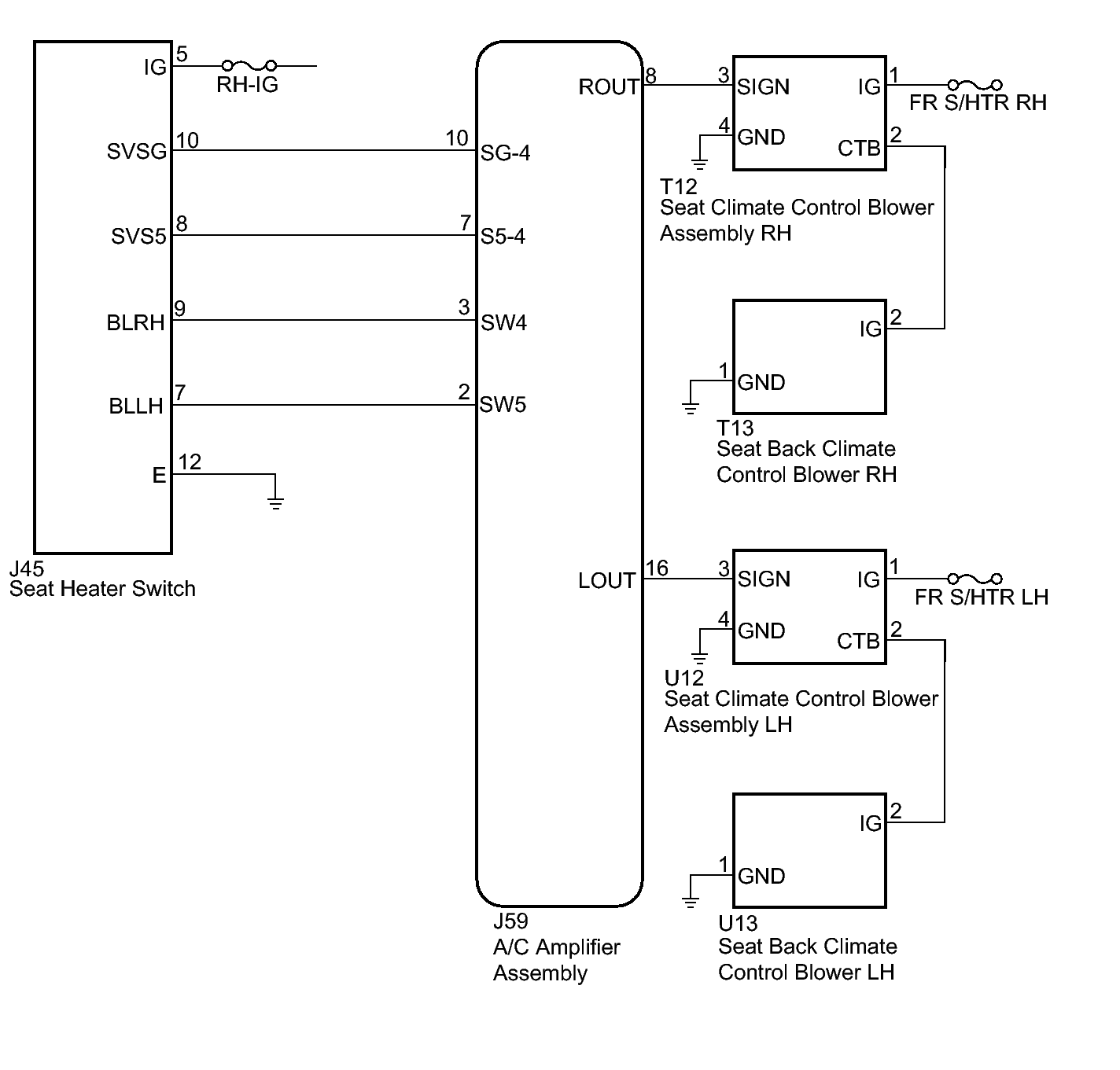

Fig 1: Climate Control Seat System Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
