Air Conditioning: Notes

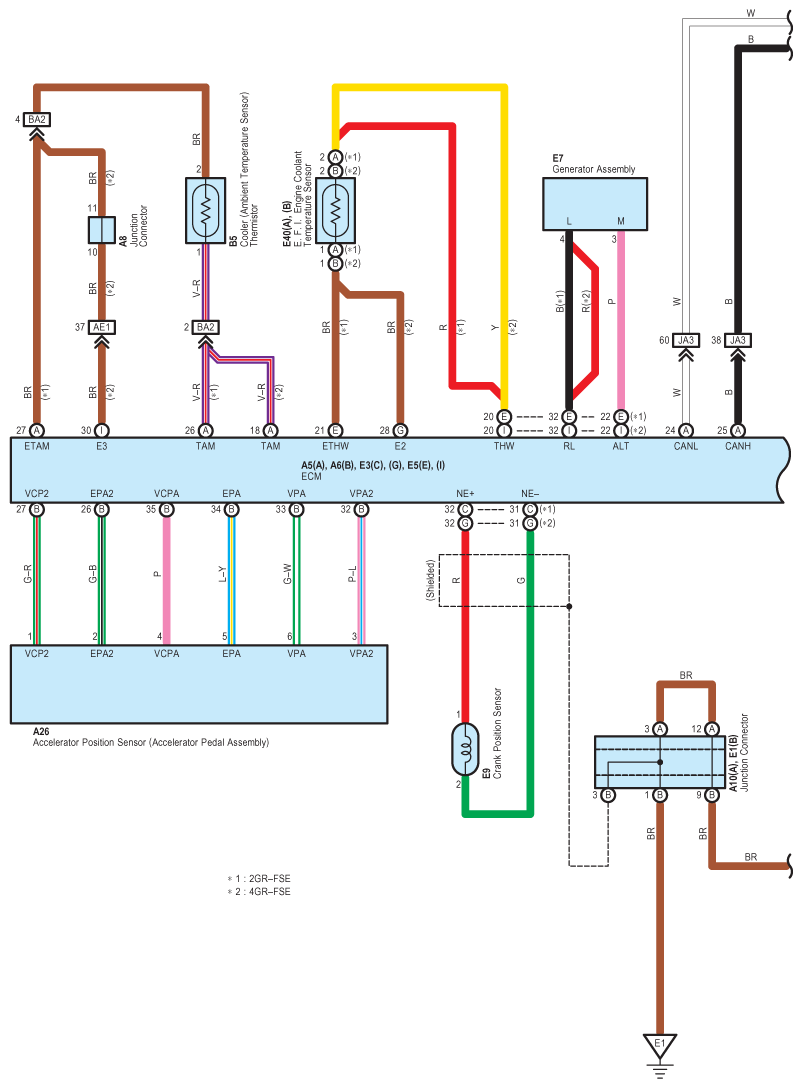

Fig 1: Air Conditioning Wiring Diagram (1 Of 7)

G09121470

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

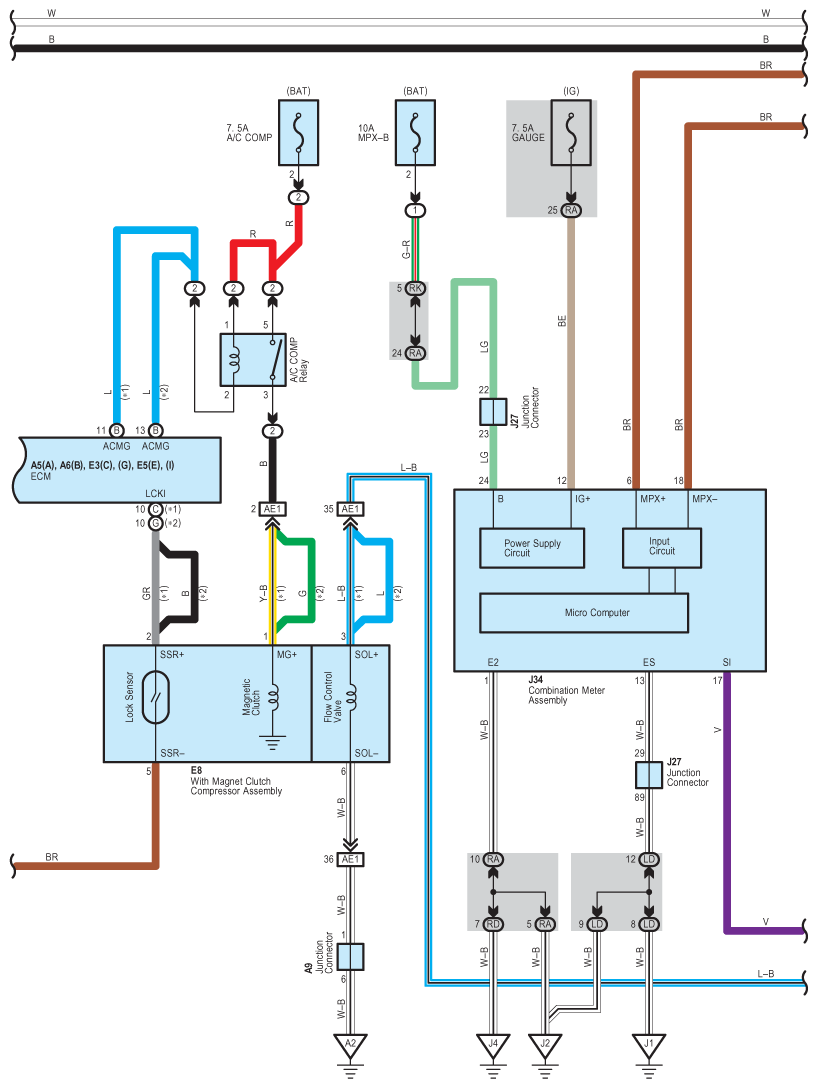

Fig 2: Air Conditioning Wiring Diagram (2 Of 7)

G09121471

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

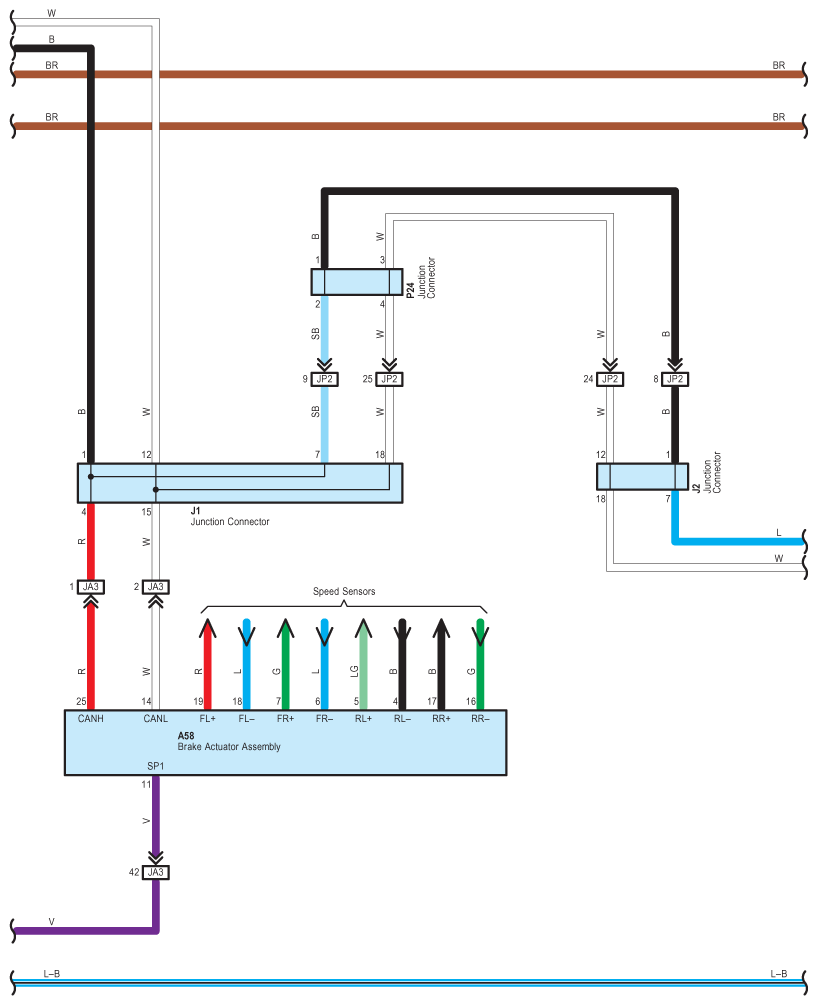

Fig 3: Air Conditioning Wiring Diagram (3 Of 7)

G09121472

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

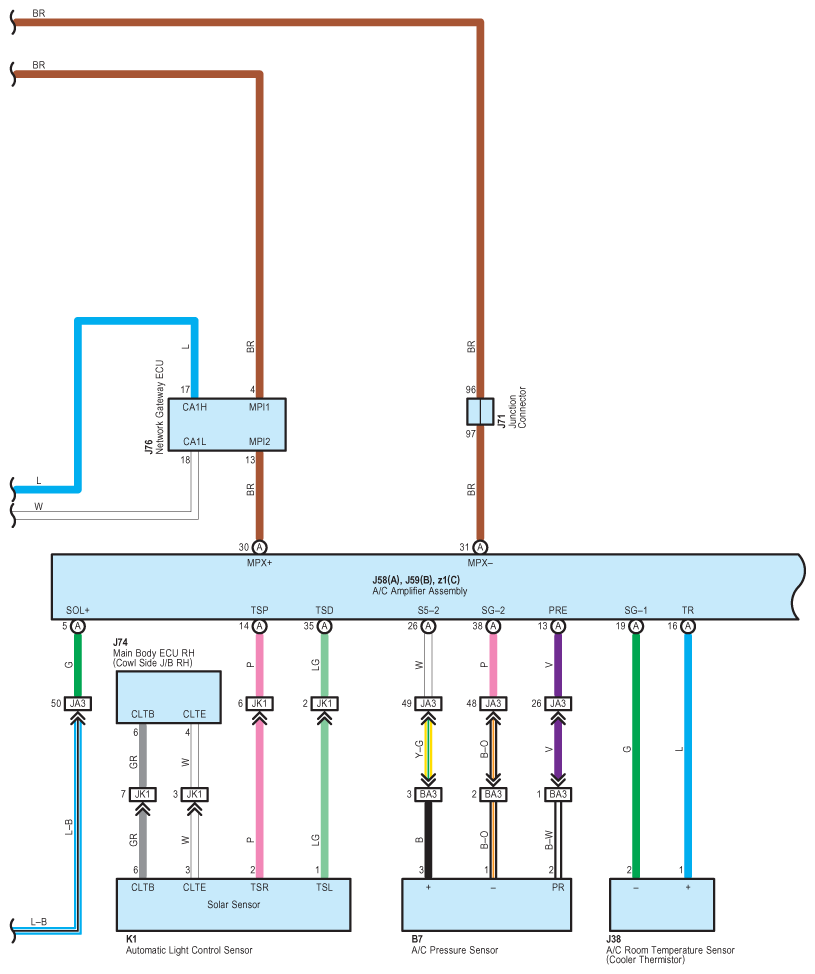

Fig 4: Air Conditioning Wiring Diagram (4 Of 7)

G09121473

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

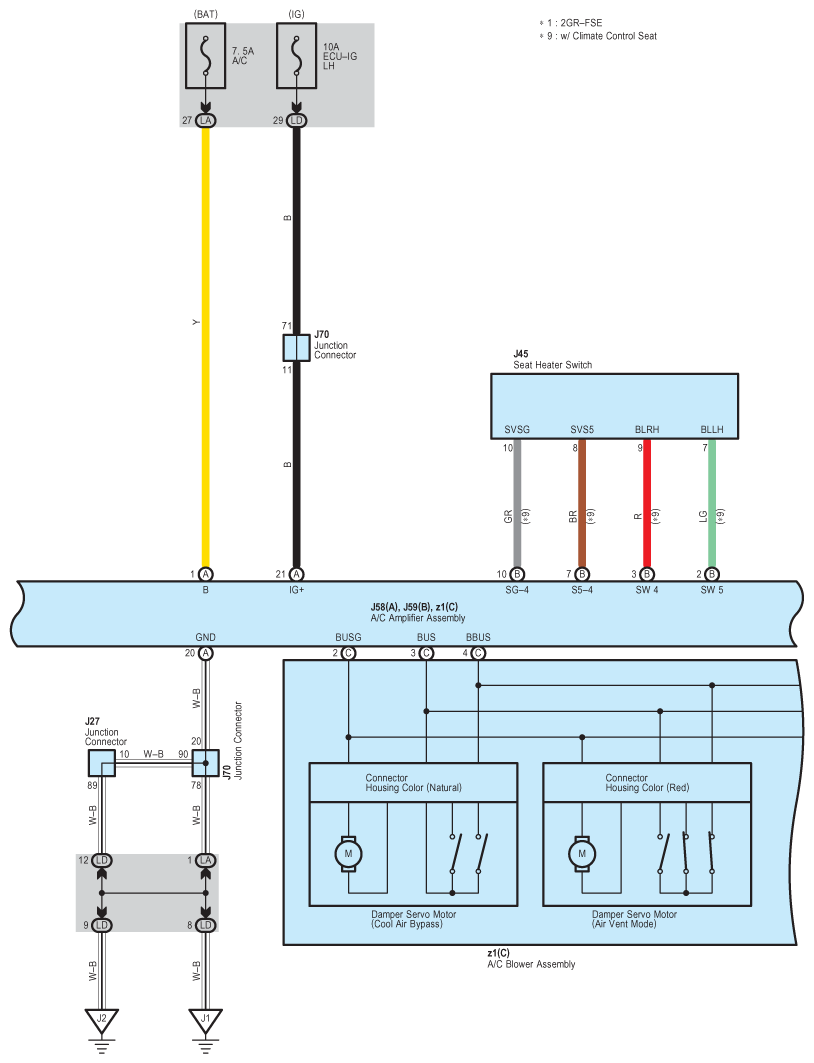

Fig 5: Air Conditioning Wiring Diagram (5 Of 7)

G09121474

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

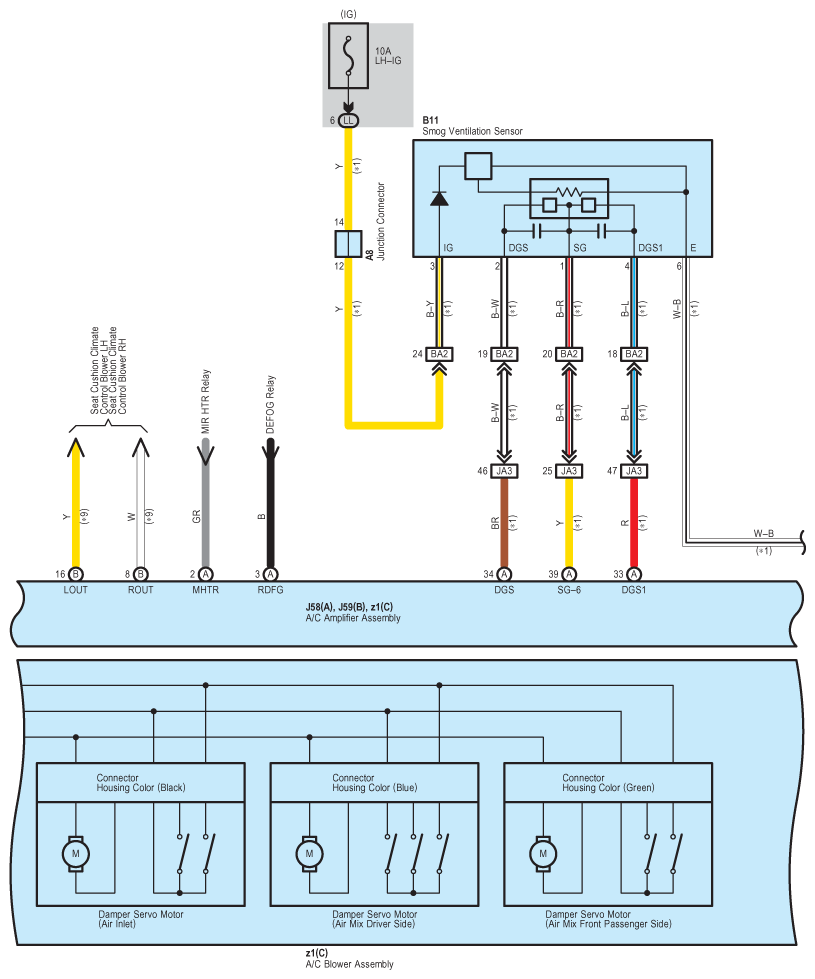

Fig 6: Air Conditioning Wiring Diagram (6 Of 7)

G09121475

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

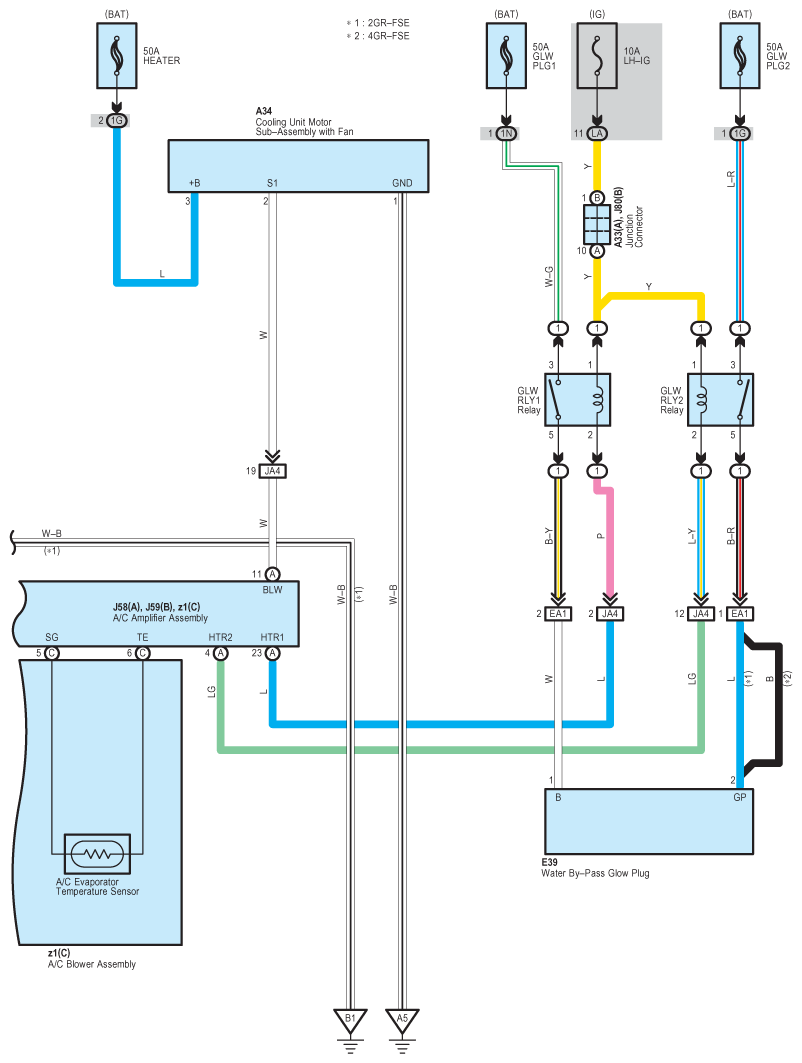

Fig 7: Air Conditioning Wiring Diagram (7 Of 7)

G09121476

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
