OEM System Circuits: Clock: Notes

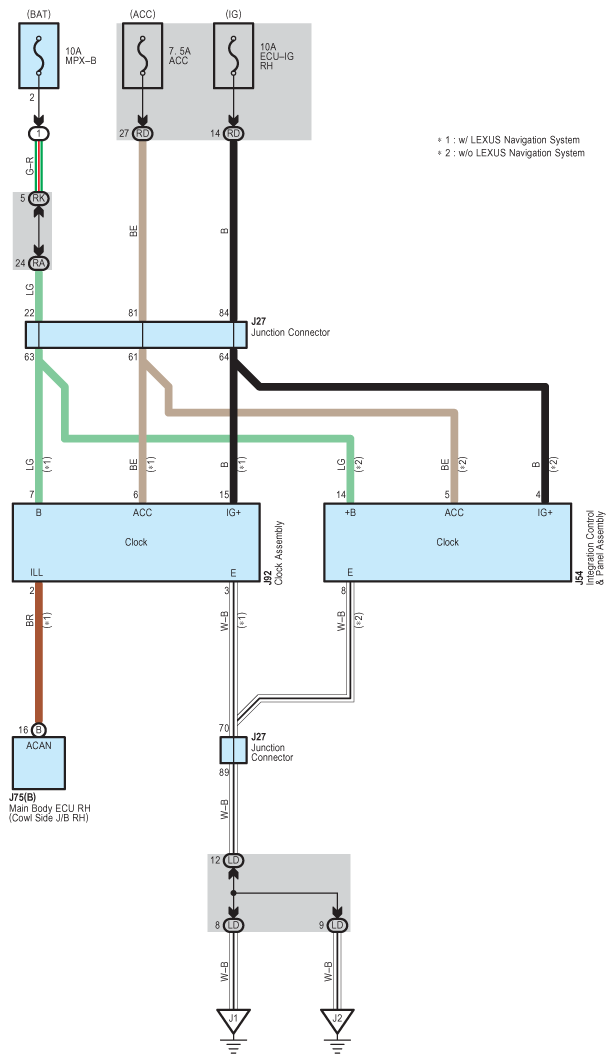

Fig 1: Clock Wiring Diagram

G09121424

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
