OEM System Circuits: EPS: Notes

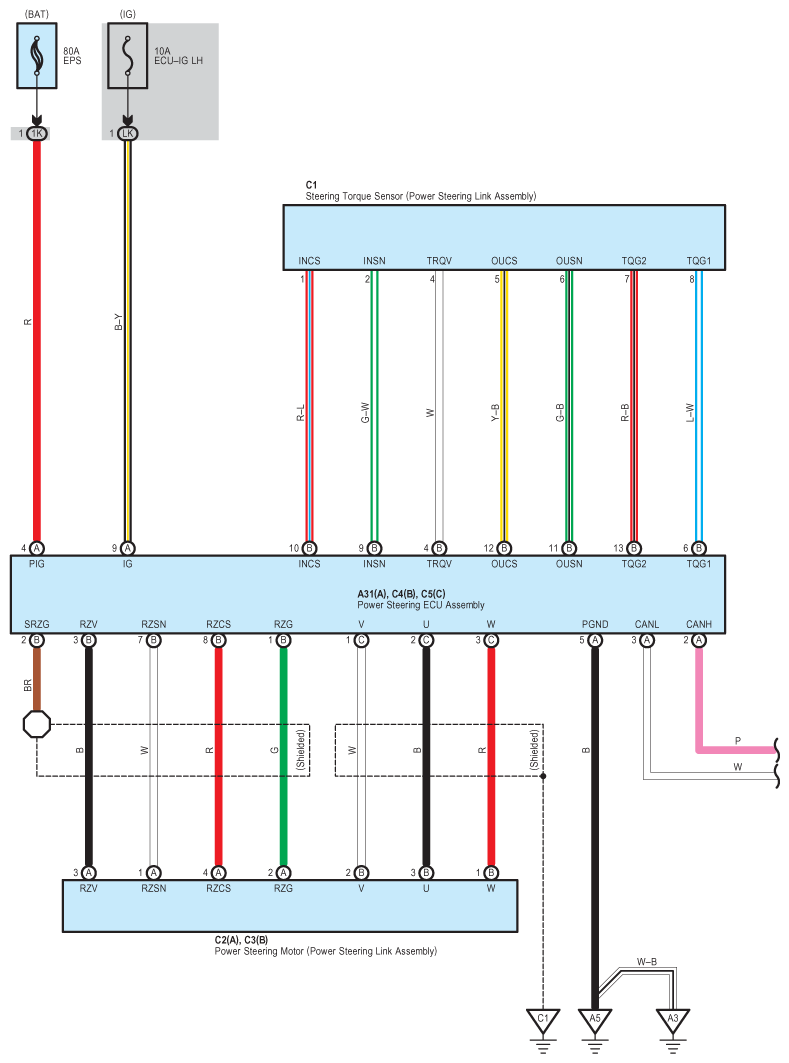

Fig 1: EPS Wiring Diagram (1 Of 4)
G09121331Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

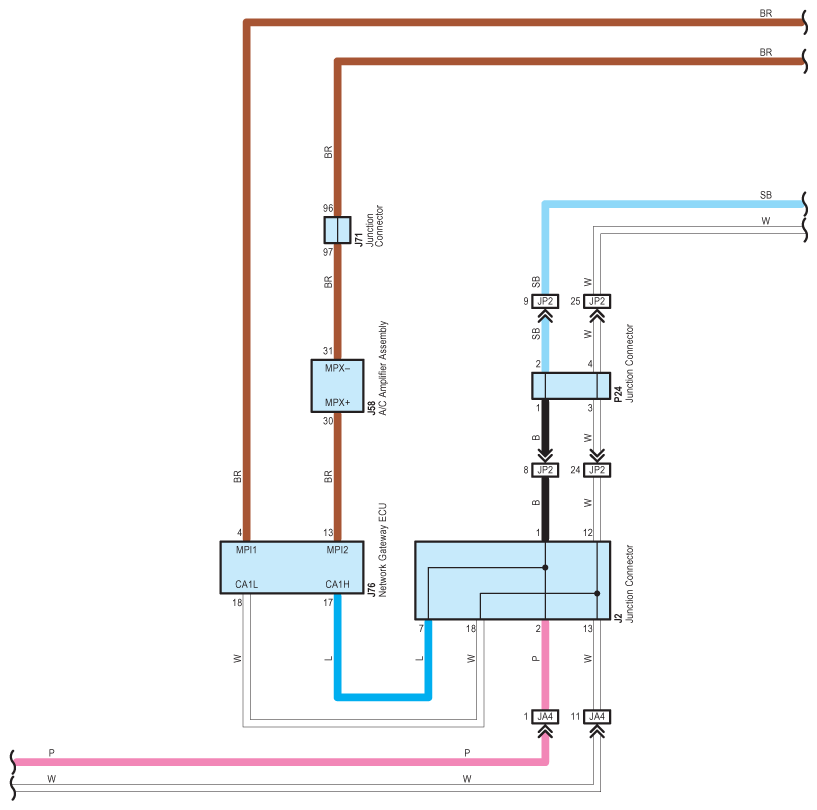

Fig 2: EPS Wiring Diagram (2 Of 4)
G09121332Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

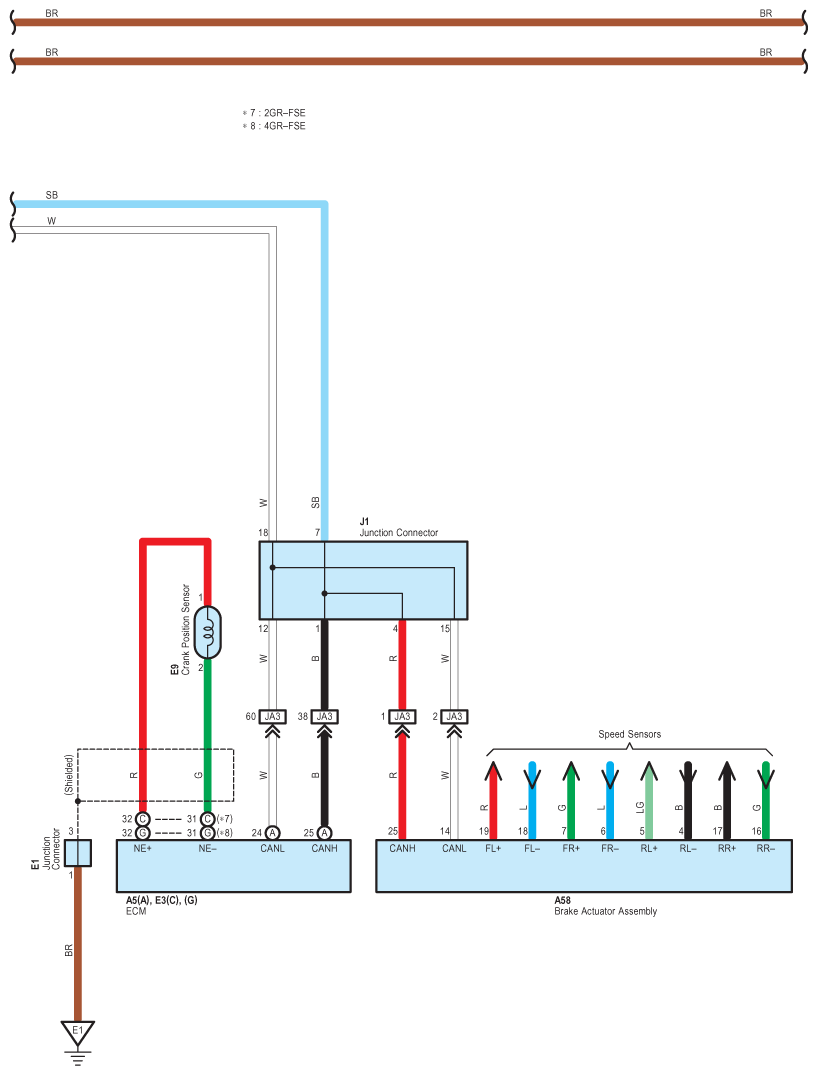

Fig 3: EPS Wiring Diagram (3 Of 4)
G09121333Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

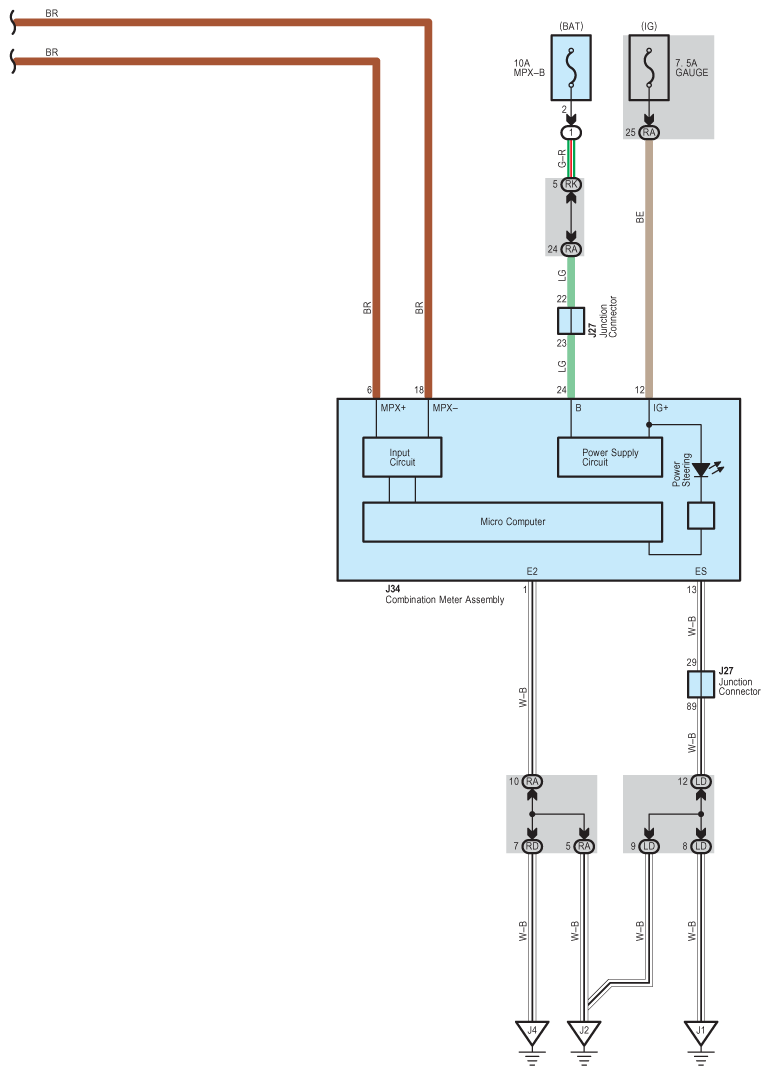

Fig 4: EPS Wiring Diagram (4 Of 4)
G09121334Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
