Power Window Control System (Diagnostics & Symptom Tests)
›
Power Window Control System
›
Symptom Tests
›
Remote Up / Down Function does not Operate
›
Wiring Diagram
Remote Up / Down Function does not Operate: Wiring Diagram

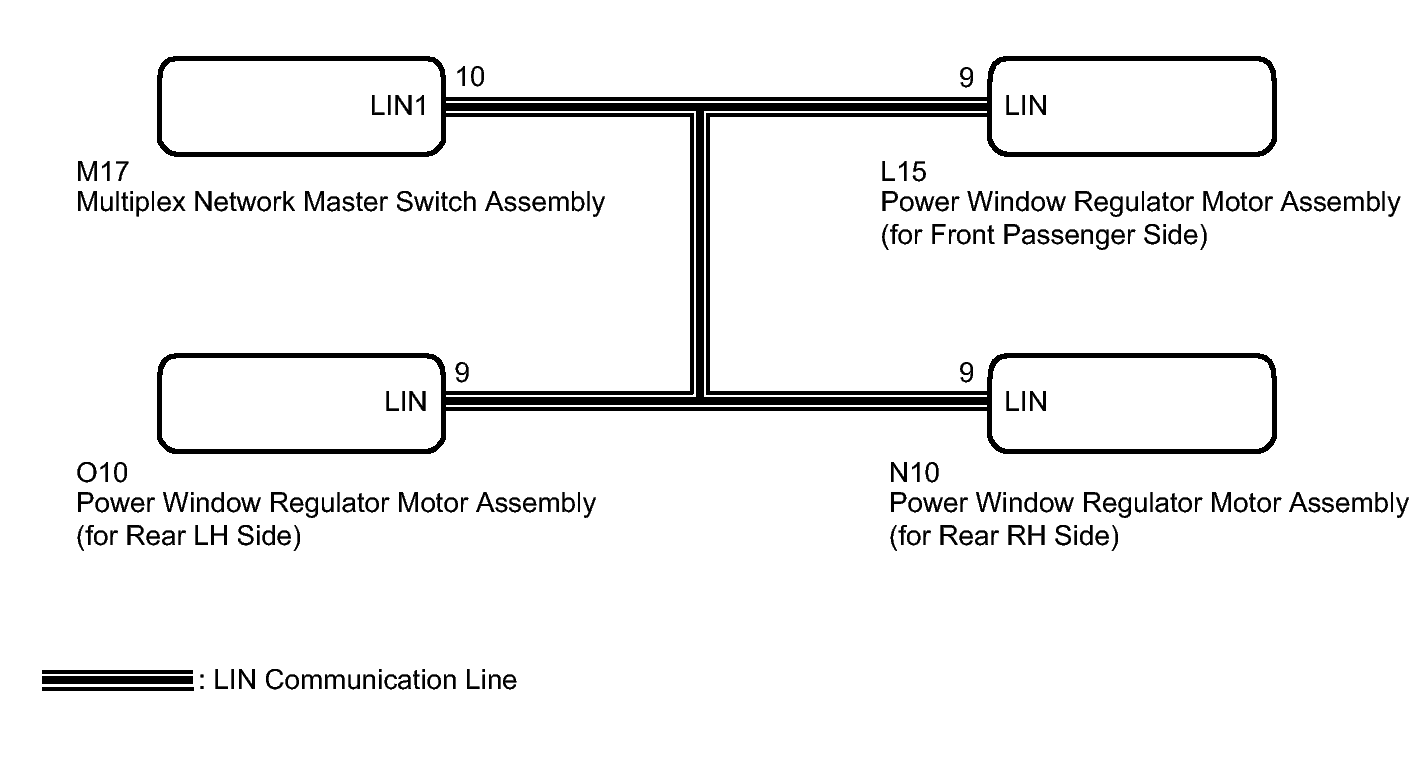

Fig 1: LIN Communication Line Wiring Diagram
