Home › Lexus › 2013 › IS 350 Base, AWD › Repair and Diagnosis › Electrical › Body Electrical › OEM System Circuits › Front Window Deicer › Notes

Front Window Deicer: Notes

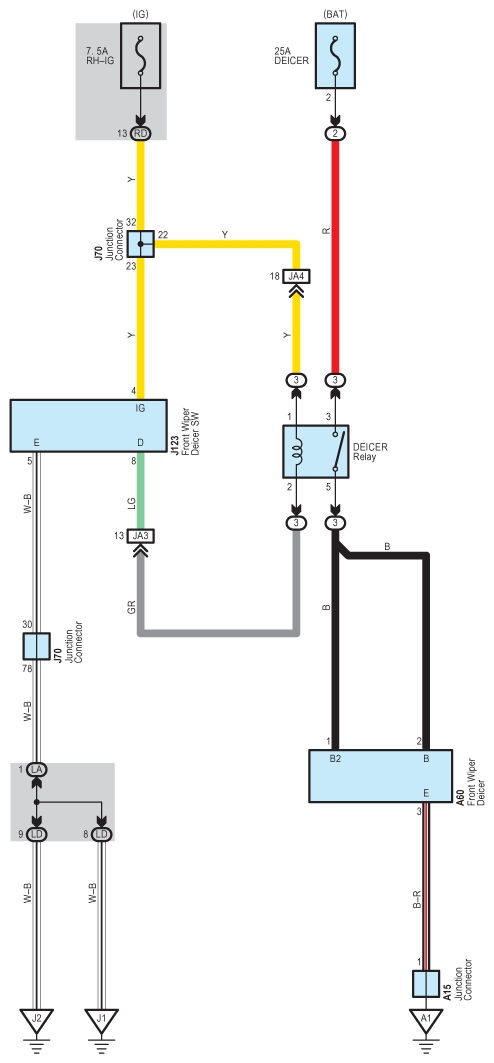

Fig 1: Front Window Deicer System Wiring Diagram
G09119224Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
