Front Power Seat Control System
›
Circuit Tests
›
Driver Side ECU Power Source Circuit
›
Wiring Diagram
Driver Side ECU Power Source Circuit: Wiring Diagram

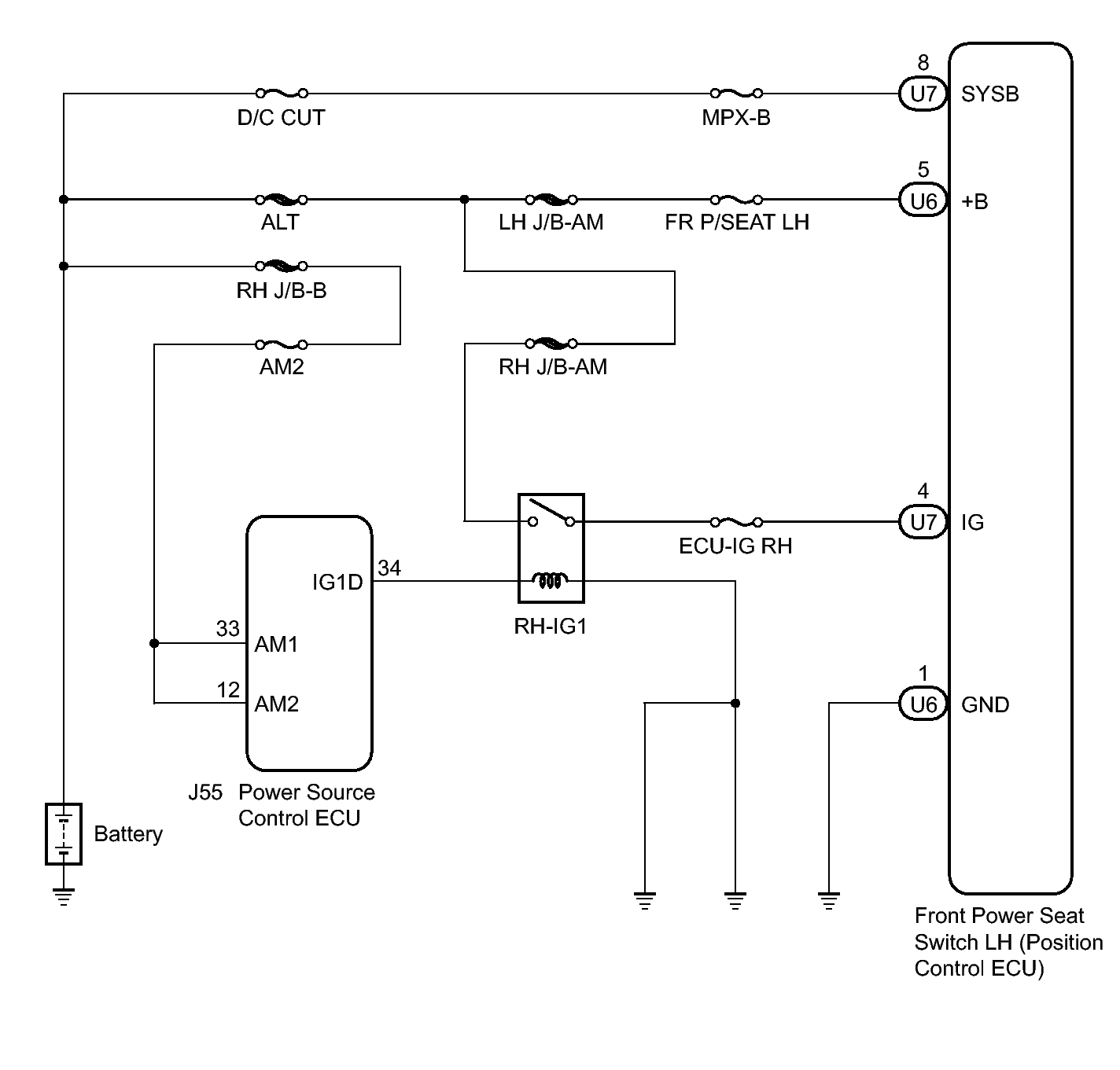

Fig 1: Driver Side ECU Power Source Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
