Electric Tension Reducer: Notes

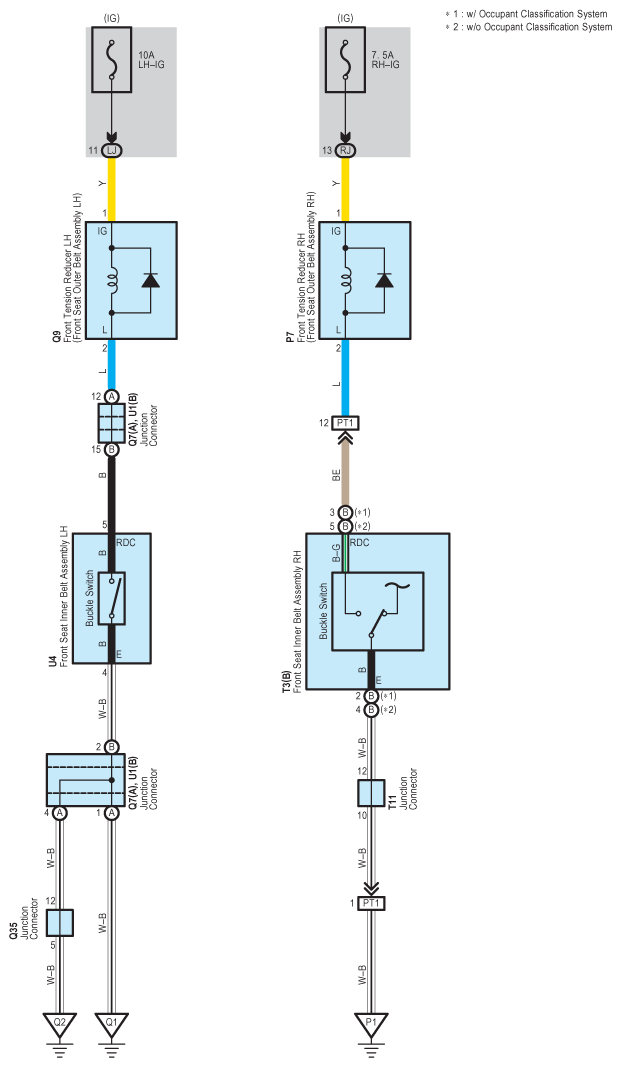

Fig 1: Electric Tension Reducer System Wiring Diagram

G09122333

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
