Components [09/2012 - ]: Illustration

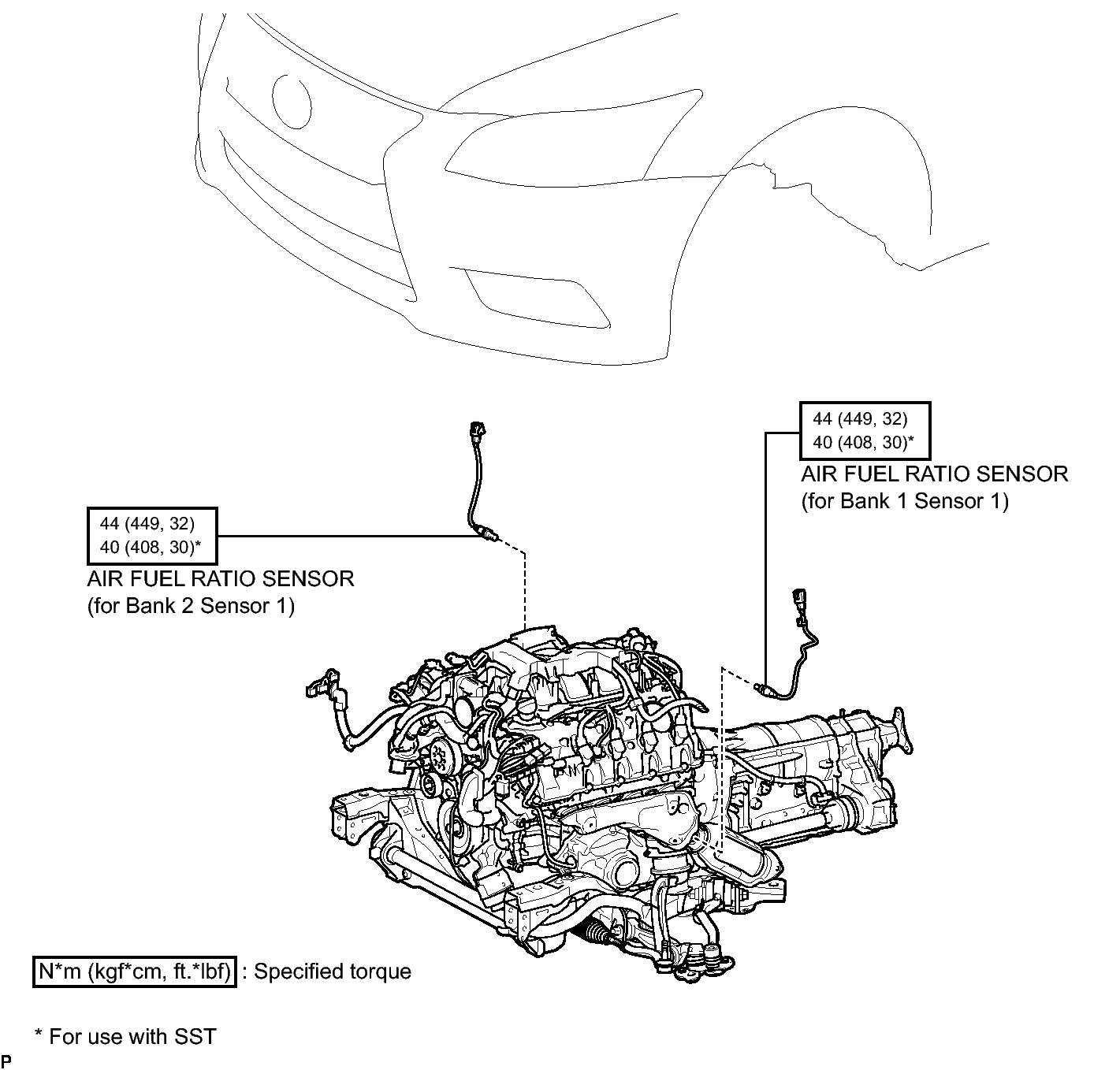

Fig 1: Identifying Air Fuel Ratio Sensor (For AWD) Replacement Components With Torque Specifications
GTY412379Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
