Camshaft Timing Control Motor
›
Components [09/2012 - ]
›
Illustration
Components [09/2012 - ]: Illustration

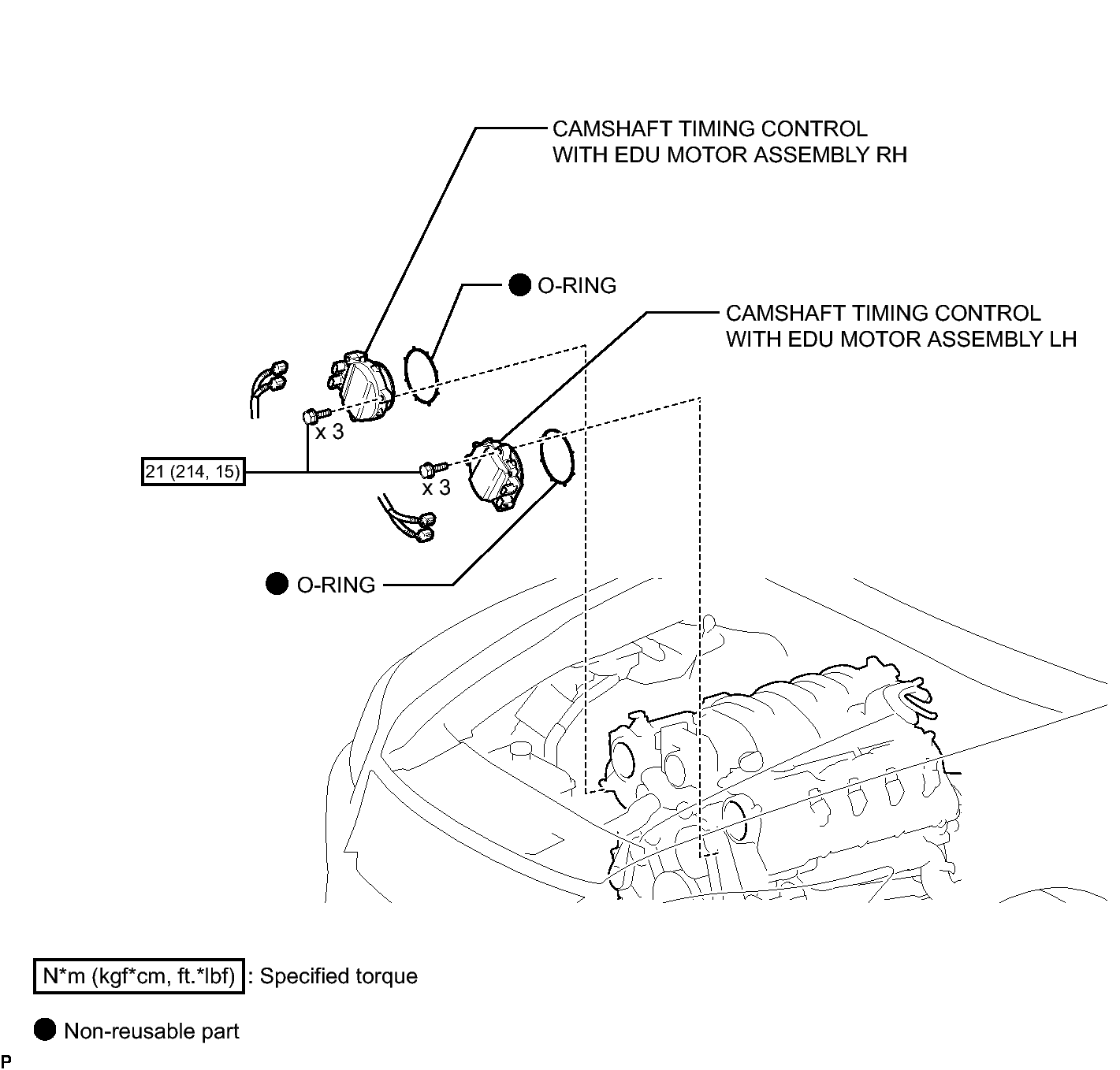

Fig 1: Identifying Camshaft Timing Control Motor Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
