Components [09/2012 - ]: Illustration

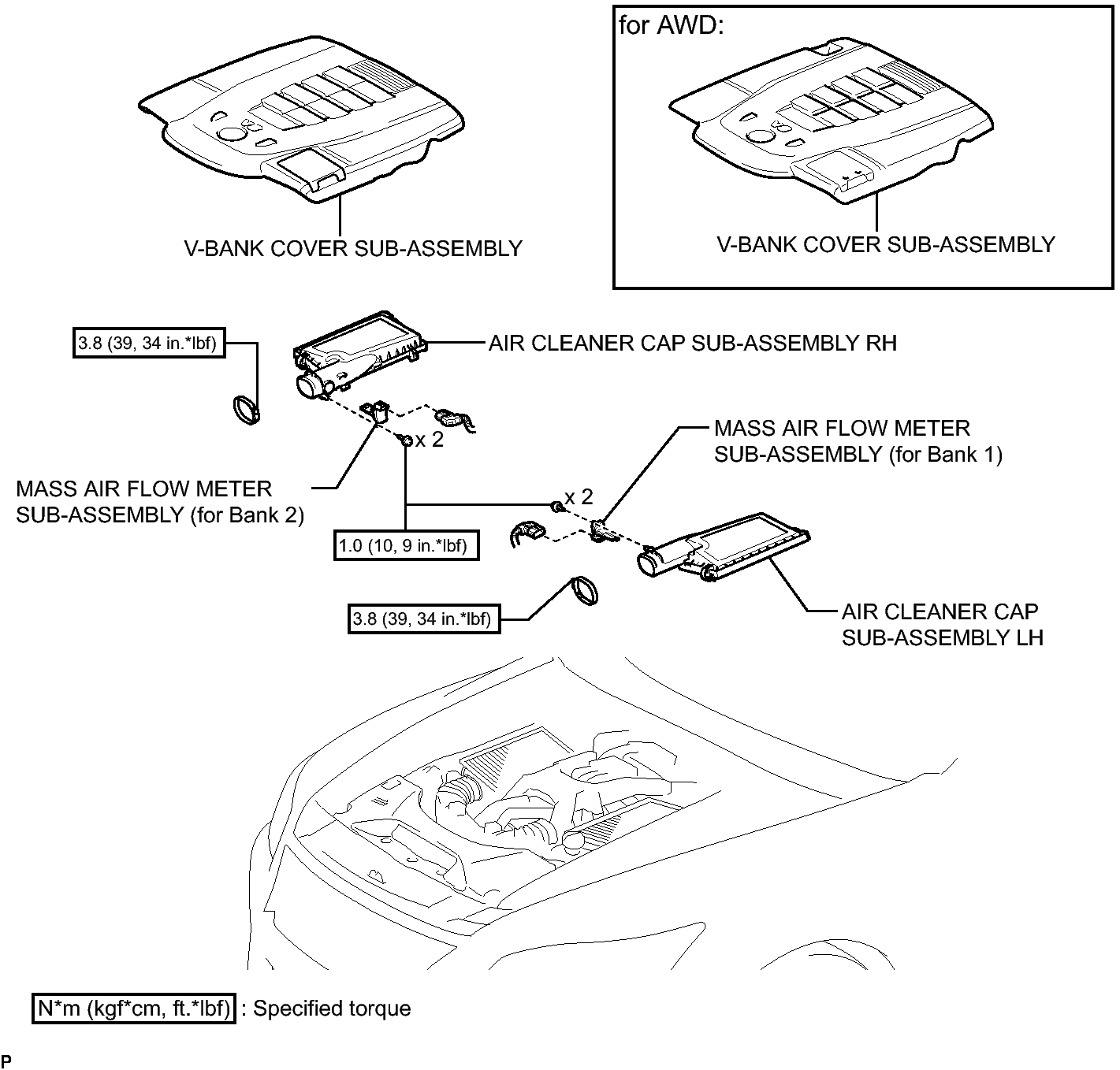

Fig 1: Identifying Mass Air Flow Meter Replacement Components With Torque Specifications
GTY417802Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
