Brake Control System (Service Information)
›
Skid Control Ecu
›
Components [09/2012 - ]
›
Illustration
Components [09/2012 - ]: Illustration
Fig 1: Identifying Skid Control ECU Replacement Components (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

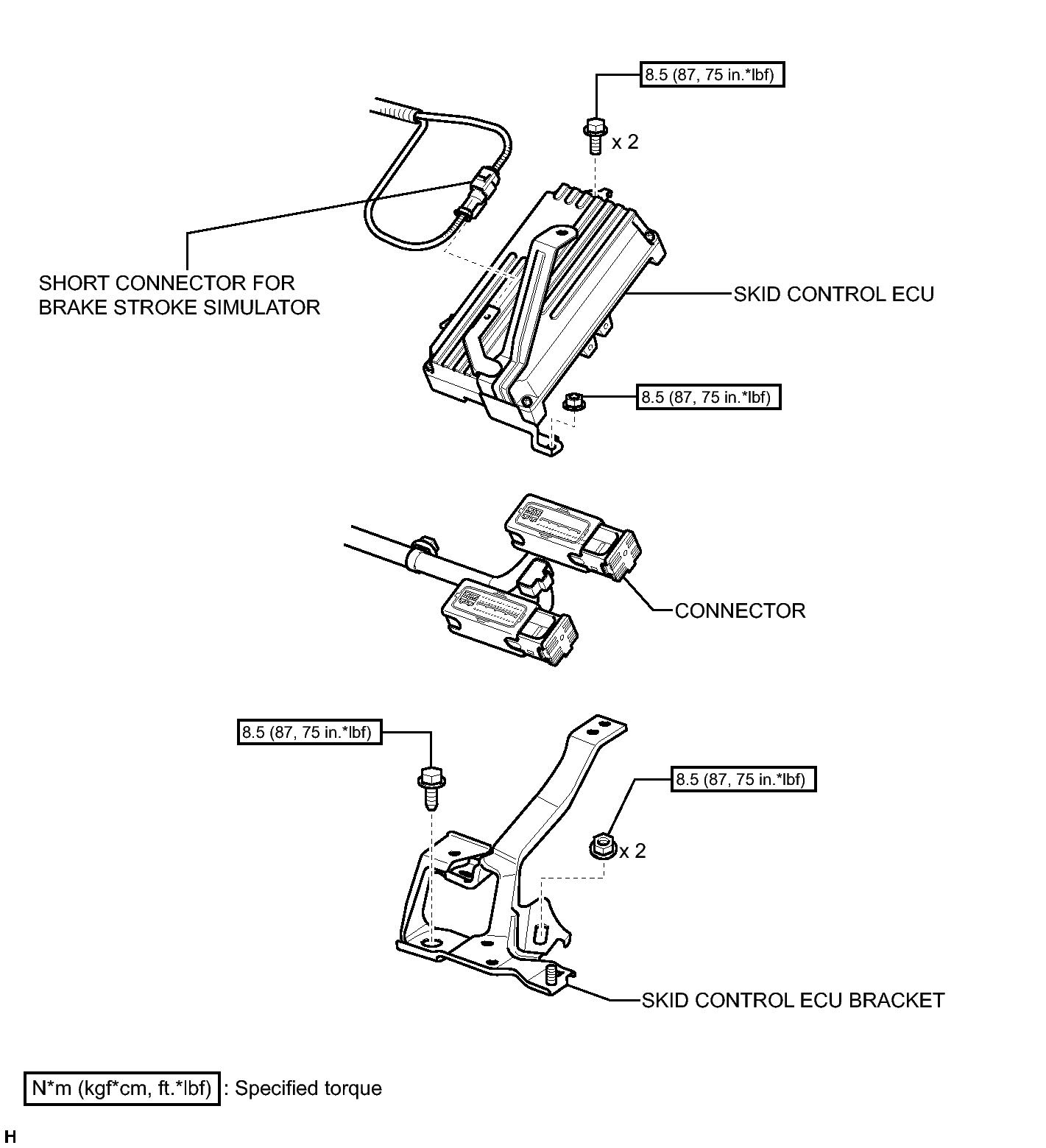

Fig 1: Identifying Skid Control ECU Replacement Components With Torque Specifications (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
