Components [09/2012 - ]: Illustration

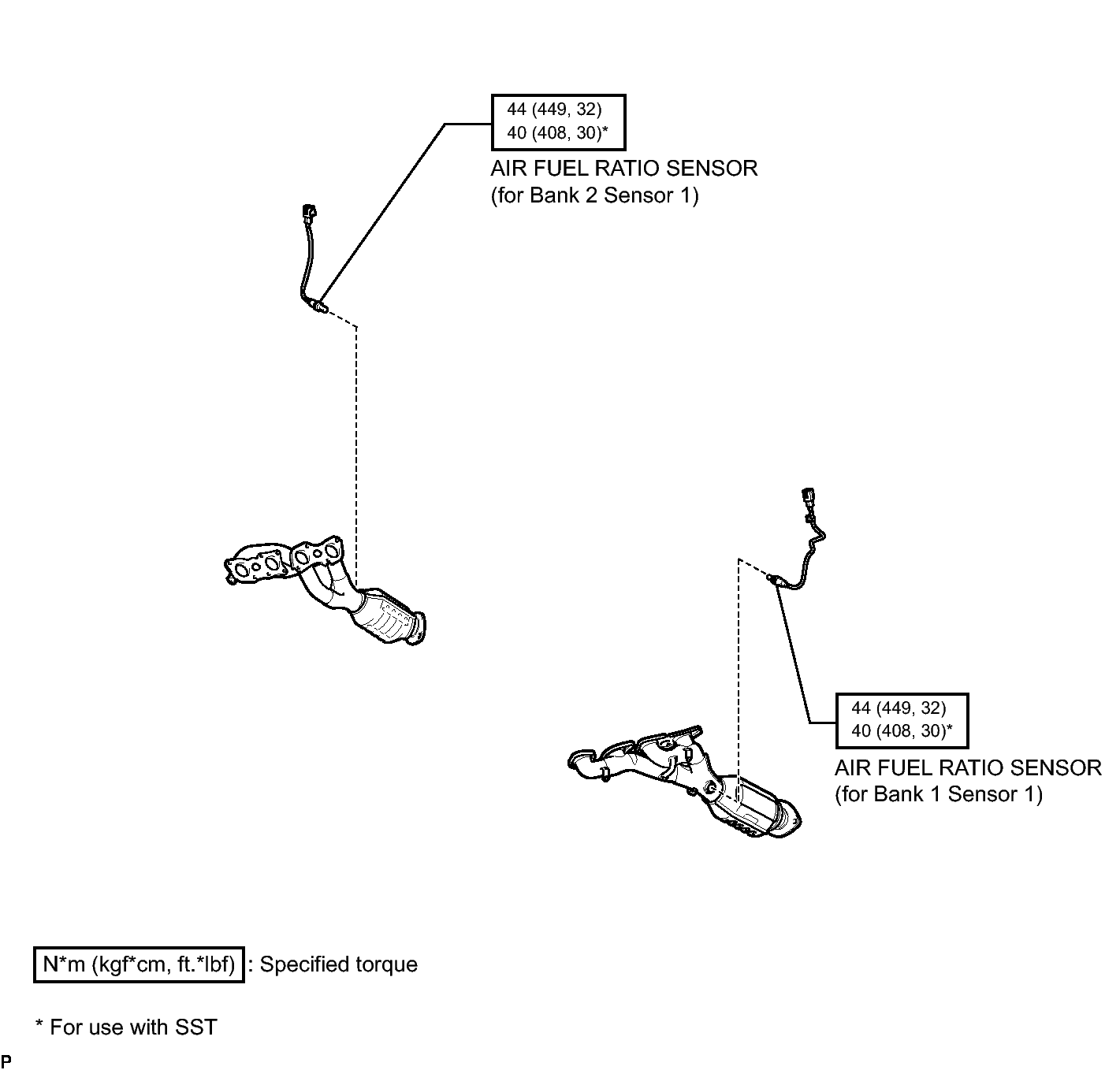

Fig 1: Air Fuel Ratio Sensor (For 2WD) Replacement Components With Torque Specifications
GTY416485Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
